Radiant.X White

Ref.: MR-033EAN: 3700755601060

From the Radiant.X range, this full-tower case takes ATX, Micro ATX and Mini-ITX motherboards. It comes with four 140 mm ARGB fans pre-installed (1 at the rear and 3 on the side). It supports a graphics card up to 455 mm, a CPU air cooler up to 185 mm and an AIO radiator up to 420 mm. Its chassis is made of steel and tempered glass, with a glass side panel.

Colours

The Radiant.X White draws a full tower in glass

A 63.7-litre volume, with tempered glass at the front and on the left side, organising an ATX build with the precision of a blueprint: power supply at the bottom, four 140 mm ARGB fans along its lines, motherboard at the centre.

Radiant.X White full-tower PC case seen at a three-quarter angle, glass panels, white interior and ARGB fans

ATX case: one volume, three zones

525 mm high, 245 mm wide, 495 mm deep: a clean-cut box where every zone has its function.

At the bottom, theATX power supply, up to 220 mm long, sits under a shroud. In the middle, an ATX, Micro ATX or Mini-ITXmotherboard. Against the right side, a column of three 140 mm fans.

The steel chassis frames two tempered glass faces, the front and the left side. The front panel and the right side panel come off for assembly.

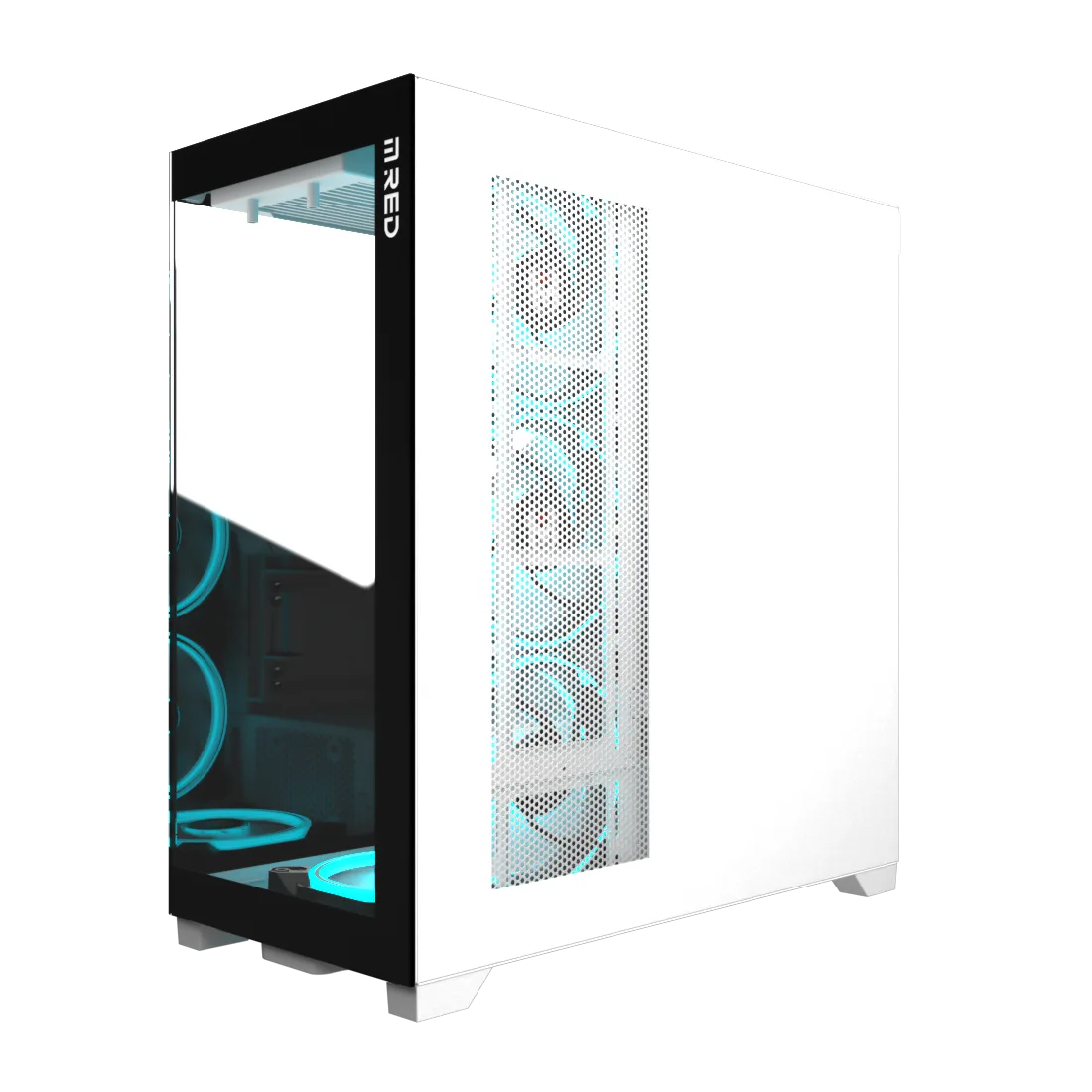

Radiant.X White seen at a three-quarter angle from the right, white body and black glass edge

Perforated top, vented side, rear panel: the case in detail

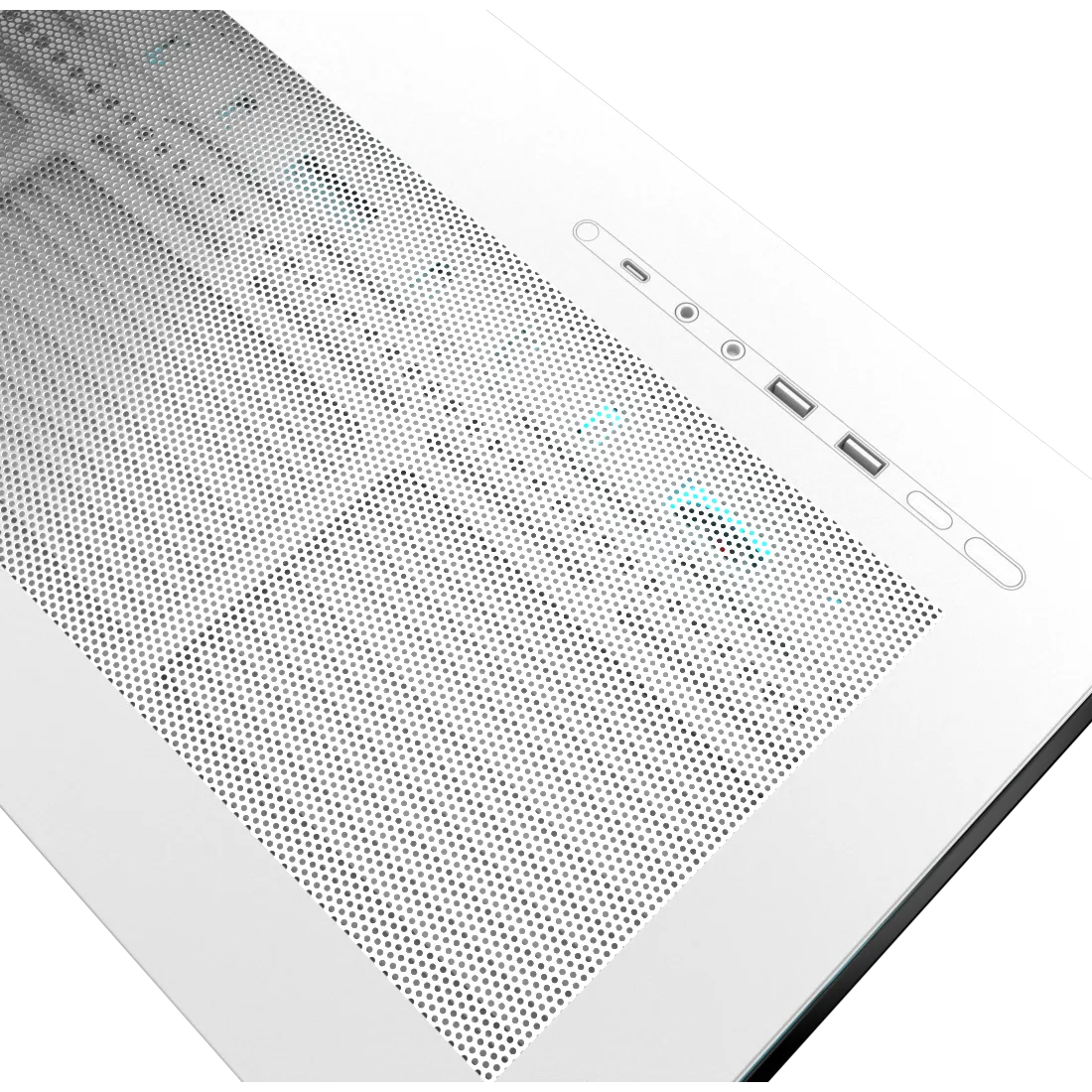

On top, a pattern of perforations edged by the connectors: USB Type-C 3.2 Gen 2, two USB 3.0, headphone and microphone. On the right side, a perforated strip in front of the three fans. At the rear, the 140 mm fan above the eight expansion slots.

  • Close-up of the Radiant.X White perforated top and its USB and audio connectors
  • Close-up of the perforated strip on the right side of the Radiant.X White, fans behind
  • Close-up of the Radiant.X White rear: 140 mm fan and expansion slots

Cooling: airflow follows the case layout

Four 140 mm ARGB fans come preinstalled: three lined up on the right side, one at the rear. Their layout echoes the geometry of the case.

Two positions take a 420 mm AIO watercooling radiator : the top, which can also take three 140 mm fans, or the side. The rear takes a 140 mm radiator.

The bottom takes 120 or 140 mm fans, protected by a dust filter.

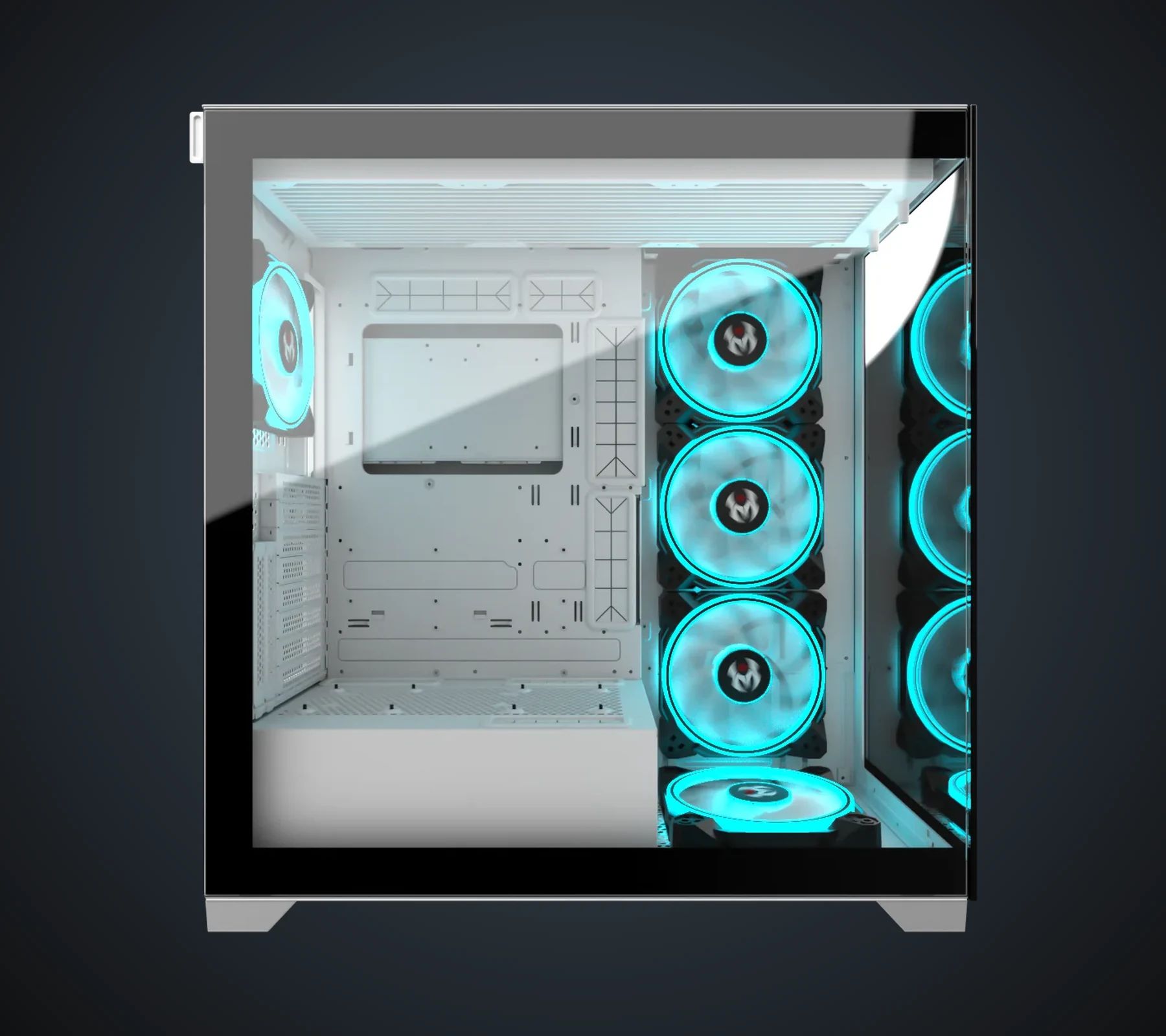

Glass side of the Radiant.X White, with power supply shroud and ARGB fans visible

A 63.7-litre full tower, in three elevations

The glass front, the right side panel with its perforated strip, the rear face: three elevations of a single 525 × 245 × 495 mm volume, with crisp edges.

Front, right side and rear of the Radiant.X White at the same scale

Eight expansion slots and vertical graphics card

Eight expansion slots at the rear, and a graphics card up to 455 mm, horizontally or vertically.

Mounted vertically, the graphics card can be up to 83 mm thick. In both positions, it has 455 mm of length.

On the processor side, a CPU cooler up to 185 mm tall. The Radiant.X White is covered by a two-year commercial warranty, and comes with its M.RED cover.

Rear of the Radiant.X White, expansion slots

Gallery

  • Radiant.X White seen from the front three-quarter angle

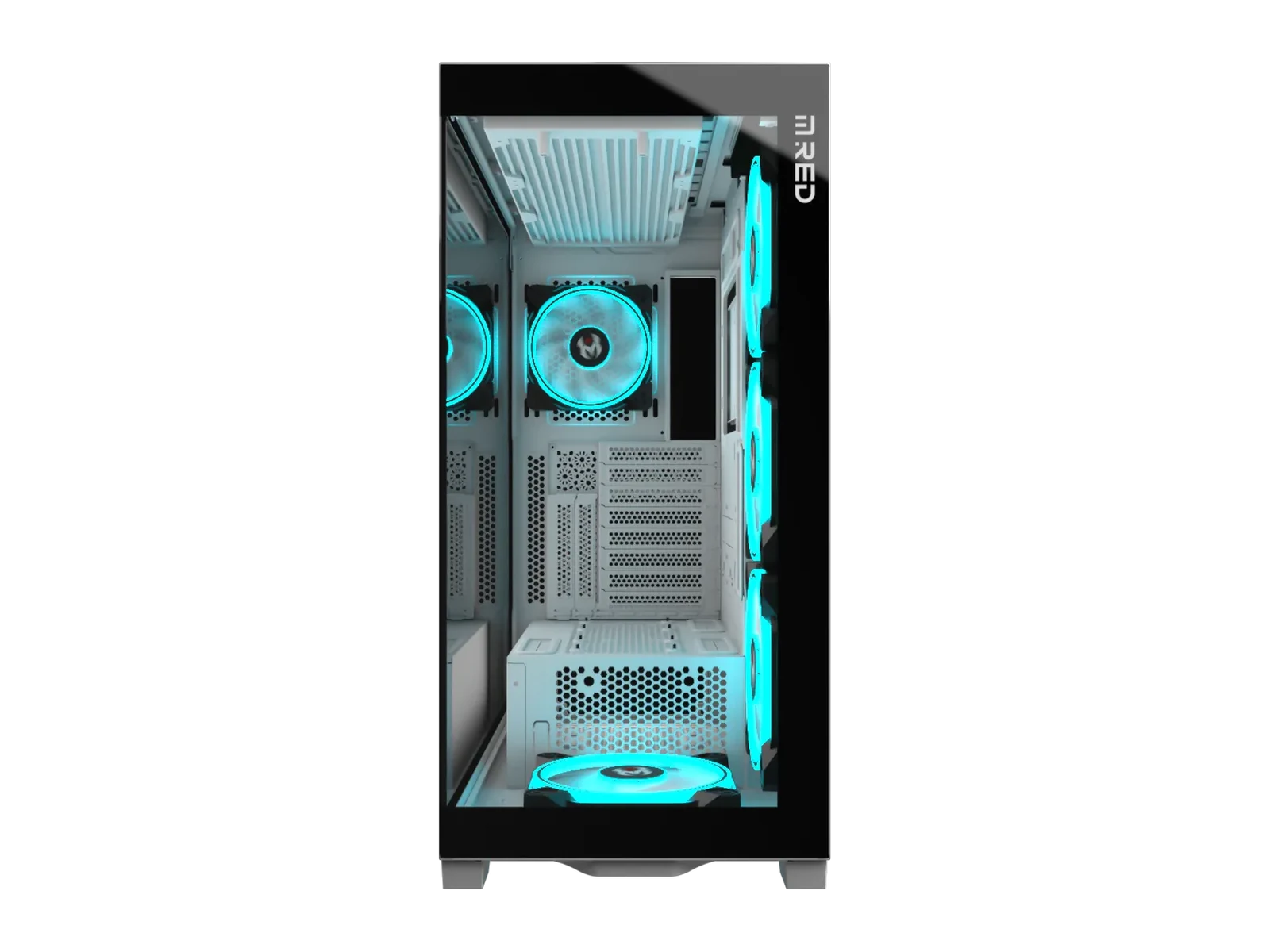

  • Glass front panel of the Radiant.X White
  • Glass side panel of the Radiant.X White, white interior

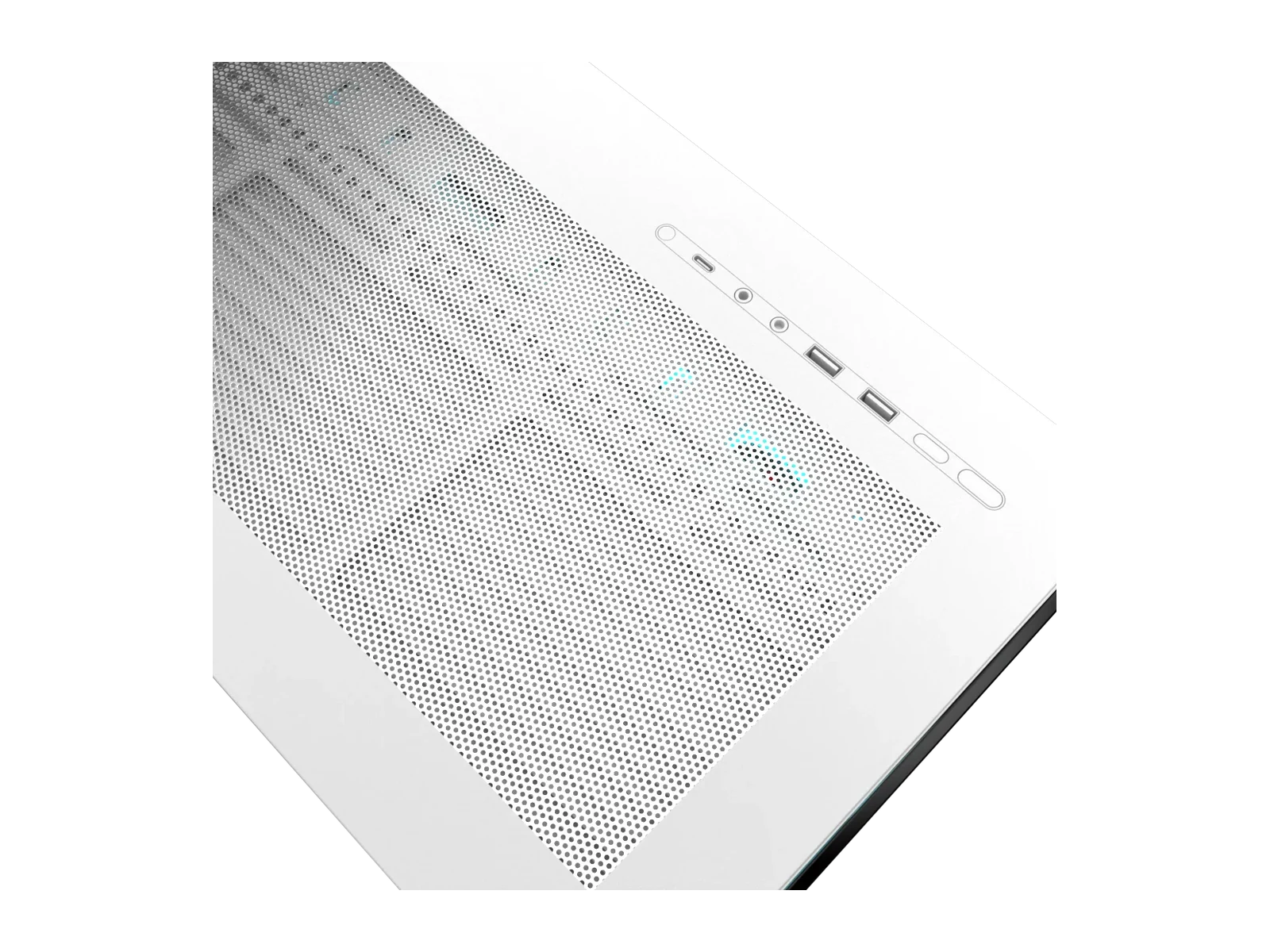

  • Perforated top of the Radiant.X White and its ports
  • Radiant.X White seen at a three-quarter angle from the right
  • Right side of the Radiant.X White and its perforated strip

References1

Serie Model
Radiant.X

Dimensions & Weight8

Height
525 mm
Width
245 mm
Length
495 mm
Volume
63.67 L
Box height
583 mm
Box width
336 mm
Box length
580 mm
Gross volume
113.62 L

Design16

Usage
Gaming
Form Factor
Full Tower
Color
White
Raw Materials
Steel, Tempered Glass
Mred Cover
Yes
Window Right Side Panel
No
Window Left Side Panel
Yes
Window Raw Material
Tempered Glass
LED Lights
Yes
Motherboard LED Compatibility Brands
No
ARGB Compatibility
No
Side Bar LED Qty
No
LED Controler
No
LED Controler Operation Mode
No
Controler IRDA Remote Control
No
Front panel wireless connectors
No

Conception7

Dust Filters Qty
1
Top Dust Filter
No
Front Dust Filter
No
Bottom Dust Filter
Yes
Removable Front Panel
Yes
Replaceable Front Panel
No
Removable Right Side Panel
Yes

Compatibility & Clearance10

Clearance Max. CPU Cooler
185 mm
Motherboard Support
ATX, Micro ATX, Mini-ITX
Clearance Max. Horizontal Graphic Card
455 mm
Vertical VGA Extension Slots
Yes
Clearance Max. Vertical Graphic Card
455
Thickness Max. carte Vertical Graphic Card
83
Front Fan and Radiator Clearance
No
Top Fan and Radiator Clearance
60 mm
Supported PSU Type
ATX
PSU Max Length
220 mm

Cooling10

Pre-Installed Fans - Side
3*140 ARGB
Pre-Installed Fans - Rear
1*140 ARGB
Fan Support - Top
3*140
Fan Support - Side
3*140
Fan Support - Bottom
1*140 + 2*120
Fan Support - Rear
1*140
Watercooling System Support
Yes
Radiator Support - Top
420
Radiator Support - Side
420
Radiator Support - Rear
140

Extension slots6

Horizontal PCI Slot Qty
8
Vertical PCI Slot Qty
8
Horizontal VGA support
Yes
2,5" Drive Bays Qty
7
3,5" Drive Bays Qty
7
HDD removable rack
0

Connectivity7

Connectors Location
Top
USB 2.0
0
USB 3.0
2
USB 3.2 Gen 2 Type-C
1
3.5mm Headset Jack (Audio+Mic)
0
3.5mm Headset Jack (Audio)
1
3.5mm Headset Jack (Mic)
1

Warranty & Docs1

Commercial Warranty
2 années
