Silent Force
From the Force range, this mid-tower case takes ATX, Micro ATX and Mini-ITX motherboards. Airflow relies on two pre-installed 120 mm fans (1 at the front and 1 at the rear). It supports a graphics card up to 350 mm, a CPU air cooler up to 167 mm and an AIO radiator up to 360 mm. In terms of build, the chassis is made of steel, ABS and foam.

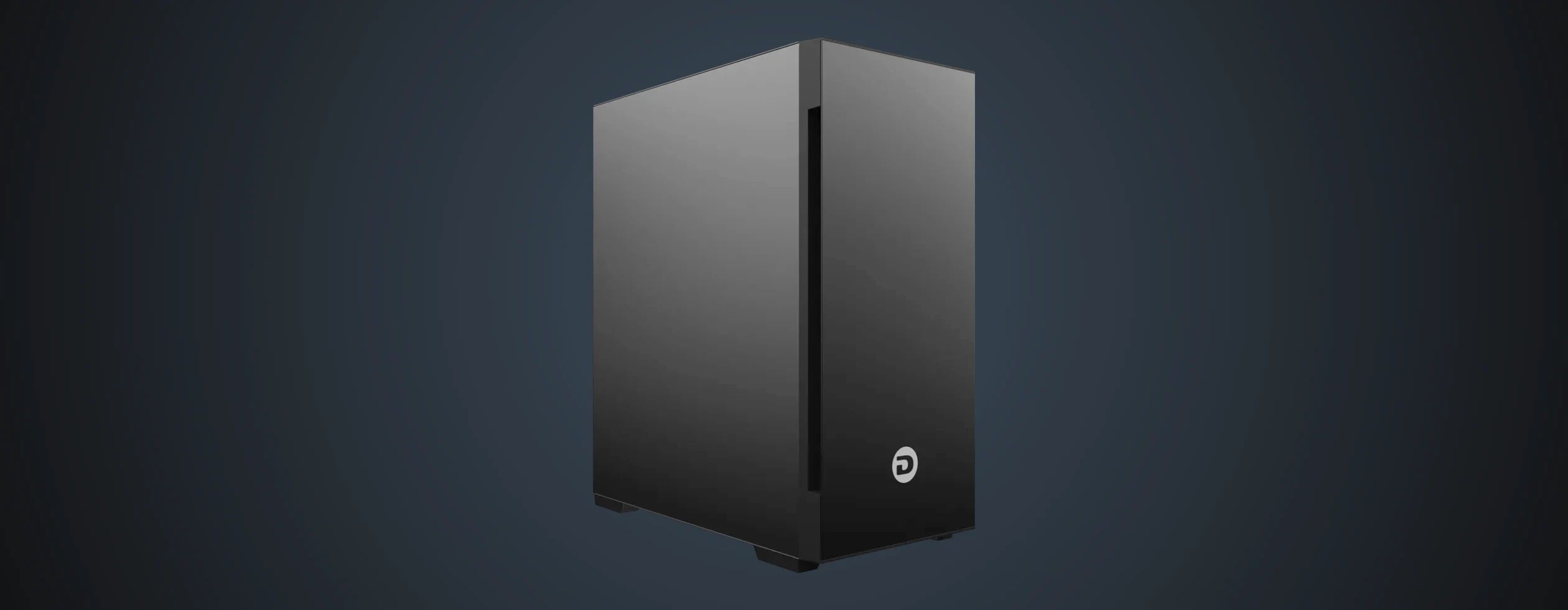

The Silent Force keeps a low profile
Solid panels, no glass, no lighting: this mid tower case leaves all the room to what it houses. Inside, an ATX, Micro ATX or Mini-ITX motherboard, and up to a 360 mm AIO liquid cooling radiator.
A mid-tower case lined with foam

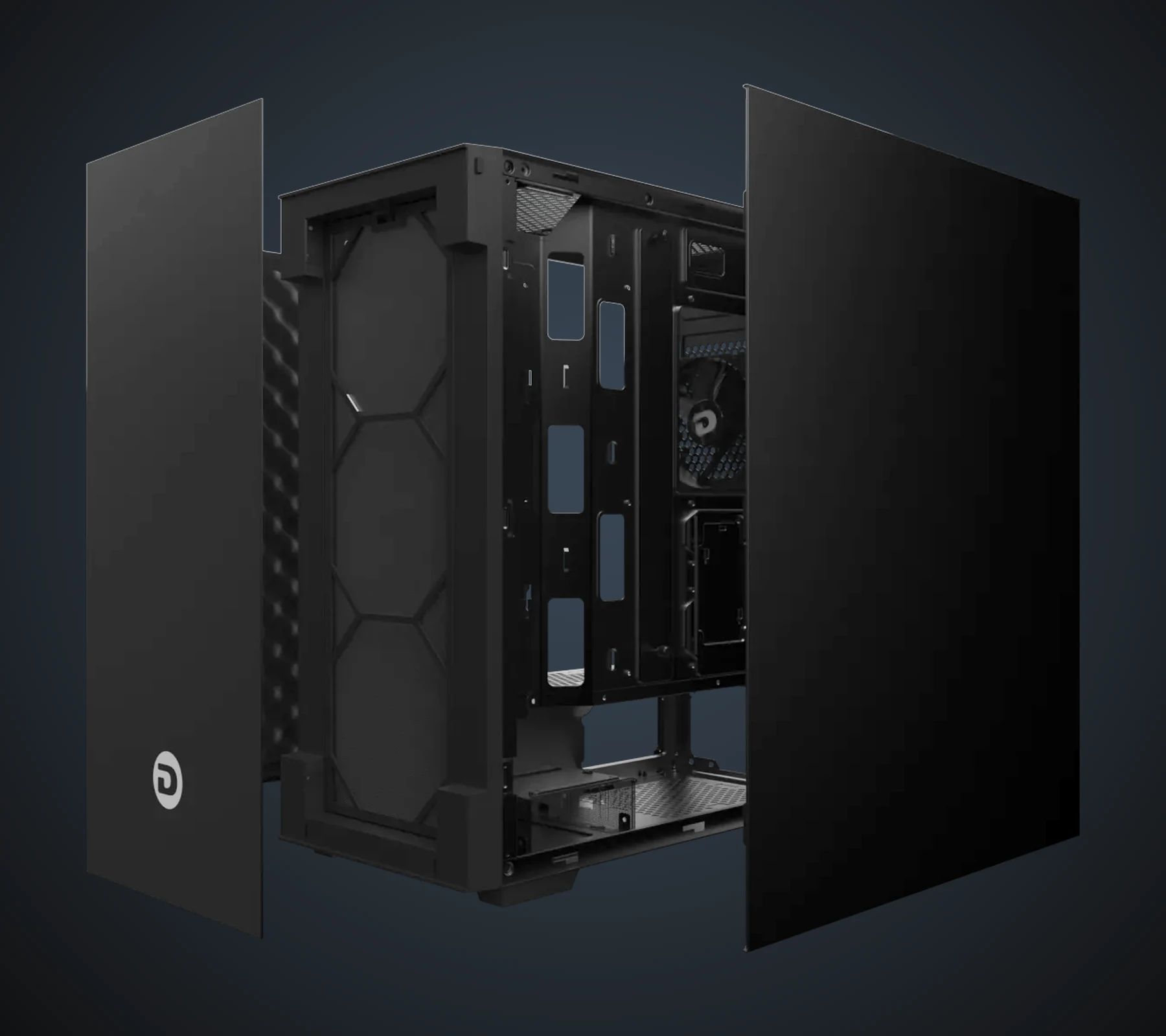

The front panel and the right side panel come off; inside, the panels are lined with open-cell foam.
The chassis combines steel, ABS and foam. It takes an ATX, Micro ATX or Mini-ITXmotherboard, and seven expansion slots.
Storage is split between four 2.5-inch bays and two 3.5-inch bays, one of them a removable hard drive cage.
Three dust filters watch over the front, the top and the bottom.
Connectors, foam and ventilation, up close

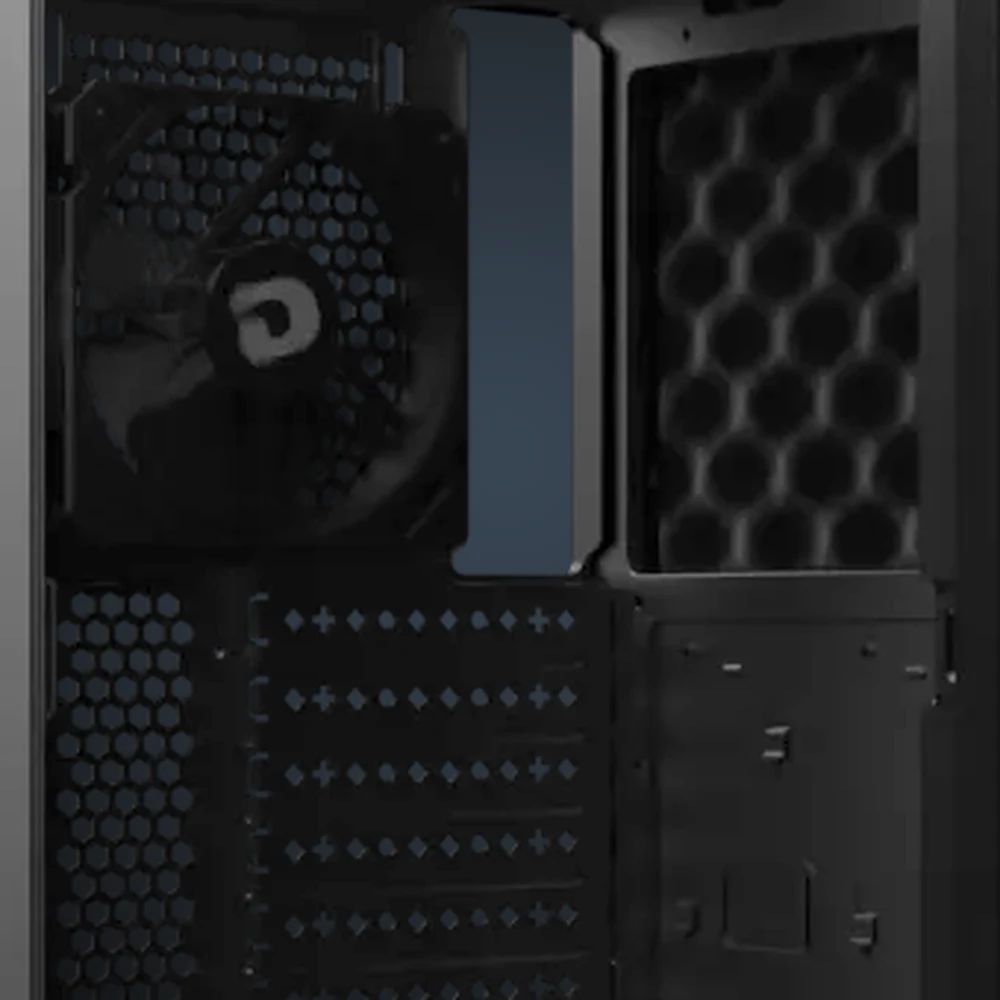

On the top, next to the grille, two USB 3.0 ports, one USB 2.0 port, a headphone jack and a microphone jack. Against the side panels, honeycomb foam. At the rear, a preinstalled 120 mm PWM fan, above the seven expansion slots.
Cooling: a 360 mm AIO at the front
Two 120 mm PWM fans come preinstalled, one at the front and one at the rear. The front takes up to three, the top two 120 or 140 mm fans, the bottom two 120 mm fans.
For watercooling, the front takes a 240 or 360 mm AIO radiator, the top a 240 or 280 mm radiator, the rear a 120 mm radiator. For air cooling, a CPU cooler up to 167 mm tall fits.
A mid-tower format with solid panels

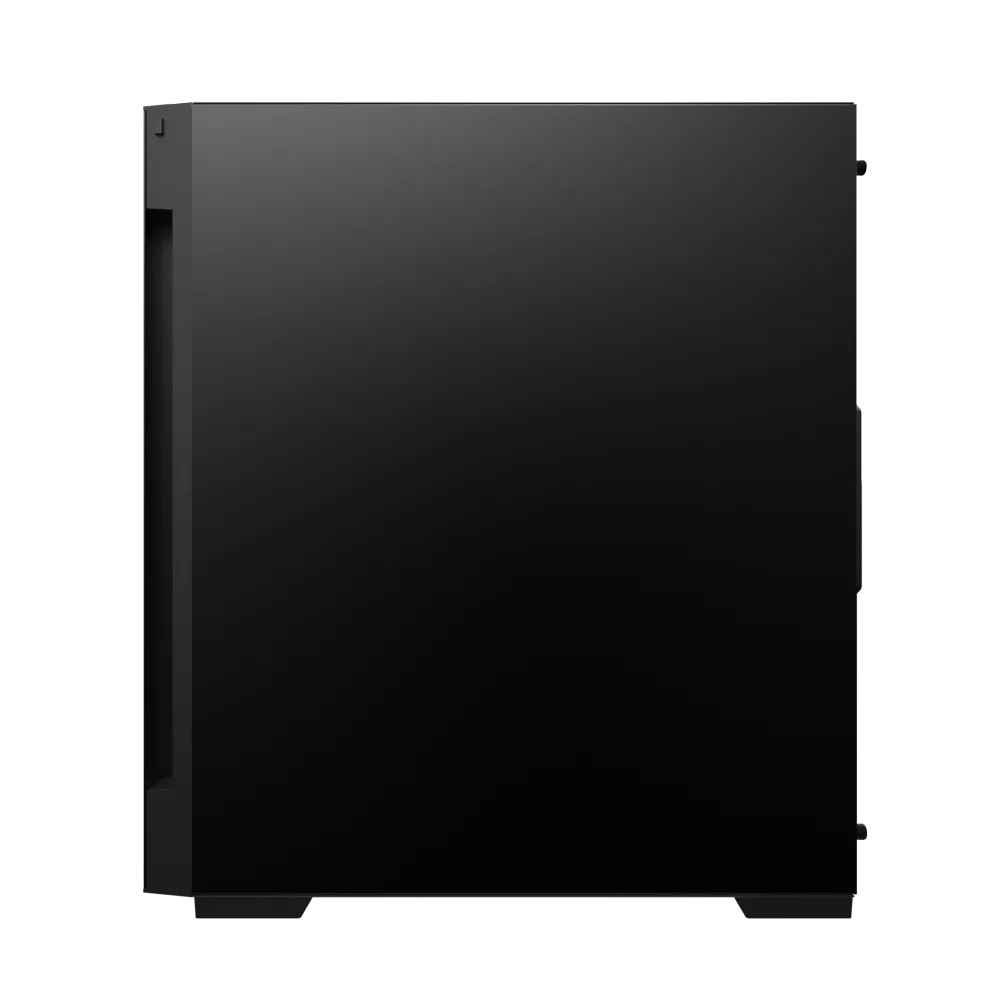

495 mm high, 215 mm wide, 440 mm deep, 7.3 kg empty. Smooth panels, with no glass and no lighting, that blend into a room rather than dominate it.
Graphics card up to 350 mm, ATX power supply
A complete gaming build, in a case that doesn't put it on show.
Graphics card up to 350 mm, CPU cooler up to 167 mm, ATX power supply up to 180 mm long.
The graphics card can also be mounted vertically, with a riser cable (not supplied). The Silent Force is covered by a two-year commercial warranty.
Gallery
Tech specs
Datasheet (PDF)References1
- Serie Model
- Force
Dimensions & Weight10
- Height
- 495 mm
- Width
- 215 mm
- Length
- 440 mm
- Net Weight
- 7.3 Kg
- Volume
- 46.83 L
- Box height
- 552 mm
- Box width
- 287 mm
- Box length
- 505 mm
- Gross weight
- 8.42 Kg
- Gross volume
- 80 L
Design16
- Usage
- Gaming
- Form Factor
- Mid Tower
- Color
- Black
- Raw Materials
- Steel, ABS Plastic, Foam
- Mred Cover
- No
- Window Right Side Panel
- No
- Window Left Side Panel
- No
- Window Raw Material
- No
- LED Lights
- No
- Motherboard LED Compatibility Brands
- No
- ARGB Compatibility
- No
- Side Bar LED Qty
- No
- LED Controler
- No
- LED Controler Operation Mode
- No
- Controler IRDA Remote Control
- No
- Front panel wireless connectors
- No
Conception7
- Dust Filters Qty
- 3
- Top Dust Filter
- Yes
- Front Dust Filter
- Yes
- Bottom Dust Filter
- Yes
- Removable Front Panel
- Yes
- Replaceable Front Panel
- No
- Removable Right Side Panel
- Yes
Compatibility & Clearance10
- Clearance Max. CPU Cooler
- 167 mm
- Motherboard Support
- ATX, MicroATX, Mini-ITX
- Clearance Max. Horizontal Graphic Card
- 350 mm
- Vertical VGA Extension Slots
- No
- Clearance Max. Vertical Graphic Card
- Non
- Thickness Max. carte Vertical Graphic Card
- Non
- Front Fan and Radiator Clearance
- 52 mm
- Top Fan and Radiator Clearance
- 52 mm
- Supported PSU Type
- ATX
- PSU Max Length
- 180 mm
Cooling10
- Pre-Installed Fans - Front
- 1*120 PWM
- Pre-Installed Fans - Rear
- 1*120 PWM
- Fan Support - Front
- 3*120
- Fan Support - Top
- 2*120, 2*140
- Fan Support - Bottom
- 2*120
- Fan Support - Rear
- 1*120
- Watercooling System Support
- Yes
- Radiator Support - Front
- 360, 240
- Radiator Support - Top
- 240, 280
- Radiator Support - Rear
- 120
Extension slots5
- Vertical PCI Slot Qty
- 7
- Horizontal VGA support
- Yes
- 2,5" Drive Bays Qty
- 4
- 3,5" Drive Bays Qty
- 2
- HDD removable rack
- 1
Connectivity7
- Connectors Location
- Top
- USB 2.0
- 1
- USB 3.0
- 2
- USB 3.2 Gen 2 Type-C
- 0
- 3.5mm Headset Jack (Audio+Mic)
- 0
- 3.5mm Headset Jack (Audio)
- 1
- 3.5mm Headset Jack (Mic)
- 1
Warranty & Docs1
- Commercial Warranty
- 2 années
