Black Force
This mid-tower case takes ATX, Micro ATX and Mini-ITX motherboards. It supports a graphics card up to 360 mm and a CPU air cooler up to 155 mm. The 500 W ATX power supply is included with the case. Its chassis is made of ABS and metal.
The Black Force builds without fuss
A mid tower case in ABS and metal, supplied with its 500 W ATX power supply, for an ATX, Micro ATX or Mini-ITX motherboard. Seven expansion slots, five drive bays: enough to build an office machine or a first gaming setup.
ATX motherboard: drop it in, screw it down, cable it up
The front panel and the right side panel come off: the interior is within reach.
First the motherboard: ATX, Micro ATX or Mini-ITX. Behind it, seven expansion slots await the graphics card and add-in cards.
Then storage: three 3.5-inch bays for hard drives, two 2.5-inch bays for SSDs.
Finally the power supply: it is included, ATX format, 500 W. It sits at the top, at the rear of the case.
Case connectors and vents, up close

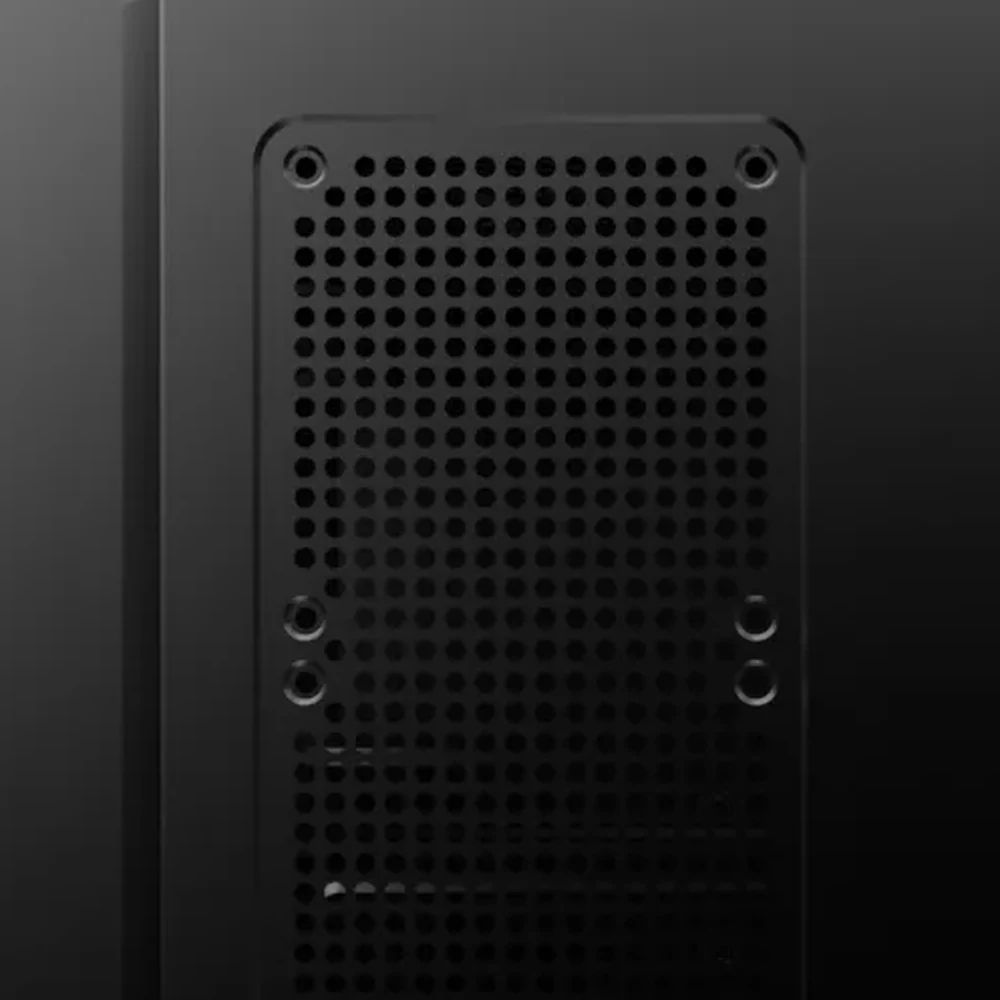

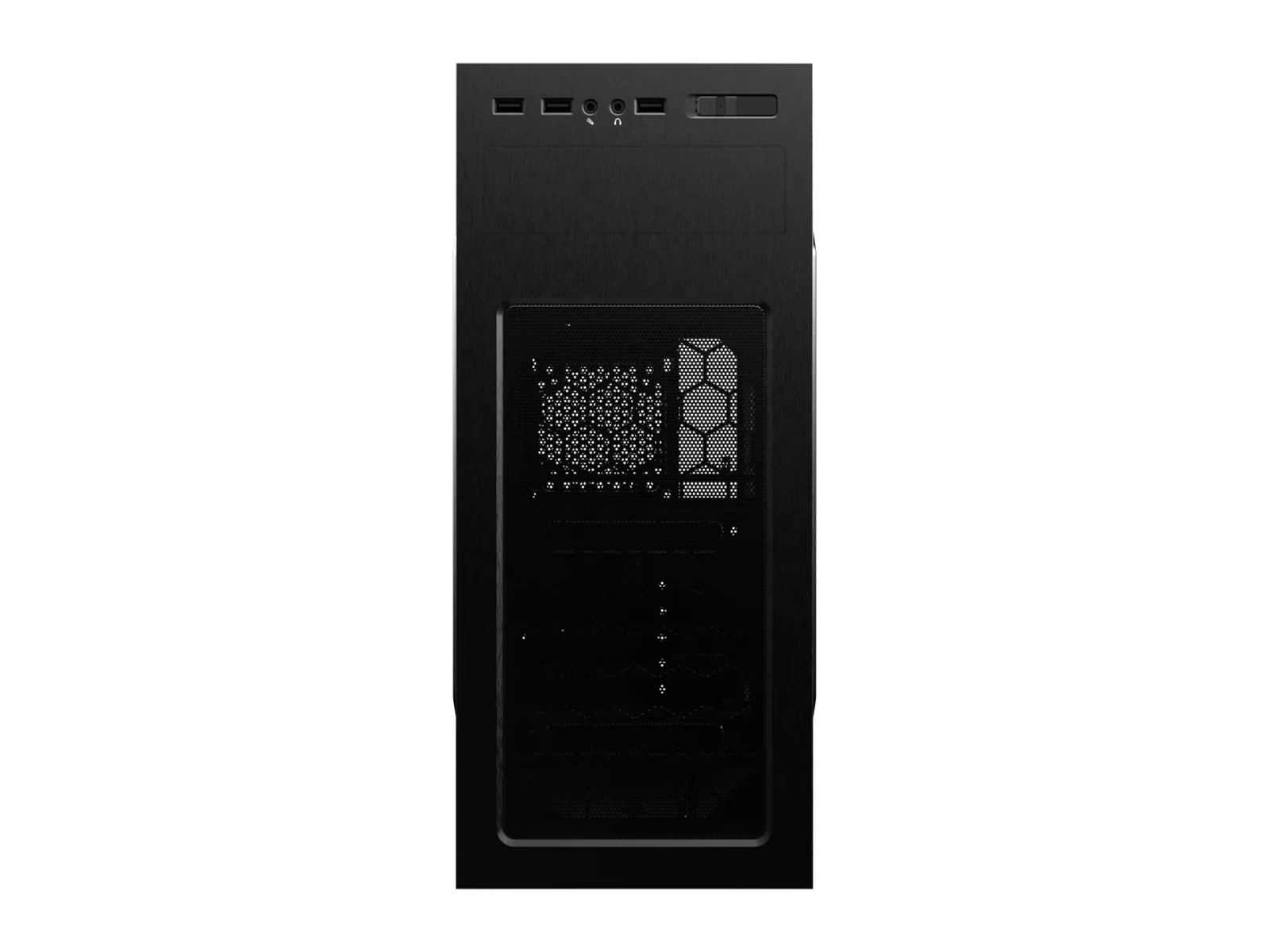

At the top of the front panel, two USB 3.0 ports, one USB 2.0 port, a headphone jack and a microphone jack. Lower down, a perforated grille in front of the two 120 mm fan mounts. On the left side, a perforated area designed for two 120 mm fans.
Air cooling: five fan mounts
Fans are optional: the case is ready to take them. Two at the front and two on the left side, in 120 mm, plus one at the rear, in 120 or 80 mm.
For the processor, a CPU cooler up to 155 mm tall. The Black Force is not designed for watercooling: it sticks to air cooling.

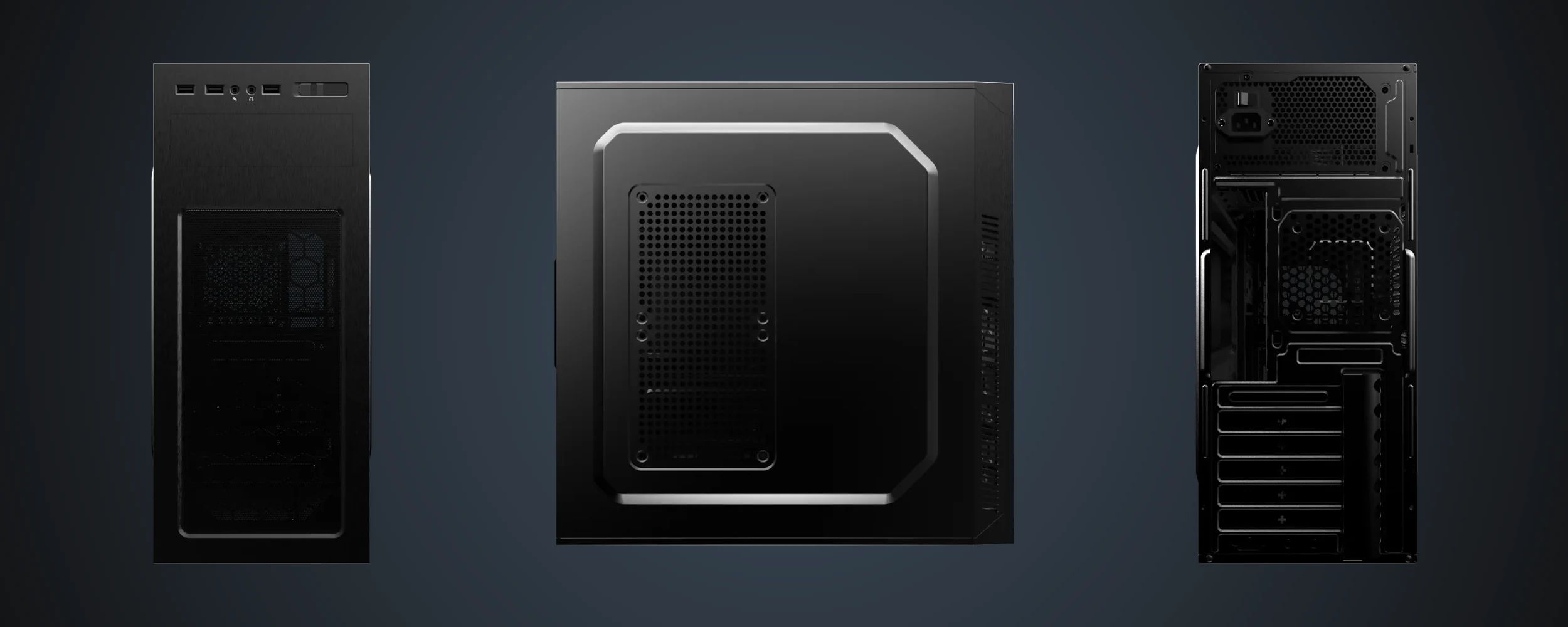

Mid tower format: 416 × 200 × 418 mm
416 mm high, 200 mm wide, 418 mm deep, 4.1 kg empty. It fits under the desk or beside the screen, with its connectors always at the top of the front panel.
Graphics card up to 360 mm: the measurements to check
The power supply is included: before ordering the rest, two measurements to keep at hand.
Graphics card: up to 360 mm long. CPU cooler: up to 155 mm tall.
Intended use: office work and entry-level gaming. No glass panel, no lighting, a black chassis, and a two-year commercial warranty.
Gallery
Tech specs
Datasheet (PDF)References1
- Serie Model
- Black Force
Dimensions & Weight10
- Height
- 416 mm
- Width
- 200 mm
- Length
- 418 mm
- Net Weight
- 4.1 Kg
- Volume
- 34.78 L
- Box height
- 457 mm
- Box width
- 235 mm
- Box length
- 516 mm
- Gross weight
- 5 Kg
- Gross volume
- 55.42 L
Design16
- Usage
- Office /Entry level Gaming
- Form Factor
- Mid Tower
- Color
- Black
- Raw Materials
- ABS plastic/ metal
- Mred Cover
- No
- Window Right Side Panel
- No
- Window Left Side Panel
- No
- Window Raw Material
- No
- LED Lights
- No
- Motherboard LED Compatibility Brands
- No
- ARGB Compatibility
- No
- Side Bar LED Qty
- No
- LED Controler
- No
- LED Controler Operation Mode
- No
- Controler IRDA Remote Control
- No
- Front panel wireless connectors
- No
Conception6
- Top Dust Filter
- No
- Front Dust Filter
- No
- Bottom Dust Filter
- No
- Removable Front Panel
- Yes
- Replaceable Front Panel
- Yes
- Removable Right Side Panel
- Yes
Compatibility & Clearance10
- Clearance Max. CPU Cooler
- 155 mm
- Motherboard Support
- ATX, Micro ATX, Mini ITX
- Clearance Max. Horizontal Graphic Card
- 360 mm
- Vertical VGA Extension Slots
- No
- Clearance Max. Vertical Graphic Card
- 360
- Thickness Max. carte Vertical Graphic Card
- No
- Front Fan and Radiator Clearance
- No
- Top Fan and Radiator Clearance
- No
- Supported PSU Type
- ATX, 500 W included
- PSU Max Length
- 180 mm
Cooling7
- Pre-Installed Fans - Front
- 2x120mm (Fan optional)
- Pre-Installed Fans - Side
- Left:2x120mm (Fan optional)
- Pre-Installed Fans - Rear
- 1x80/120mm (Fan optional)
- Fan Support - Front
- 2*120
- Fan Support - Side
- 2*120
- Fan Support - Rear
- 1*120, 1*80
- Watercooling System Support
- No
Extension slots6
- Horizontal PCI Slot Qty
- 7
- Vertical PCI Slot Qty
- 0
- Horizontal VGA support
- 0
- 2,5" Drive Bays Qty
- 2
- 3,5" Drive Bays Qty
- 3
- HDD removable rack
- 0
Connectivity7
- Connectors Location
- Top
- USB 2.0
- 1
- USB 3.0
- 2
- USB 3.2 Gen 2 Type-C
- 0
- 3.5mm Headset Jack (Audio+Mic)
- 0
- 3.5mm Headset Jack (Audio)
- 1
- 3.5mm Headset Jack (Mic)
- 1
Warranty & Docs1
- Commercial Warranty
- 2 années
