Radiant.X Black

Ref.: MR-032EAN: 3700755601053

This full-tower case houses a build based on an ATX, Micro ATX or Mini-ITX motherboard. For airflow, four 140 mm ARGB fans are pre-installed (1 at the rear and 3 on the side). It supports a graphics card up to 455 mm, a CPU air cooler up to 185 mm and an AIO radiator up to 420 mm. Steel and tempered glass chassis, with a glass side panel.

Colours

The Radiant.X Black opens up the space of a full tower

A 63.7-litre full tower PC case, with tempered glass at the front and on the left side, supplied with four preinstalled 140 mm ARGB fans. An ATX motherboard, a 455 mm graphics card and a 420 mm AIO liquid cooler all fit inside.

Radiant.X Black full-tower PC case seen at a three-quarter angle, glass panel, ARGB fans lit

An ATX full tower built for a high-end configuration

63.7 litres of interior space and eight expansion slots: a base that lets the build step up in power.

The Radiant.X Black takes an ATX, Micro ATX or Mini-ITX motherboard in a steel and tempered glass chassis. At the rear, eight expansion slots leave room for the graphics card and additional cards.

The ATX power supply has 220 mm of length available. The front panel and right side panel come off: the interior opens from two sides for the build.

Glass side of the Radiant.X Black, interior and fans visible through the glass

ARGB fans, USB Type-C, expansion: the details

Three 140 mm ARGB fans lined up on the right side, seen through the glass. On top, one USB Type-C 3.2 Gen 2 port, two USB 3.0 ports and separate headphone and microphone jacks. At the back, eight expansion slots in a row.

  • Close-up of the 140 mm ARGB side fans on the Radiant.X Black
  • Close-up of the Radiant.X Black's top connectors: USB Type-C, USB 3.0, headphone and microphone
  • Close-up of the expansion slots at the rear of the Radiant.X Black

Cooling: a 420 mm AIO, on top or on the side

Four 140 mm ARGB fans come pre-installed: three on the right side, behind its perforated strip, and one at the rear. Your build is cooled from the very first boot.

To go further, the top takes three 140 mm fans or a 420 mm AIO watercooling radiator, and the side panel also accepts a 420 mm radiator, whichever you prefer. The rear takes a 140 mm radiator.

The bottom houses 120 or 140 mm fans, behind a dust filter.

Radiant.X Black seen at three-quarter view from the right, perforated strip in front of the fans

Full tower format: 525 mm high, 63.7 litres

Front, profile and rear at the same scale: 525 mm high, 245 mm wide, 495 mm deep. A full-size full tower, so every component of a high-end build has its place.

Front, side and rear views of the Radiant.X Black at the same scale

Graphics card up to 455 mm, flat or vertical

455 mm of clearance, whether the graphics card is laid flat or mounted vertically.

Mounted vertically, the Radiant.X Black takes a graphics card up to 83 mm thick : it then faces the side glass panel.

The processor, for its part, takes a CPU cooler up to 185 mmtall. The case is covered by a two-year commercial warranty. An M.RED cover is supplied with the case.

Glass front panel of the Radiant.X Black, interior and ARGB fans visible

Gallery

  • Radiant.X Black seen from the front three-quarter view
  • Tempered glass front panel of the Radiant.X Black
  • Glass side of the Radiant.X Black

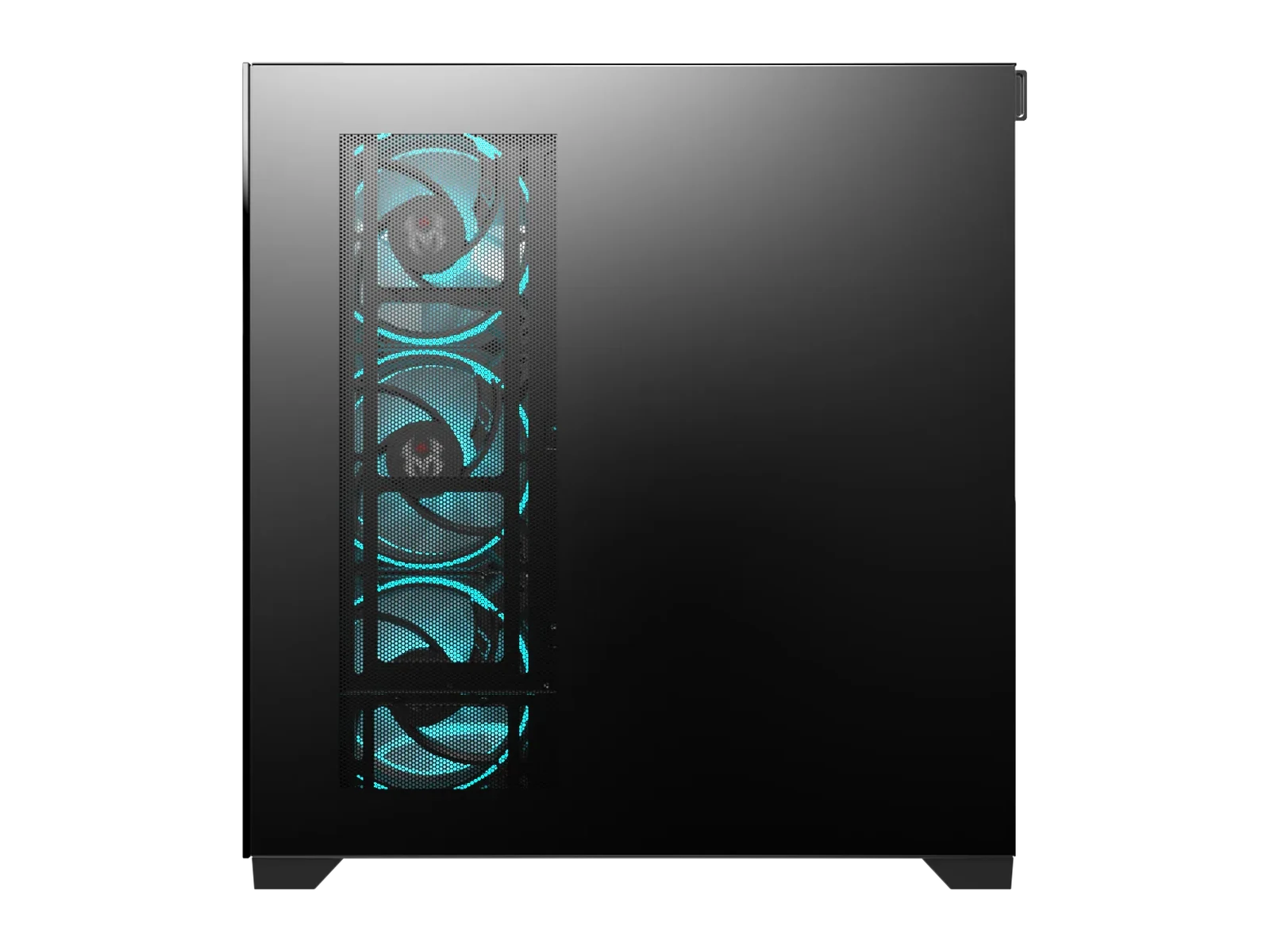

  • Right side panel of the Radiant.X Black and its perforated strip
  • Rear panel of the Radiant.X Black
  • Radiant.X Black seen at a three-quarter angle from the right

References1

Serie Model
Radiant.X

Dimensions & Weight8

Height
525 mm
Width
245 mm
Length
495 mm
Volume
63.67 L
Box height
583 mm
Box width
336 mm
Box length
580 mm
Gross volume
113.62 L

Design16

Usage
Gaming
Form Factor
Full Tower
Color
Black
Raw Materials
Steel, Tempered Glass
Mred Cover
Yes
Window Right Side Panel
No
Window Left Side Panel
Yes
Window Raw Material
Tempered Glass
LED Lights
Yes
Motherboard LED Compatibility Brands
No
ARGB Compatibility
No
Side Bar LED Qty
No
LED Controler
No
LED Controler Operation Mode
No
Controler IRDA Remote Control
No
Front panel wireless connectors
No

Conception7

Dust Filters Qty
1
Top Dust Filter
No
Front Dust Filter
No
Bottom Dust Filter
Yes
Removable Front Panel
Yes
Replaceable Front Panel
No
Removable Right Side Panel
Yes

Compatibility & Clearance10

Clearance Max. CPU Cooler
185 mm
Motherboard Support
ATX, Micro ATX, Mini-ITX
Clearance Max. Horizontal Graphic Card
455 mm
Vertical VGA Extension Slots
Yes
Clearance Max. Vertical Graphic Card
455
Thickness Max. carte Vertical Graphic Card
83
Front Fan and Radiator Clearance
No
Top Fan and Radiator Clearance
60 mm
Supported PSU Type
ATX
PSU Max Length
220 mm

Cooling10

Pre-Installed Fans - Side
3*140 ARGB
Pre-Installed Fans - Rear
1*140 ARGB
Fan Support - Top
3*140
Fan Support - Side
3*140
Fan Support - Bottom
1*140 + 2*120
Fan Support - Rear
1*140
Watercooling System Support
Yes
Radiator Support - Top
420
Radiator Support - Side
420
Radiator Support - Rear
140

Extension slots6

Horizontal PCI Slot Qty
8
Vertical PCI Slot Qty
8
Horizontal VGA support
Yes
2,5" Drive Bays Qty
7
3,5" Drive Bays Qty
7
HDD removable rack
0

Connectivity7

Connectors Location
Top
USB 2.0
0
USB 3.0
2
USB 3.2 Gen 2 Type-C
1
3.5mm Headset Jack (Audio+Mic)
0
3.5mm Headset Jack (Audio)
1
3.5mm Headset Jack (Mic)
1

Warranty & Docs1

Commercial Warranty
2 années
