Mini Crystal Sea Black

Ref.: MR-036EAN: 3700755601091

On the motherboard side, this mid-tower case takes Micro ATX and Mini-ITX formats. For airflow, three 120 mm ARGB fans are pre-installed (1 at the rear and 2 on the side). It can house a graphics card up to 320 mm, a CPU air cooler up to 157 mm and an AIO radiator up to 280 mm. Steel and tempered glass chassis, with a glass side panel.

Colours

The Mini Crystal Sea makes room for seven fans

A 37-litre Micro ATX PC case with a glass panel, fitted with three 120 mm ARGB fans, an LED bar, a controller and its remote. Everything is already there; all that's left is to fit the build inside.

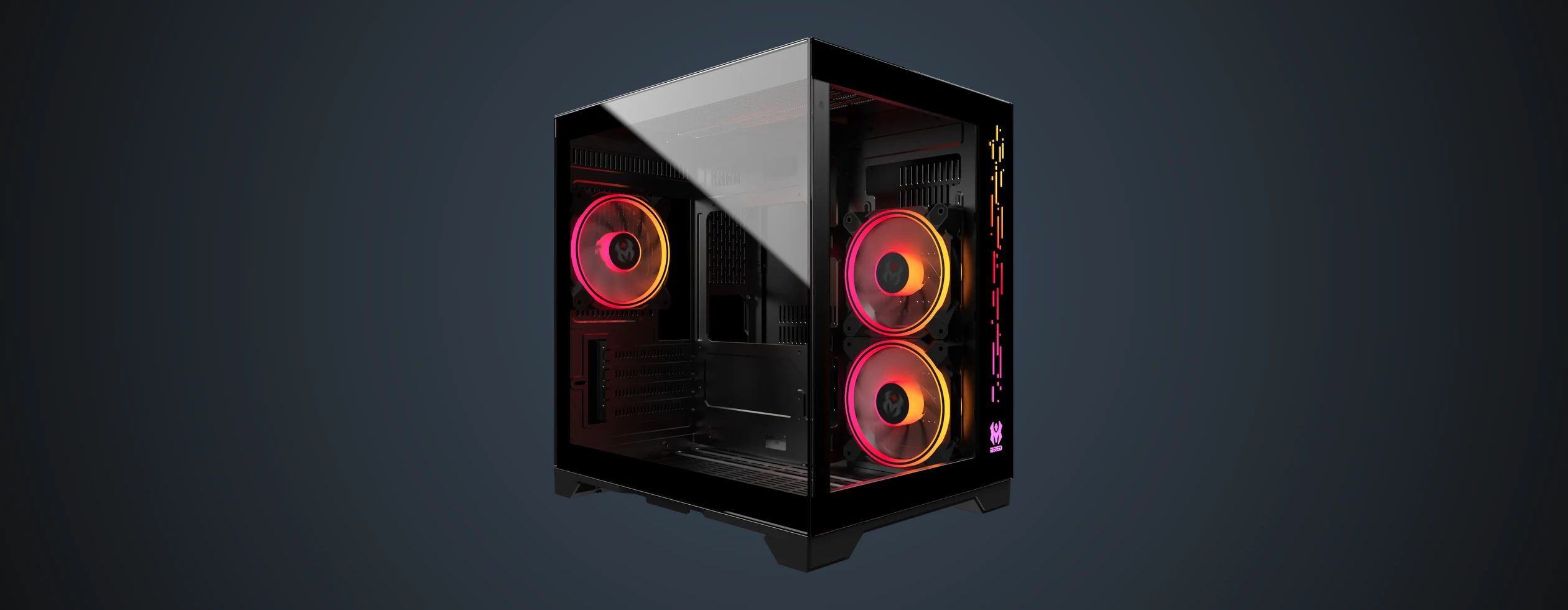

Mini Crystal Sea Black PC case at three-quarter view, glass panel, ARGB fans lit

A Micro ATX case glazed on two sides

Tempered glass on the front and the left side: the build can be seen from the front as well as from the side.

It takes a Micro ATX or Mini-ITXmotherboard, four expansion cards and a graphics card up to 320 mm. The ATX power supply can be up to 165 mm long.

For storage, two 2.5-inch bays for SSDs, one 3.5-inch bay for a hard drive.

The front panel and the right panel come off: you get in from whichever side suits.

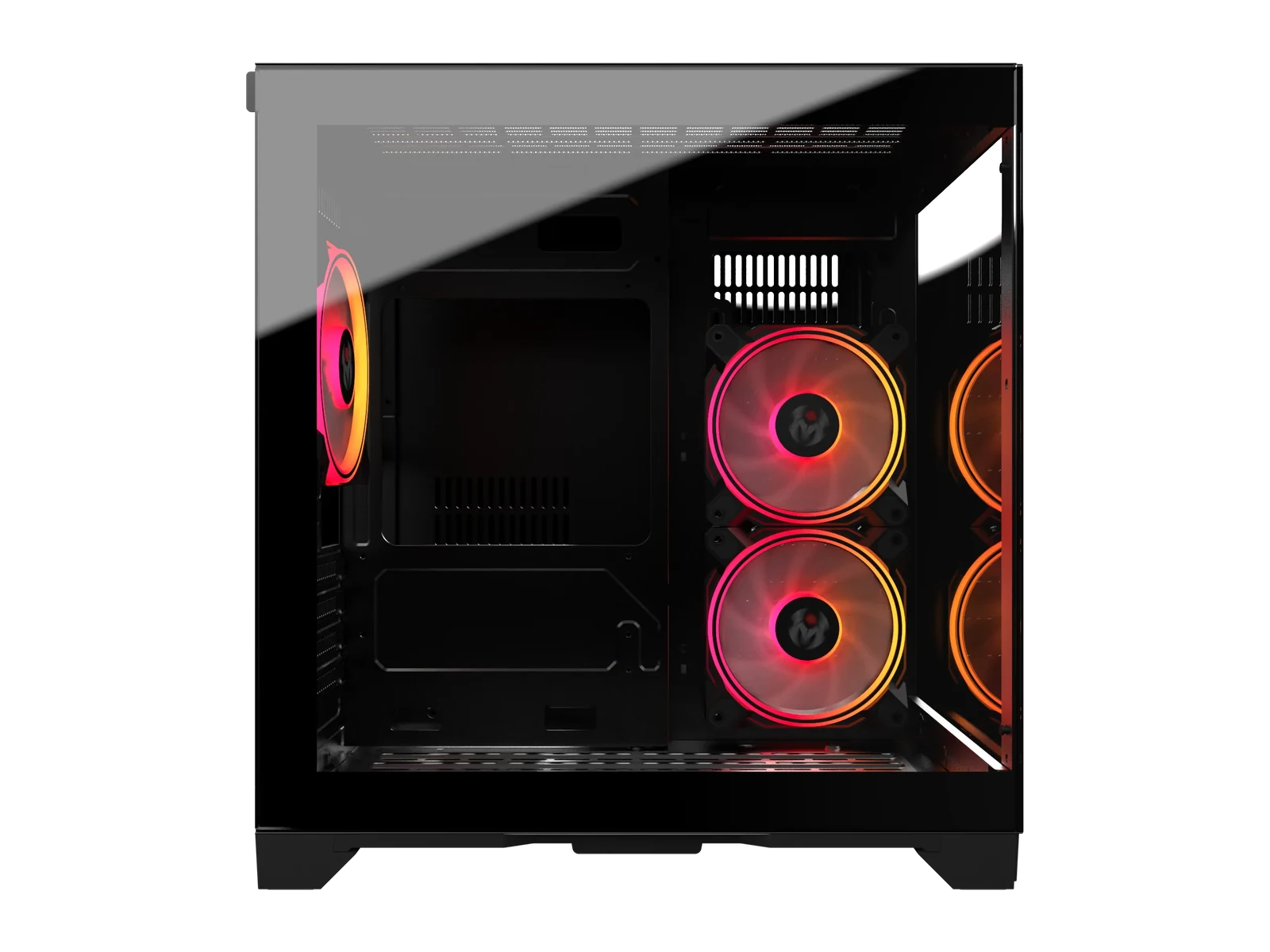

Glass side panel of the Mini Crystal Sea Black, ARGB fans visible through the tempered glass

Connectivity, ARGB bar and rear fan up close

On top, three USB ports, two of them USB 3.0, plus a single audio jack for headset and mic, lined up beside the buttons. On the front upright, an ARGB LED bar watches over the two side fans. At the rear, a 120 mm ARGB fan extracts hot air above the expansion slots.

  • Close-up of the top of the Mini Crystal Sea Black: three USB ports and buttons
  • Close-up of the ARGB LED strip on the front upright and the side fans of the Mini Crystal Sea Black
  • Close-up of the rear ARGB fan of the Mini Crystal Sea Black

Cooling: seven mounts and a 280 mm AIO

Three 120 mm ARGB fans are pre-installed: one at the rear, two reversed on the side.

The rest slots in without looking for room: two 120 or 140 mm fans on top, two more underneath. Seven fans in all, within 37 litres.

The top also takes a 240 or 280 mm AIO watercooling radiator, the rear a 120 mm radiator. An air cooler up to 157 mm tall still fits.

Top and bottom, two dust filters keep the air intakes clean.

Vented right side of the Mini Crystal Sea Black, side fans behind the vents

Compact format: 377 × 280 × 348 mm for a Micro ATX board

Under 38 cm high, 28 cm wide, 35 cm deep and 6.07 kg: the Mini Crystal Sea Black fits on a corner of the desk, and the proof is in what it holds.

Front panel, glass side panel and rear of the Mini Crystal Sea Black at the same scale

ARGB lighting, syncable with Asus, MSI and Gigabyte

A built-in controller drives the lighting on its own, with its remote, or hands it over to the motherboard.

The three fans and the ARGB LED bar are set from the supplied remote control, with no software or compatible motherboard required.

Connected to an Asus, MSI or Gigabytemotherboard, the controller follows its ARGB synchronisation. Steel and tempered glass chassis, two-year commercial warranty, and an M.RED cover supplied with it.

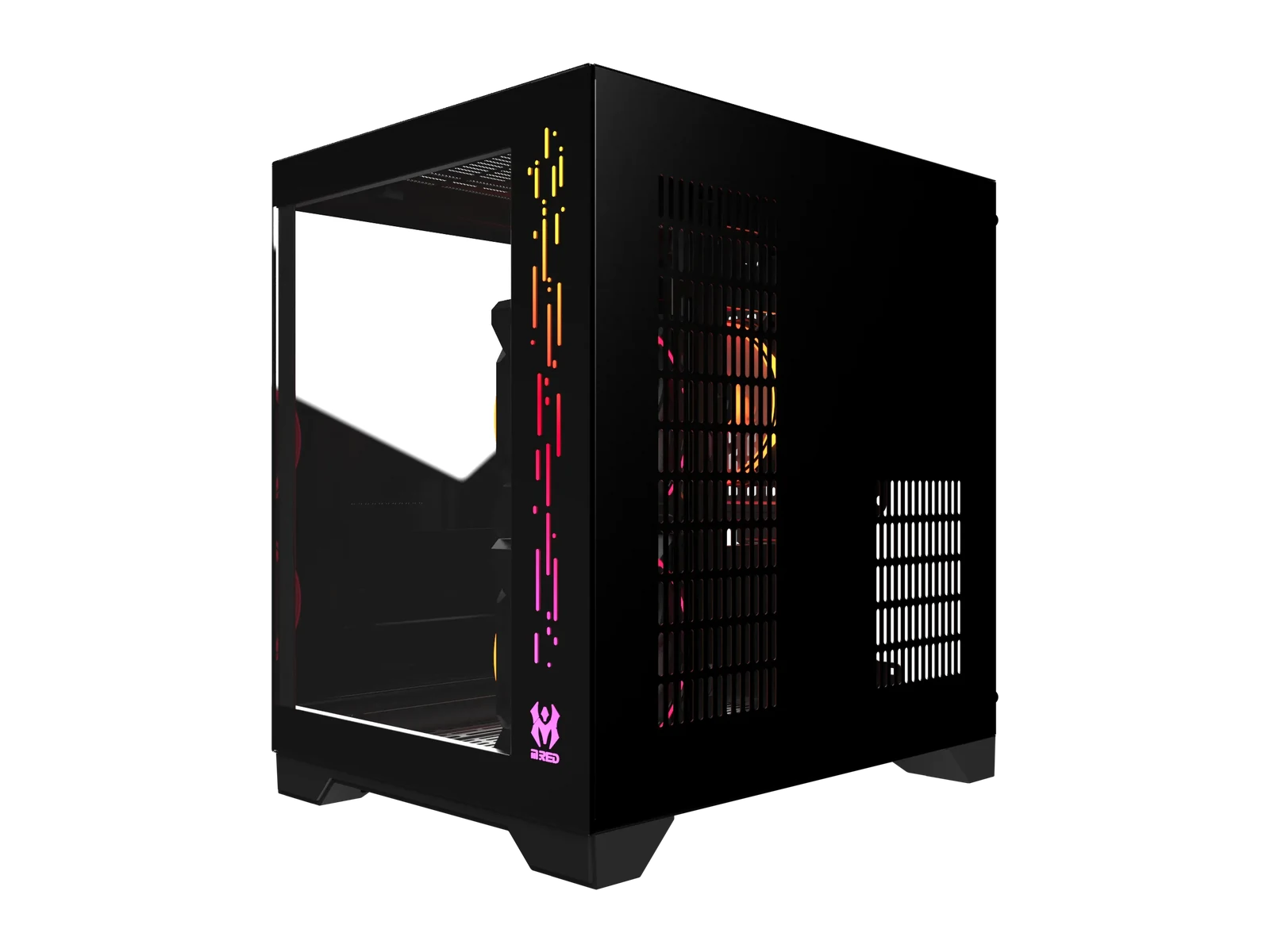

Right three-quarter view of the Mini Crystal Sea Black, ARGB LED bar on the front upright

Gallery

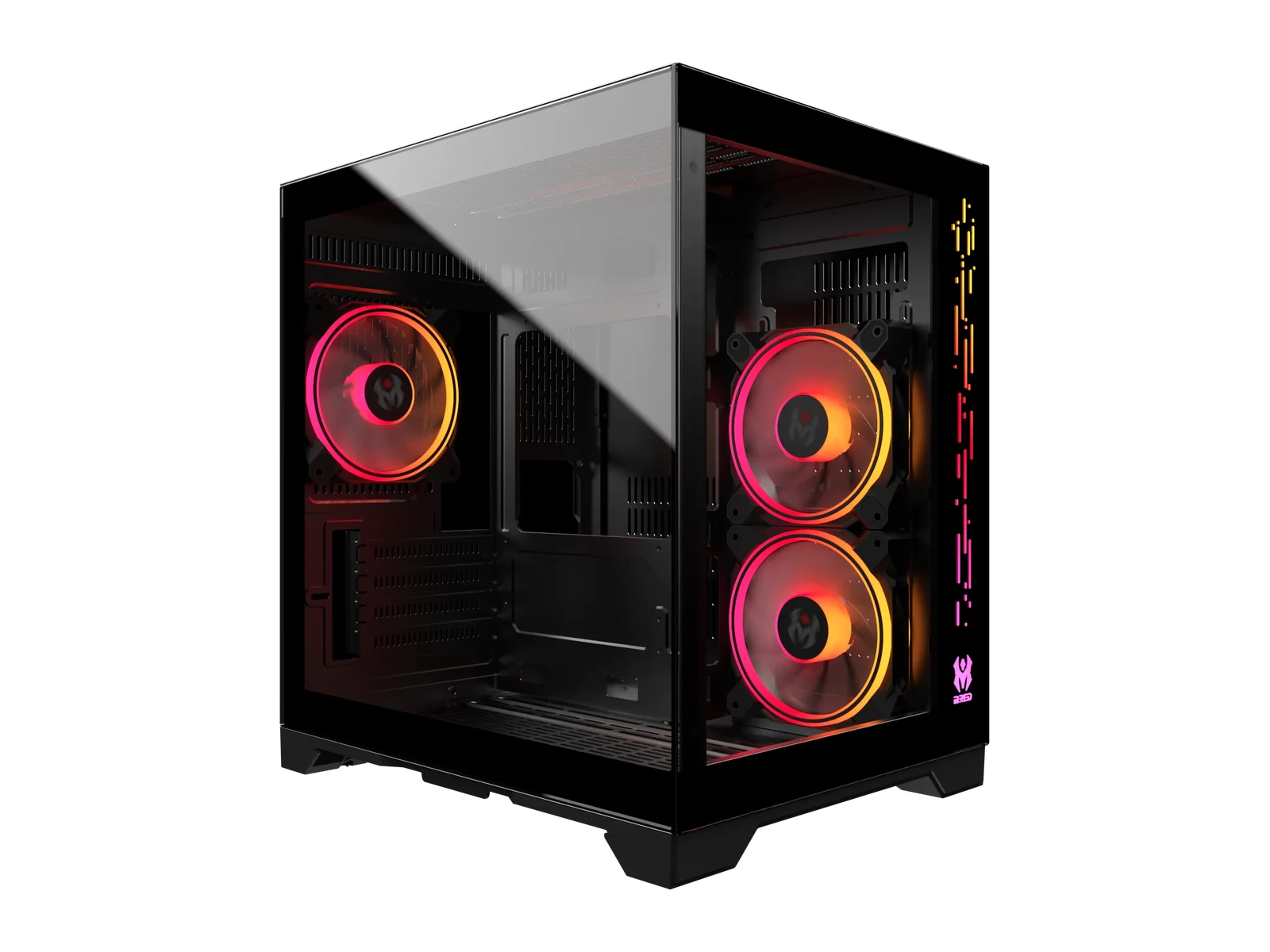

  • Mini Crystal Sea Black seen at three-quarters front
  • Glass front panel of the Mini Crystal Sea Black
  • Glass side panel of the Mini Crystal Sea Black
  • Mini Crystal Sea Black seen from the right three-quarters
  • Vented right side panel of the Mini Crystal Sea Black
  • Rear of the Mini Crystal Sea Black

References1

Serie Model
Crystal Sea

Dimensions & Weight10

Height
377 mm
Width
280 mm
Length
348 mm
Net Weight
6.07 Kg
Volume
36.73 L
Box height
435 mm
Box width
350 mm
Box length
435 mm
Gross weight
7.9 Kg
Gross volume
66.23 L

Design17

Usage
Gaming
Form Factor
Mid Tower
Color
Black
Raw Materials
Steel, Tempered Glass
Mred Cover
Yes
Window Right Side Panel
No
Window Left Side Panel
Yes
Window Raw Material
Tempered Glass
LED Lights
Yes
LED Type
ARGB
Motherboard LED Compatibility Brands
Asus, Msi, Gigabyte
ARGB Compatibility
Yes
Side Bar LED Qty
Yes
LED Controler
Yes
LED Controler Operation Mode
Stand alone
Controler IRDA Remote Control
Yes
Front panel wireless connectors
No

Conception7

Dust Filters Qty
2
Top Dust Filter
Yes
Front Dust Filter
No
Bottom Dust Filter
Yes
Removable Front Panel
Yes
Replaceable Front Panel
No
Removable Right Side Panel
Yes

Compatibility & Clearance6

Clearance Max. CPU Cooler
157 mm
Motherboard Support
Micro ATX, Mini-ITX
Clearance Max. Horizontal Graphic Card
320 mm
Vertical VGA Extension Slots
No
Supported PSU Type
ATX
PSU Max Length
165 mm

Cooling9

Pre-Installed Fans - Side
2*120 ARGB Reverse
Pre-Installed Fans - Rear
1*120 ARGB
Fan Support - Top
2*120, 2*140
Fan Support - Side
2*120
Fan Support - Bottom
2*120, 2*140
Fan Support - Rear
1*120
Watercooling System Support
Yes
Radiator Support - Top
240, 280
Radiator Support - Rear
120

Extension slots6

Horizontal PCI Slot Qty
4
Vertical PCI Slot Qty
0
Horizontal VGA support
No
2,5" Drive Bays Qty
2
3,5" Drive Bays Qty
1
HDD removable rack
0

Connectivity7

Connectors Location
Top
USB 2.0
1
USB 3.0
2
USB 3.2 Gen 2 Type-C
0
3.5mm Headset Jack (Audio+Mic)
1
3.5mm Headset Jack (Audio)
0
3.5mm Headset Jack (Mic)
0

Warranty & Docs1

Commercial Warranty
2 années
