Force One Black

Ref.: DU-001EAN: 3700755601459

This mini-tower case houses a build based on a Micro ATX or ITX motherboard. It comes with three 120 mm fans pre-installed (1 at the rear and 2 on top). It can house a graphics card up to 335 mm, a CPU air cooler up to 165 mm and an AIO radiator up to 240 mm. SPCC steel and ABS chassis. A USB Type-C port is included on the front panel.

The Force One breathes through every side

A 26.7-litre mini tower PC case, perforated on every side, for a Micro ATX or Mini-ITX build that keeps its place on the desk.

Force One Black mini tower PC case at three-quarter view, perforated panels

An accessible Micro ATX interior

The side panel and front panel come off: assembly is within easy reach.

The Force One Black takes a Micro ATX or Mini-ITX motherboard and offers five expansion slots. Its chassis combines rigid SPCC steel with ABS elements.

Three storage bays are shared between hard drives and SSDs: two drives and one SSD, or one drive and two SSDs, depending on the configuration chosen.

Three 120 mm fans are pre-installed, two on top and one at the rear: the airflow is in place from the first boot.

Force One Black with the side panel removed, 120 mm rear fan and expansion slots visible

The details that count

On the front, a USB Type-C 3.2 Gen 2 port, a USB 3.0 port and a combined headset-microphone audio jack. On every side, perforations that let the air through. At the rear, five expansion slots for the graphics card and additional cards.

  • Close-up of the Force One Black front panel: power button, audio jacks, USB 3.0 and USB Type-C
  • Close-up of the perforations on the Force One Black front panel
  • Close-up of the expansion slots at the rear of the Force One Black

Cooling: up to five fans or a 240 mm AIO

Two 120 mm fans are supplied on top, which also takes two 140 mm fans or a 240 mm AIO liquid cooling radiator. The bottom takes two more, 120 or 140 mm, and the rear keeps its supplied 120 mm fan.

Two dust filters protect the top and bottom air intakes. On the processor side, a CPU cooler up to 165 mm in height fits in.

Force One Black seen in three-quarter view from the perforated top

A 26.7-litre mini tower format

347 mm high, 200 mm wide, 385 mm deep: the Force One Black sits on the desk or under it, without giving up the graphics card.

Front, side and rear of the Force One Black at the same scale

Compatibility: a graphics card up to 335 mm

Graphics card, CPU cooler and power supply: the compact format does not dictate the choice of components.

The graphics card has 335 mm of length, the CPU cooler 165 mm of height, and the power supply is chosen in the standard ATX format , up to 165 mm long.

Designed for an understated workstation — no glass, no lighting — the Force One Black also takes a compact gaming build. It is covered by a two-year commercial warranty.

Profile of the Force One Black, the interior visible through the perforated panel

Gallery

  • Force One Black seen from the front three-quarter view
  • Force One Black with the side panel open

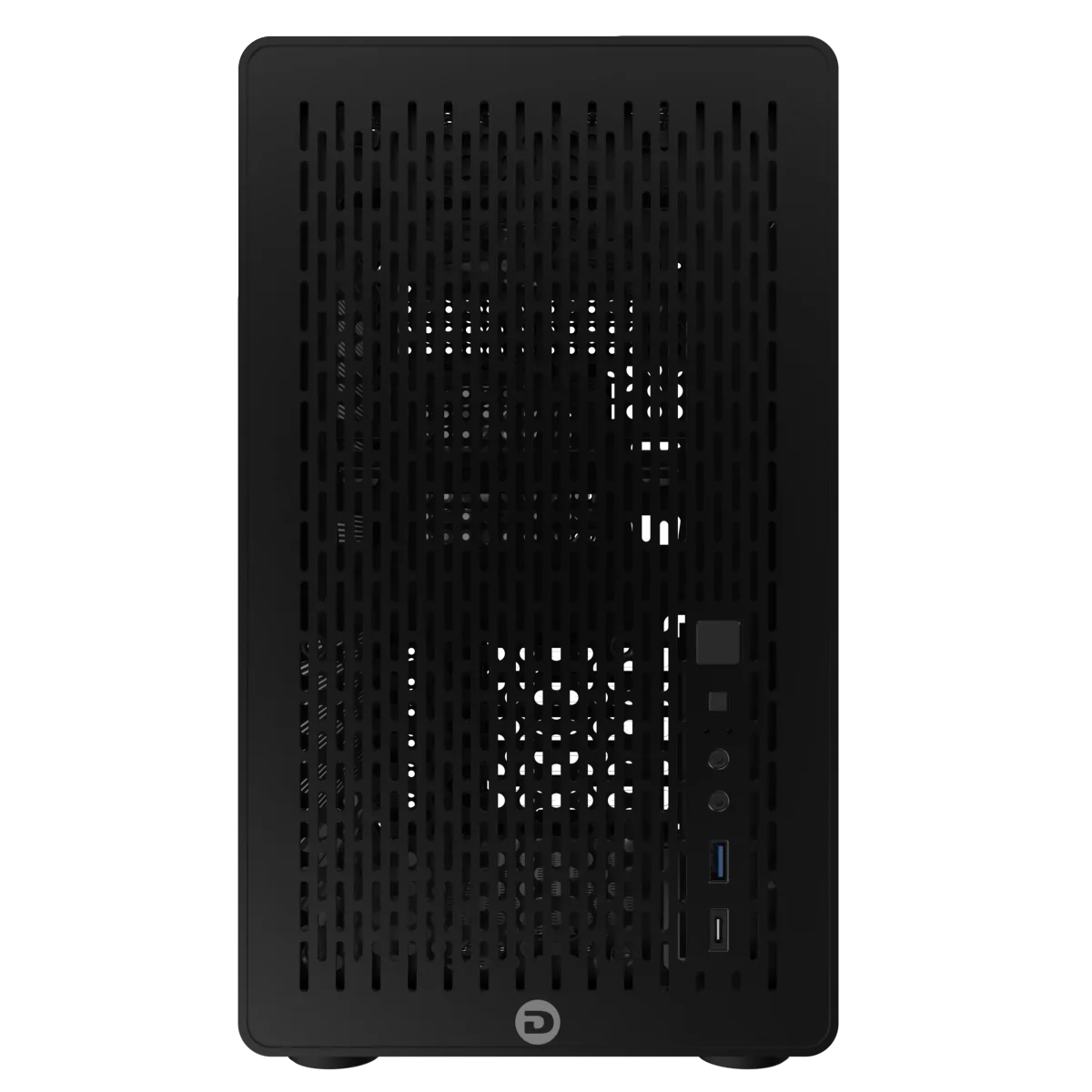

  • Front panel of the Force One Black
  • Side view of the Force One Black, micro-perforated panel

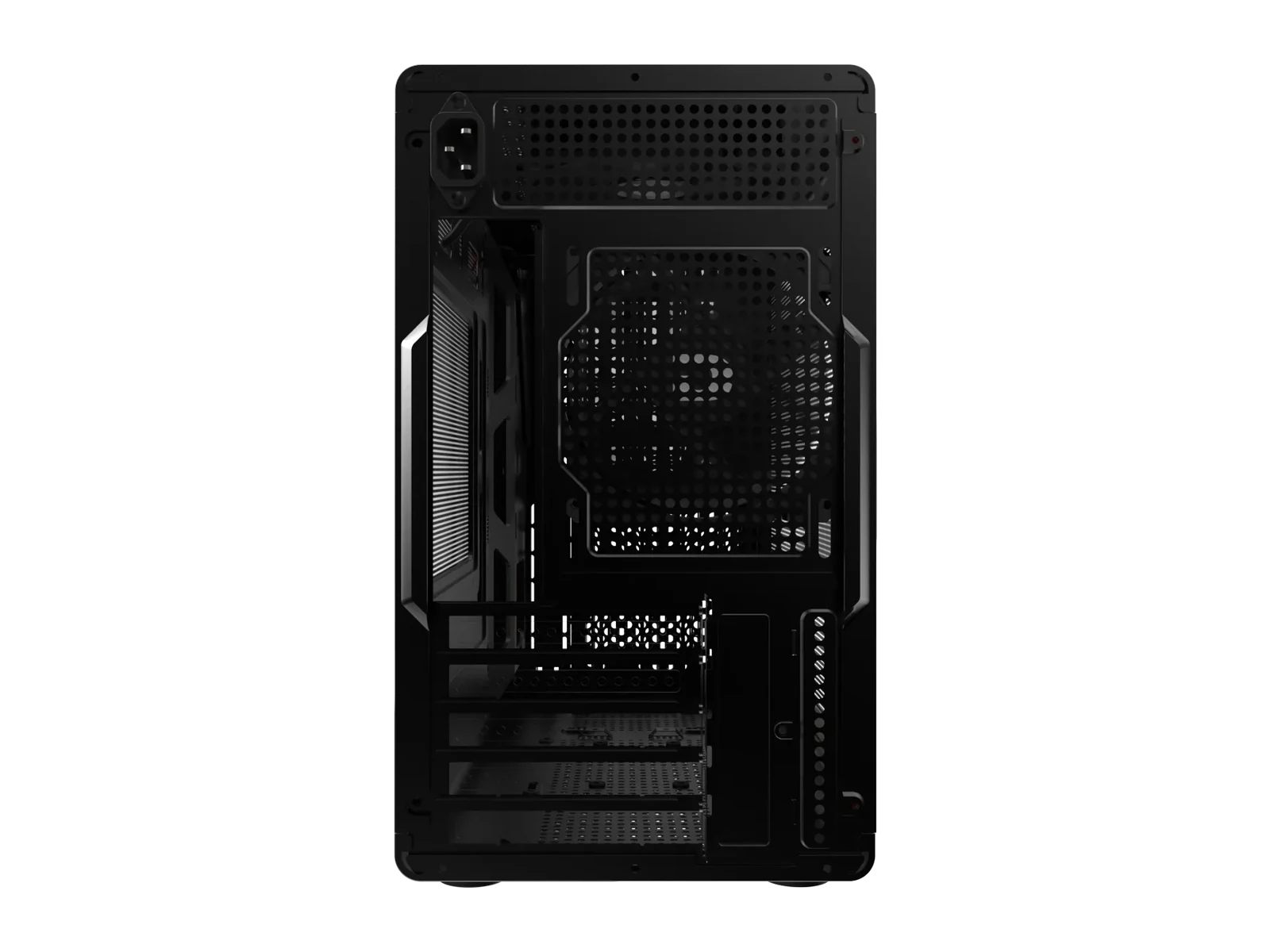

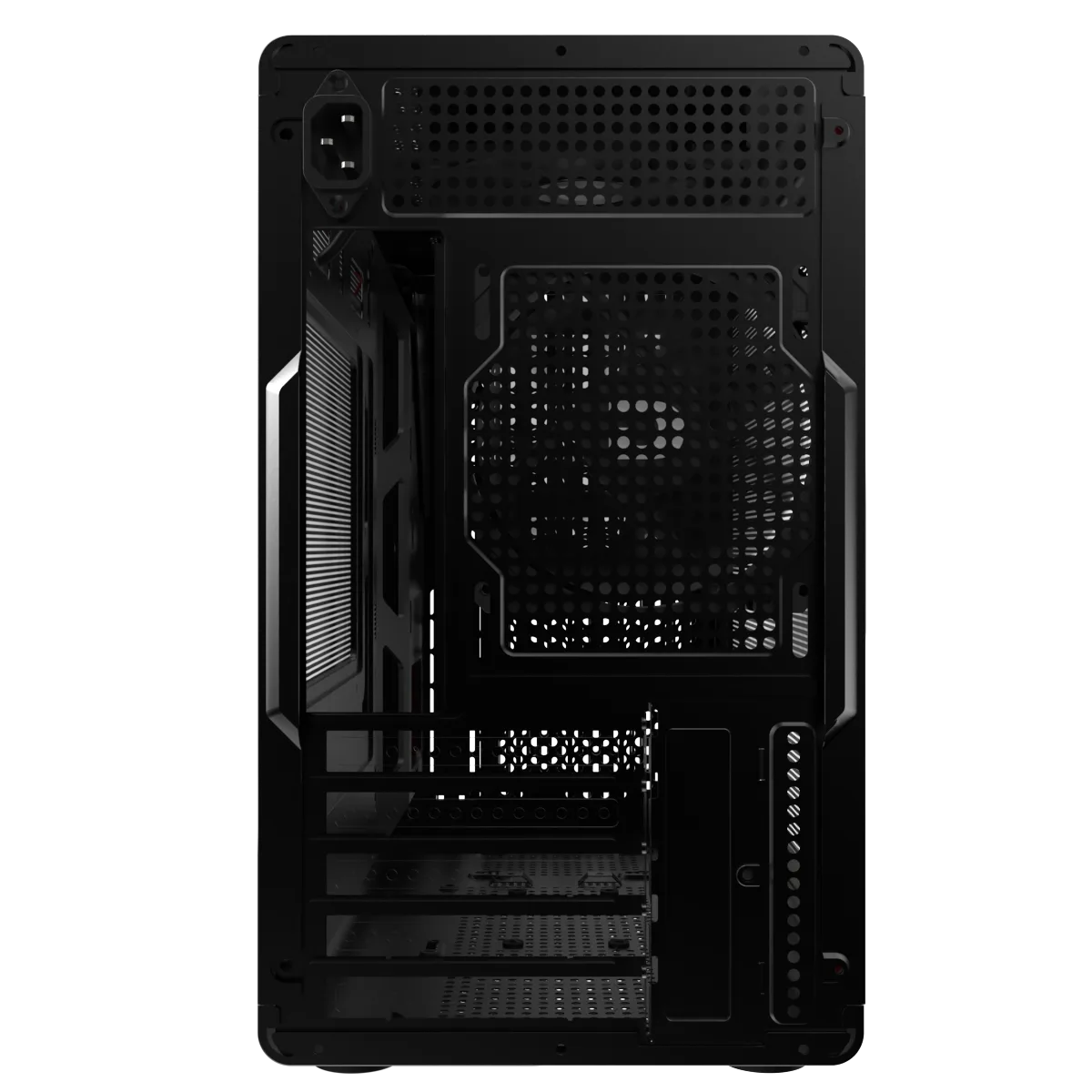

  • Rear of the Force One Black

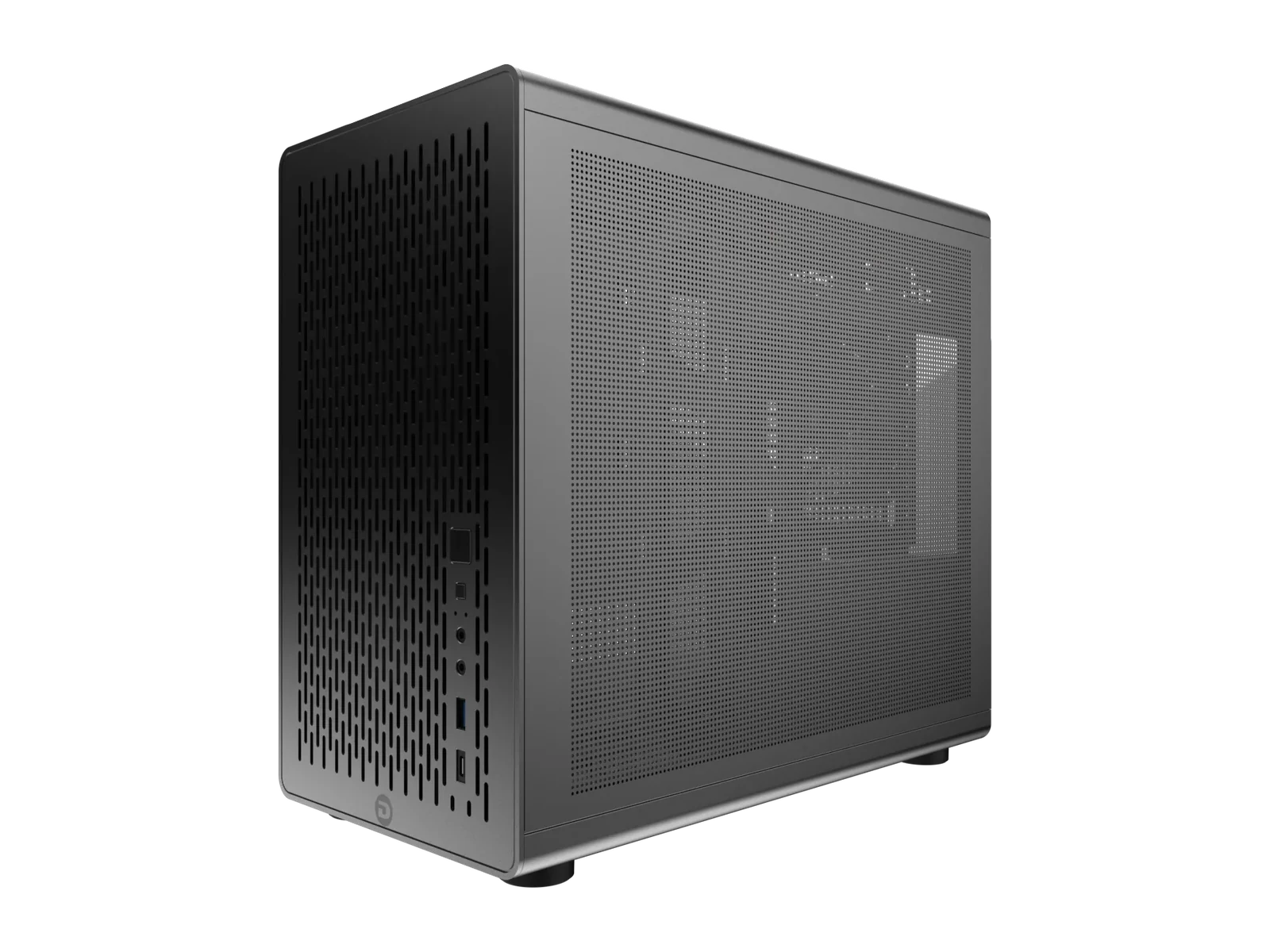

  • Force One Black in three-quarter view, opposite side

References1

Serie Model
Force

Dimensions & Weight9

Height
347 mm
Width
200 mm
Length
385 mm
Volume
26.72 L
Box height
485 mm
Box width
291 mm
Box length
435 mm
Gross weight
4.3 Kg
Gross volume
61.39 L

Design13

Usage
Office
Form Factor
Small Tour
Color
black
Raw Materials
SPCC, ABS
Mred Cover
No
Window Right Side Panel
No
Window Left Side Panel
No
LED Lights
No
ARGB Compatibility
No
Side Bar LED Qty
No
LED Controler
No
Controler IRDA Remote Control
No
Front panel wireless connectors
No

Conception7

Dust Filters Qty
2
Top Dust Filter
1
Front Dust Filter
No
Bottom Dust Filter
1
Removable Front Panel
Yes
Replaceable Front Panel
Yes
Removable Right Side Panel
Yes

Compatibility & Clearance10

Clearance Max. CPU Cooler
165 mm
Motherboard Support
MICRO ATX, ITX
Clearance Max. Horizontal Graphic Card
335 mm
Vertical VGA Extension Slots
No
Clearance Max. Vertical Graphic Card
No
Thickness Max. carte Vertical Graphic Card
No
Front Fan and Radiator Clearance
No
Top Fan and Radiator Clearance
No
Supported PSU Type
ATX
PSU Max Length
165 mm

Cooling9

Pre-Installed Fans - Top
2x120 mm
Pre-Installed Fans - Side
non
Pre-Installed Fans - Bottom
non
Pre-Installed Fans - Rear
1*120mm
Fan Support - Top
2*120mm or 2x140mm
Fan Support - Bottom
2*120mm or 2x140mm
Fan Support - Rear
1*120mm
Watercooling System Support
Yes
Radiator Support - Top
1x240mm

Extension slots6

Horizontal PCI Slot Qty
5
Vertical PCI Slot Qty
0
Horizontal VGA support
yes
2,5" Drive Bays Qty
2xHDD+1XSSD or 1XHDD+2XSSD
3,5" Drive Bays Qty
Non
HDD removable rack
Non

Connectivity7

Connectors Location
Front
USB 2.0
0
USB 3.0
1
USB 3.2 Gen 2 Type-C
1
3.5mm Headset Jack (Audio+Mic)
1
3.5mm Headset Jack (Audio)
0
3.5mm Headset Jack (Mic)
0

Warranty & Docs1

Commercial Warranty
2 années
