Vision Infinite Black

Ref.: MR-042EAN: 3700755601206

This case takes Micro ATX and Mini-ITX motherboards. Airflow relies on three 120 mm ARGB fans pre-installed (1 at the rear and 2 on the side). It can house a graphics card up to 420 mm, a CPU air cooler up to 165 mm and an AIO radiator up to 360 mm. Its chassis is made of steel and tempered glass, with a glass side panel.

The Vision Infinite Black turns your PC into a display case

A PC case with tempered glass at the front and on the left side, for a Micro ATX or Mini-ITX motherboard. Three preinstalled 120 mm ARGB fans light up what stands behind the glass, and the eye travels right through the build.

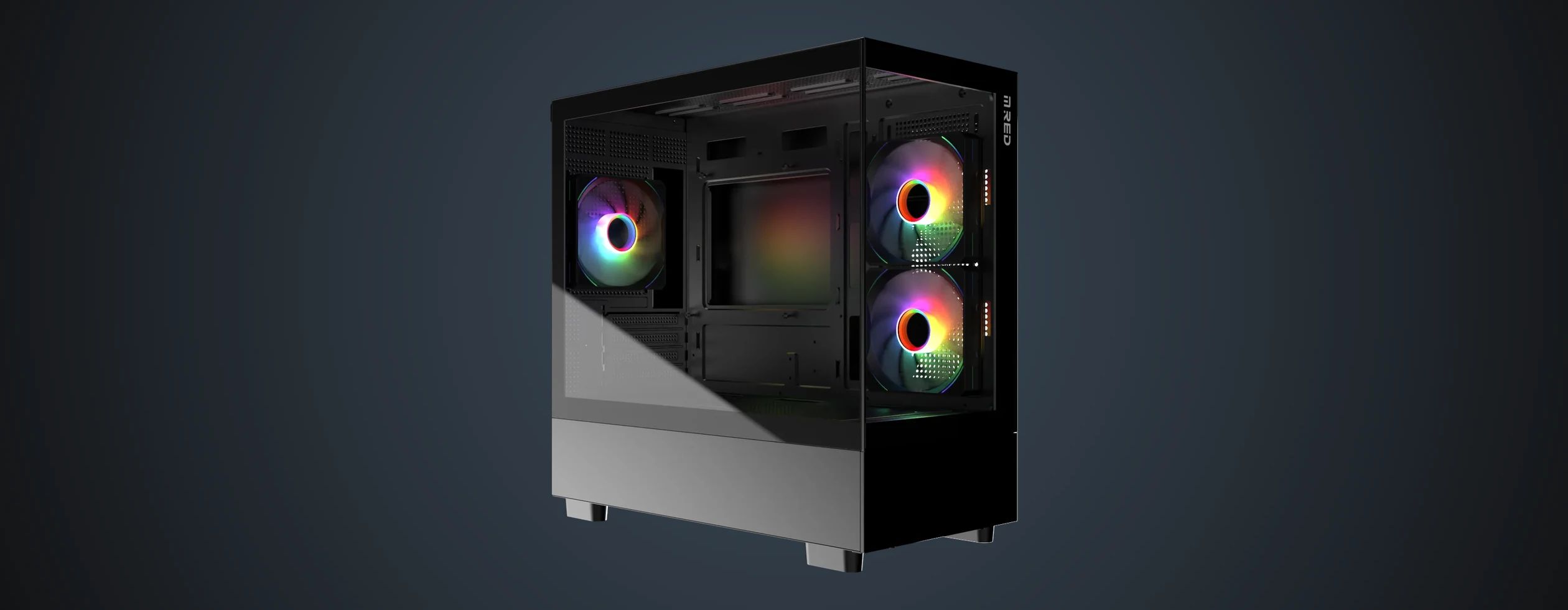

Vision Infinite Black glass PC case seen at three-quarter angle, ARGB fans lit

Micro ATX glass case: your build on stage

Tempered glass at the front and on the left side: the build can be admired head-on as well as in profile.

The Vision Infinite Black takes a Micro ATX or Mini-ITX motherboard in a steel chassis. The power supply sits at the bottom, in an opaque shroud that leaves all the glass to the components.

The front panel and the right side panel come off for assembly, and two dust filters protect the top and the bottom: the showcase stays clean.

Glass side of the Vision Infinite Black, with ARGB fans visible through the glass

ARGB fans, connectivity and rear panel up close

At the heart of each ARGB fan, rings of light seem to sink into the hub. On the top, one USB 3.0 port, one USB 2.0 port and a combined headset jack. At the rear, the 120 mm fan watches over four expansion slots.

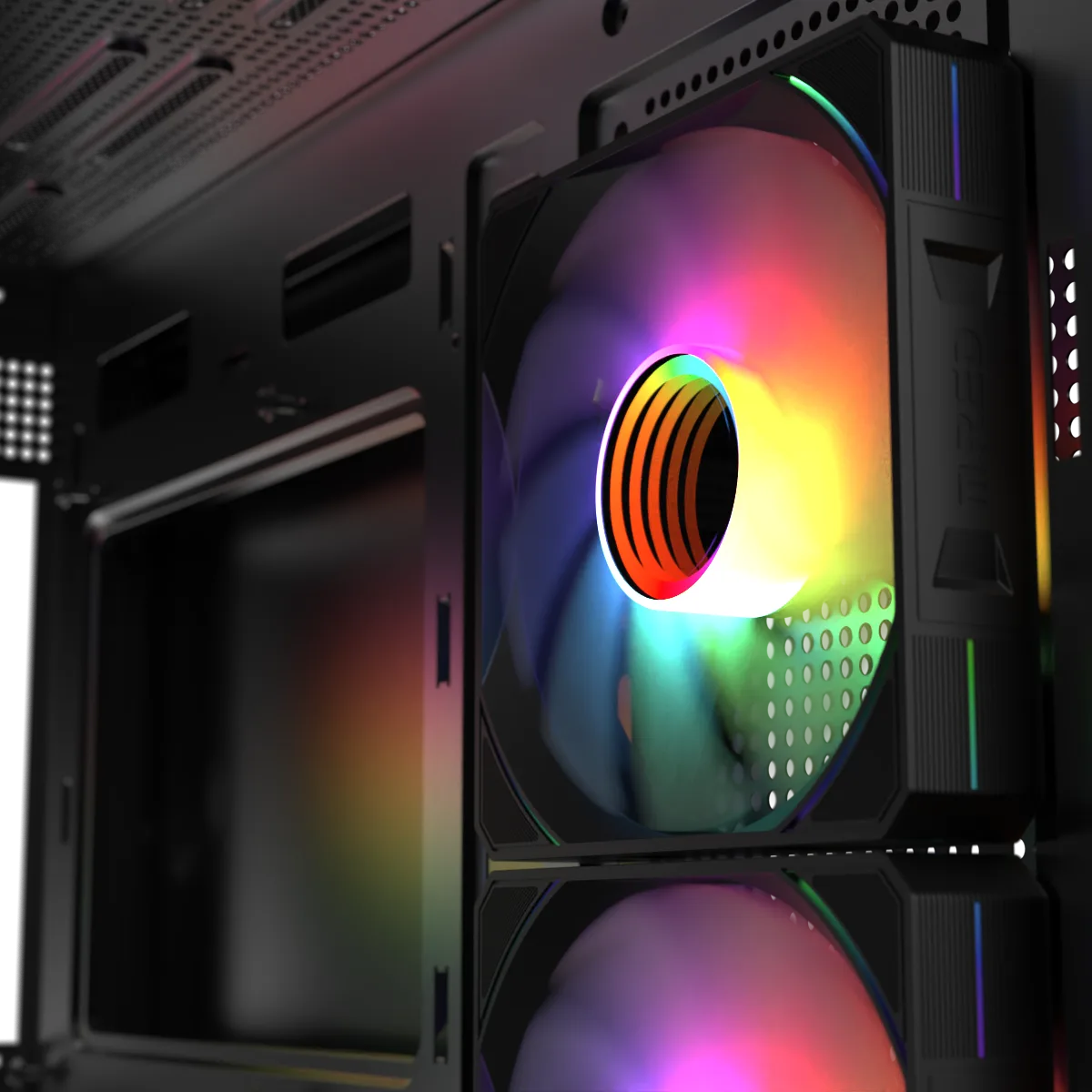

  • Close-up of an ARGB fan on the Vision Infinite Black, light rings at the centre of the hub
  • Close-up of the top of the Vision Infinite Black and its USB ports
  • Close-up of the back of the Vision Infinite Black: 120 mm fan and expansion slots

Cooling: three ARGB fans and a 360 mm AIO

Three 120 mm ARGB fans come pre-installed: two on the right side, behind its perforated grille, and one at the rear. Their light shows through the glass, from the front as well as from the side.

The top takes a 240 or 360 mm AIO liquid cooling radiator, or three 120 mm fans; the bottom, three more 120 mm fans. At the rear, the 120 mm mount can also carry a radiator.

Vision Infinite Black seen from the right three-quarters, with perforated side panel grille

A compact 38.8-litre case, seen from three angles

Front, side, back: 415 mm high, 215 mm wide, 435 mm deep, 5.6 kg empty. A measured volume, where glass takes up most of what you see.

Front, side and rear views of the Vision Infinite Black at the same scale

A graphics card up to 420 mm, on show behind the glass

420 mm of clearance: a large graphics card fits and stays in full view.

The graphics card mounts horizontally, in one of the four expansion slots, in full view behind the side window.

A CPU cooler up to 165 mm tall, an ATX power supply up to 200 mm, one 2.5-inch SSD and two 3.5-inch drives complete the build. Two-year commercial warranty; the case comes with its M.RED cover.

Glass front panel of the Vision Infinite Black, ARGB fans visible

Gallery

  • Vision Infinite Black seen from the front three-quarters
  • Glass front panel of the Vision Infinite Black
  • Glass side profile of the Vision Infinite Black
  • Rear of the Vision Infinite Black
  • Vision Infinite Black seen from a right-hand three-quarter angle
  • Right side of the Vision Infinite Black and its perforated grille

References1

Serie Model
Vision

Dimensions & Weight10

Height
415 mm
Width
215 mm
Length
435 mm
Net Weight
5.6 Kg
Volume
38.81 L
Box height
535 mm
Box width
312 mm
Box length
490 mm
Gross weight
6.8 Kg
Gross volume
81.79 L

Design15

Usage
Gaming
Color
Black
Raw Materials
Steel, Tempered glass
Mred Cover
Yes
Window Right Side Panel
No
Window Left Side Panel
Yes
Window Raw Material
Tempered glass
LED Lights
Yes
Motherboard LED Compatibility Brands
No
ARGB Compatibility
No
Side Bar LED Qty
No
LED Controler
No
LED Controler Operation Mode
No
Controler IRDA Remote Control
No
Front panel wireless connectors
No

Conception7

Dust Filters Qty
2
Top Dust Filter
Yes
Front Dust Filter
No
Bottom Dust Filter
Yes
Removable Front Panel
Yes
Replaceable Front Panel
Yes
Removable Right Side Panel
Yes

Compatibility & Clearance10

Clearance Max. CPU Cooler
165 mm
Motherboard Support
Micro ATX, Mini-ITX
Clearance Max. Horizontal Graphic Card
420 mm
Vertical VGA Extension Slots
No
Clearance Max. Vertical Graphic Card
No
Thickness Max. carte Vertical Graphic Card
No
Front Fan and Radiator Clearance
No
Top Fan and Radiator Clearance
25 mm
Supported PSU Type
ATX
PSU Max Length
200 mm

Cooling9

Pre-Installed Fans - Side
2*120 ARGB
Pre-Installed Fans - Rear
1*120 ARGB
Fan Support - Top
3*120
Fan Support - Side
2*120
Fan Support - Bottom
3*120
Fan Support - Rear
1*120
Watercooling System Support
Yes
Radiator Support - Top
360, 240
Radiator Support - Rear
120

Extension slots6

Horizontal PCI Slot Qty
4
Vertical PCI Slot Qty
0
Horizontal VGA support
Yes
2,5" Drive Bays Qty
1
3,5" Drive Bays Qty
2
HDD removable rack
0

Connectivity5

Connectors Location
Top
USB 2.0
1
USB 3.0
1
USB 3.2 Gen 2 Type-C
0
3.5mm Headset Jack (Audio+Mic)
1

Warranty & Docs1

Commercial Warranty
2 années
