Raven Black

Ref.: MR-038EAN: 3700755601169

This mid-tower case takes E-ATX, ATX, Micro ATX and Mini-ITX motherboards. Three 140 mm ARGB fans are pre-installed (at the front). It supports a graphics card up to 390 mm, a CPU air cooler up to 165 mm and an AIO radiator up to 360 mm. In terms of build, the chassis is made of steel and tempered glass, including the glass side panel.

The Raven Black thinks big, and wears it in black

E-ATX motherboard, three 140 mm ARGB fans at the front, a tempered glass panel. Black steel, taut lines, and the space a large build demands.

Raven Black PC case seen at three-quarters, side glass panel and ARGB fans at the front

E-ATX motherboard: the space of a large format

The Raven Black accepts E-ATX, ATX, Micro ATX and Mini-ITX motherboards.

Seven expansion slots, a graphics card up to 390 mm, a CPU cooler up to 165 mm tall : space is not up for negotiation.

The ATX power supply can be up to 220 mm long. For storage, two 3.5-inch bays, two 2.5-inch bays and a removable hard drive rack.

Glass side panel of the Raven Black, the large interior visible through the tempered glass

Perforated front, USB connectors and seven PCI slots

At the front, a perforated panel in front of the 140 mm fans. On top, three USB ports — two USB 3.0, one USB 2.0 — and a combined headset jack. At the rear, seven expansion slots.

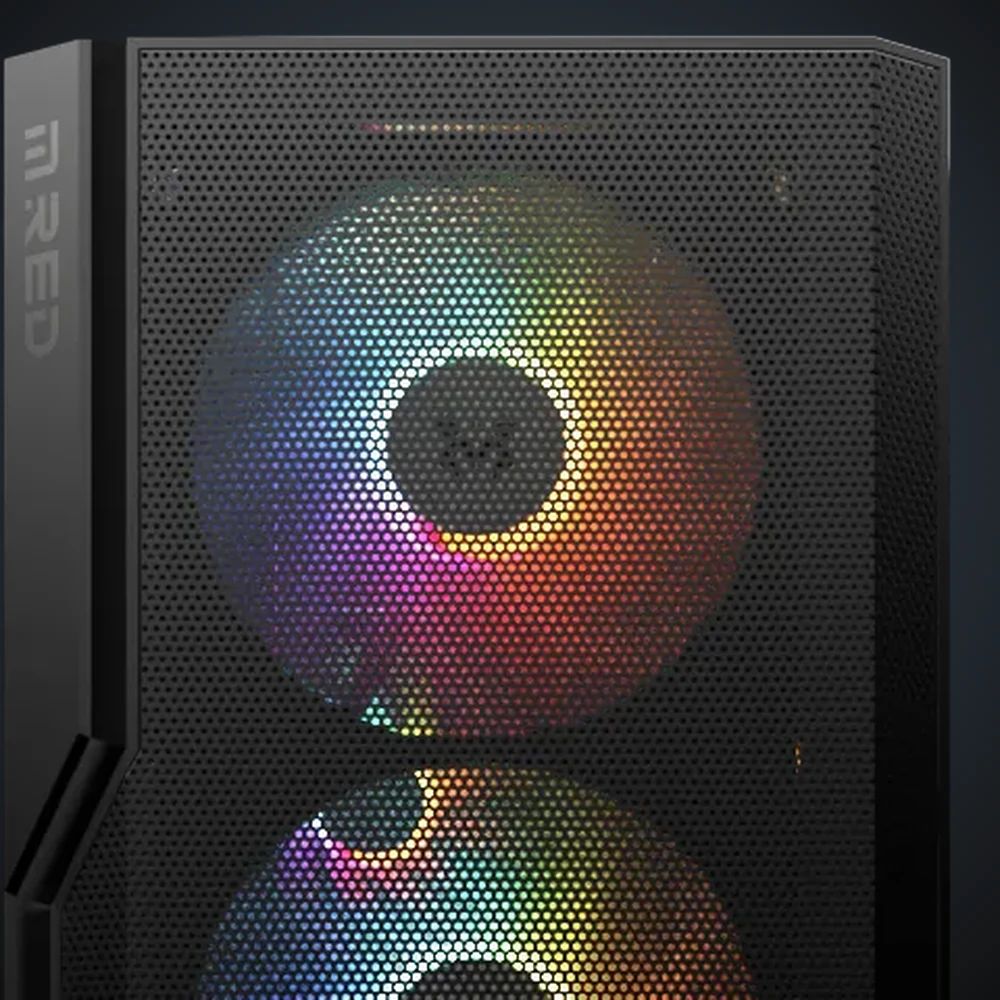

  • Close-up of the perforated front panel of the Raven Black and a 140 mm ARGB fan
  • Close-up of the top of the Raven Black: three USB ports, jack socket and buttons
  • Close-up of the seven expansion slots at the rear of the Raven Black

Cooling: 140 mm ARGB fans and an AIO up to 360 mm

Three 140 mm ARGB fans come preinstalled at the front, and one 120 mm ARGB fan at the rear.

The top takes a 240, 280 or 360 mm AIO watercooling radiator, the front a 240 or 280 mm radiator. The top also accepts three 120 mm fans or two 140 mm fans, the bottom two 120 mm fans.

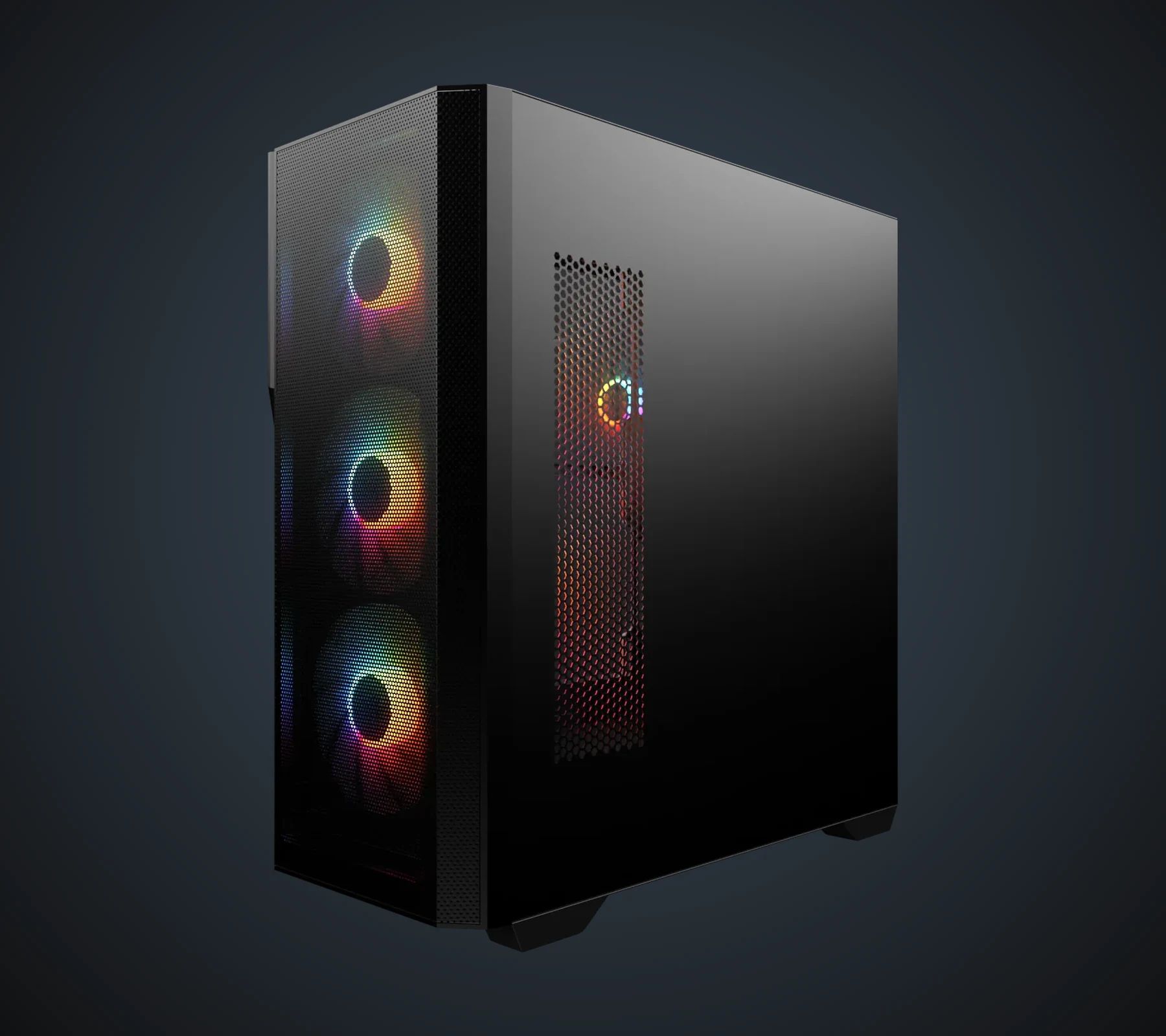

Raven Black seen at three-quarters, three ARGB fans behind the perforated front panel

A black PC case 480 mm high

480 mm high, 215 mm wide, 460 mm deep: a tall, narrow silhouette in black steel and tempered glass that makes its presence felt without a word.

Front, glass side profile and rear of the Raven Black at the same scale

Removable front panel and dust filters: a build under control

The front and the right side panel come off: access to the components stays direct.

The top, widely perforated, and the bottom are protected by dust filters.

The left tempered glass panel shows the build; the rest of the chassis is steel. The graphics card can also be mounted vertically, up to 390 mm long and 65 mm thick, with a riser cable not included. Two-year commercial warranty; an M.RED cover comes with the case.

Perforated top of the Raven Black seen from above, with its ports and power button

Gallery

  • Raven Black seen from the front three-quarters
  • Perforated front panel of the Raven Black, ARGB fans lit

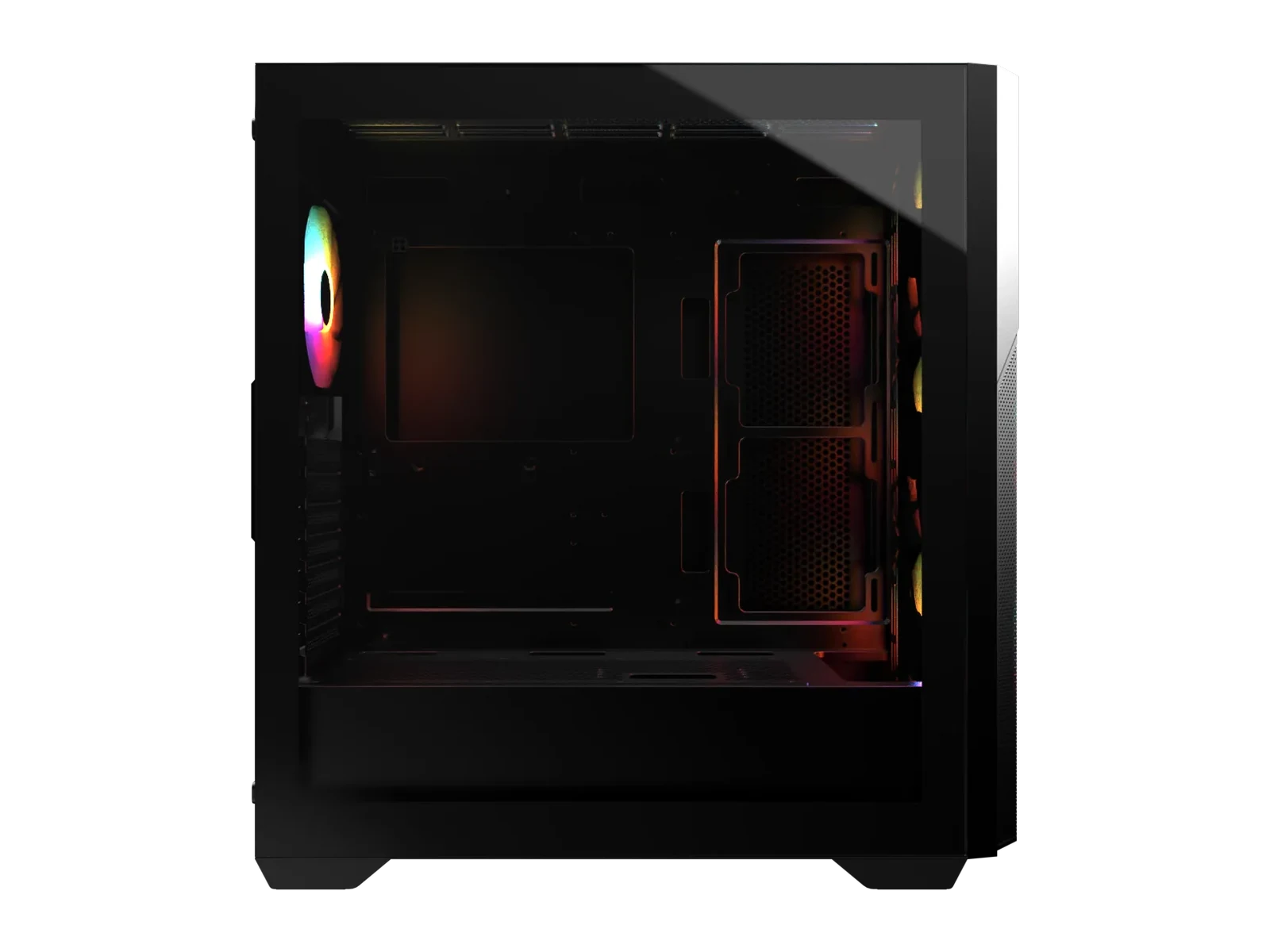

  • Glass side profile of the Raven Black

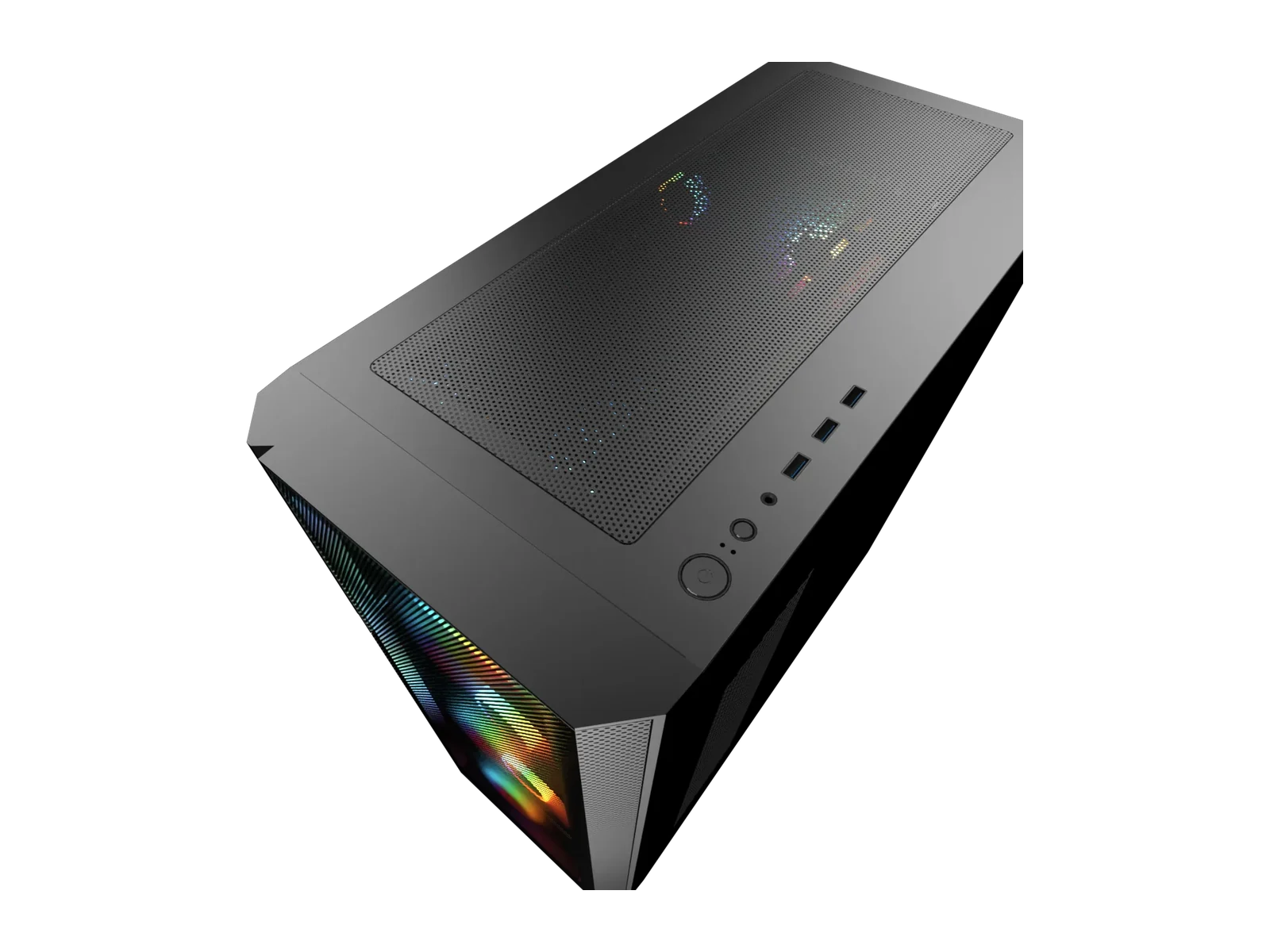

  • Top of the Raven Black seen from above

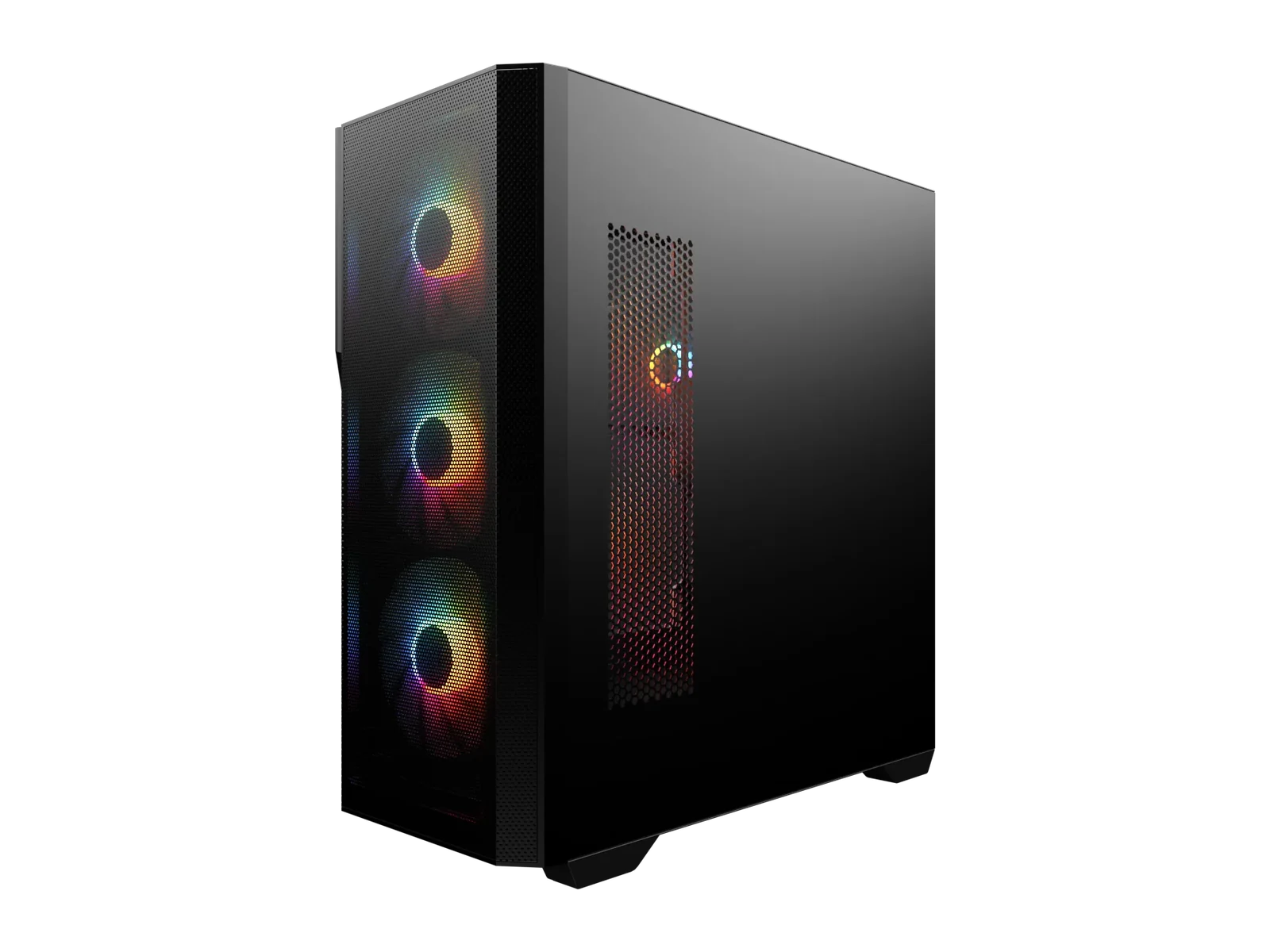

  • Raven Black seen at a three-quarter angle, right side
  • Rear panel of the Raven Black, ARGB fan and slots

References1

Serie Model
Raven

Dimensions & Weight10

Height
480 mm
Width
215 mm
Length
460 mm
Net Weight
6.8 Kg
Volume
47.47 L
Box height
535 mm
Box width
285 mm
Box length
560 mm
Gross weight
8.05 Kg
Gross volume
85.39 L

Design16

Usage
Gaming
Form Factor
Mid Tower
Color
Black
Raw Materials
Steel, Tempered Glass
Mred Cover
Yes
Window Right Side Panel
No
Window Left Side Panel
Yes
Window Raw Material
Tempered Glass
LED Lights
Yes
Motherboard LED Compatibility Brands
No
ARGB Compatibility
No
Side Bar LED Qty
No
LED Controler
No
LED Controler Operation Mode
No
Controler IRDA Remote Control
No
Front panel wireless connectors
No

Conception7

Dust Filters Qty
3
Top Dust Filter
Yes
Front Dust Filter
No
Bottom Dust Filter
Yes
Removable Front Panel
Yes
Replaceable Front Panel
No
Removable Right Side Panel
Yes

Compatibility & Clearance10

Clearance Max. CPU Cooler
165 mm
Motherboard Support
E-ATX, ATX, Micro-ATX, Mini-ITX
Clearance Max. Horizontal Graphic Card
390 mm
Vertical VGA Extension Slots
No
Clearance Max. Vertical Graphic Card
390
Thickness Max. carte Vertical Graphic Card
65
Front Fan and Radiator Clearance
27,5 mm
Top Fan and Radiator Clearance
55 mm
Supported PSU Type
ATX
PSU Max Length
220 mm

Cooling11

Pre-Installed Fans - Front
3*140 ARGB
Pre-Installed Fans - Rear
1*120 ARGB
Fan Support - Front
3*120, 3*140
Fan Support - Top
3*120, 2*140
Fan Support - Bottom
2*120
Fan Support - Rear
1*120
Watercooling System Support
Yes
Radiator Support - Front
240, 280
Radiator Support - Top
360, 240, 280
Radiator Support - Side
360
Radiator Support - Rear
120

Extension slots6

Horizontal PCI Slot Qty
7
Vertical PCI Slot Qty
7
Horizontal VGA support
Yes
2,5" Drive Bays Qty
2
3,5" Drive Bays Qty
2
HDD removable rack
1

Connectivity7

Connectors Location
Top
USB 2.0
1
USB 3.0
2
USB 3.2 Gen 2 Type-C
0
3.5mm Headset Jack (Audio+Mic)
1
3.5mm Headset Jack (Audio)
0
3.5mm Headset Jack (Mic)
0

Warranty & Docs1

Commercial Warranty
2 années
