Black Bird Vision
This mid-tower case takes ATX, Micro ATX and ITX motherboards. It comes with three 120 mm ARGB fans pre-installed (1 at the rear and 2 on the side). It supports a graphics card up to 410 mm, a CPU air cooler up to 165 mm and an AIO radiator up to 360 mm. SPCC steel, tempered glass and ABS chassis, with a glass side panel.
The Black Bird Vision puts your build on display

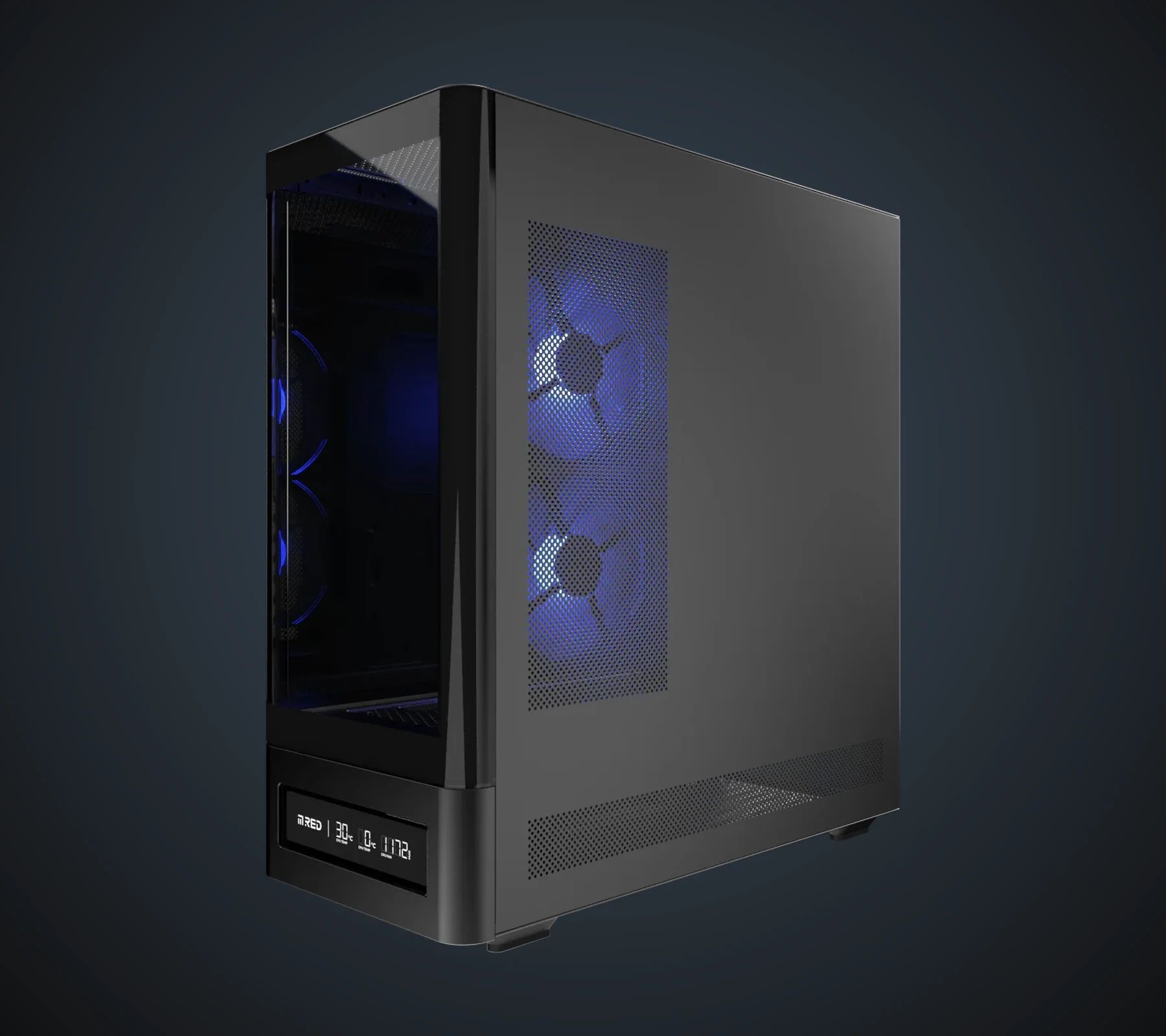

A mid-tower case with glass on the front and the left side, for an ATX, Micro ATX or ITX motherboard. What you get: a clear view of your components, from two angles.
Glass case: what tempered glass changes
Two glass panels, the front and the left side: the interior can be viewed head-on as well as from the side.
The chassis combines SPCC steel, tempered glass and ABS. The left side, in tempered glass, shows the whole build; the top, perforated, carries a dust filter.
Worth knowing: behind glass, the cabling shows too. Plan on sleeved cables and a little time to tidy them.
For storage, two combinations: two hard drives and two SSDs, or one hard drive and three SSDs, with a removable cage for the hard drive.
Display, connectors, expansion slots
At the bottom of the front panel, a digital display built into the base. At the bottom of the left side, one USB 3.0 port, two USB 2.0 ports and a combined headset jack. At the rear, seven expansion slots for the graphics card and add-in cards.
360 mm AIO watercooling: where to put it
Three 120 mm ARGB fans are supplied, two on the side and one at the rear; the rest is up to your build.
On the side, the case takes a 360 mm AIO watercooling radiator, or three 120 mm fans, or two 140 mm fans. The bottom takes three 120 mm fans, the rear a 120 mm radiator.
The three fans supplied are ARGB, and the lighting controller is ARGB-compatible. If you are aiming for air cooling, the CPU cooler can be up to 165 mm tall.
Mid-tower format: the dimensions to know
Before you find it a spot: 481 mm high, 210 mm wide, 445 mm deep, 7.1 kg empty. With its glass front, it's best placed facing you.
Compatibility: graphics card up to 410 mm, CPU cooler 165 mm
Three dimensions to check before ordering your components.
The graphics card can be 410 mm long, the CPU cooler 165 mm tall, and the power supply, in ATX, 180 mm.
The front panel is removable, and the Black Bird Vision is covered by a two-year commercial warranty.
Gallery
Tech specs
Datasheet (PDF)References1
- Serie Model
- BlackBird
Dimensions & Weight10
- Height
- 481 mm
- Width
- 210 mm
- Length
- 445 mm
- Net Weight
- 7.1 Kg
- Volume
- 44.95 L
- Box height
- 515 mm
- Box width
- 290 mm
- Box length
- 545 mm
- Gross weight
- 8.6 Kg
- Gross volume
- 81.4 L
Design14
- Usage
- Gaming
- Form Factor
- Mid Tower
- Color
- black
- Raw Materials
- SPCC, Tempered glass, ABS
- Mred Cover
- No
- Window Right Side Panel
- No
- Window Left Side Panel
- yes
- Window Raw Material
- Tempered glass
- LED Lights
- Yes
- ARGB Compatibility
- Yes
- Side Bar LED Qty
- No
- LED Controler
- Yes
- Controler IRDA Remote Control
- No
- Front panel wireless connectors
- No
Conception7
- Dust Filters Qty
- 1
- Top Dust Filter
- 1
- Front Dust Filter
- No
- Bottom Dust Filter
- No
- Removable Front Panel
- Yes
- Replaceable Front Panel
- Yes
- Removable Right Side Panel
- No
Compatibility & Clearance10
- Clearance Max. CPU Cooler
- 165 mm
- Motherboard Support
- MICRO ATX, ITX, ATX
- Clearance Max. Horizontal Graphic Card
- 410 mm
- Vertical VGA Extension Slots
- No
- Clearance Max. Vertical Graphic Card
- No
- Thickness Max. carte Vertical Graphic Card
- No
- Front Fan and Radiator Clearance
- No
- Top Fan and Radiator Clearance
- No
- Supported PSU Type
- ATX
- PSU Max Length
- 180 mm
Cooling10
- Pre-Installed Fans - Top
- No
- Pre-Installed Fans - Side
- 2x120 mm ARGB
- Pre-Installed Fans - Rear
- 1x120 mm ARGB
- Fan Support - Front
- 1*120
- Fan Support - Side
- 3*120 or 2x140, 2*120mm
- Fan Support - Bottom
- 3*120mm
- Radiator Support - Front
- 1*120
- Radiator Support - Top
- yes
- Radiator Support - Side
- 1*360
- Radiator Support - Rear
- 1*120
Extension slots6
- Horizontal PCI Slot Qty
- 7
- Vertical PCI Slot Qty
- 0
- Horizontal VGA support
- Non
- 2,5" Drive Bays Qty
- 2xHDD+2XSSD or 1XHDD+3XSSD
- 3,5" Drive Bays Qty
- Non
- HDD removable rack
- YES
Connectivity7
- Connectors Location
- left
- USB 2.0
- 2
- USB 3.0
- 1
- USB 3.2 Gen 2 Type-C
- 0
- 3.5mm Headset Jack (Audio+Mic)
- 1
- 3.5mm Headset Jack (Audio)
- 0
- 3.5mm Headset Jack (Mic)
- 0
Warranty & Docs1
- Commercial Warranty
- 2 années
