Black Bird Mesh
This mid-tower case houses a build based on an ATX, Micro ATX or ITX motherboard. Three 120 mm ARGB fans are pre-installed (1 at the rear and 2 on the side). It supports a graphics card up to 410 mm, a CPU air cooler up to 165 mm and an AIO radiator up to 360 mm. In terms of build, the chassis is made of SPCC steel.

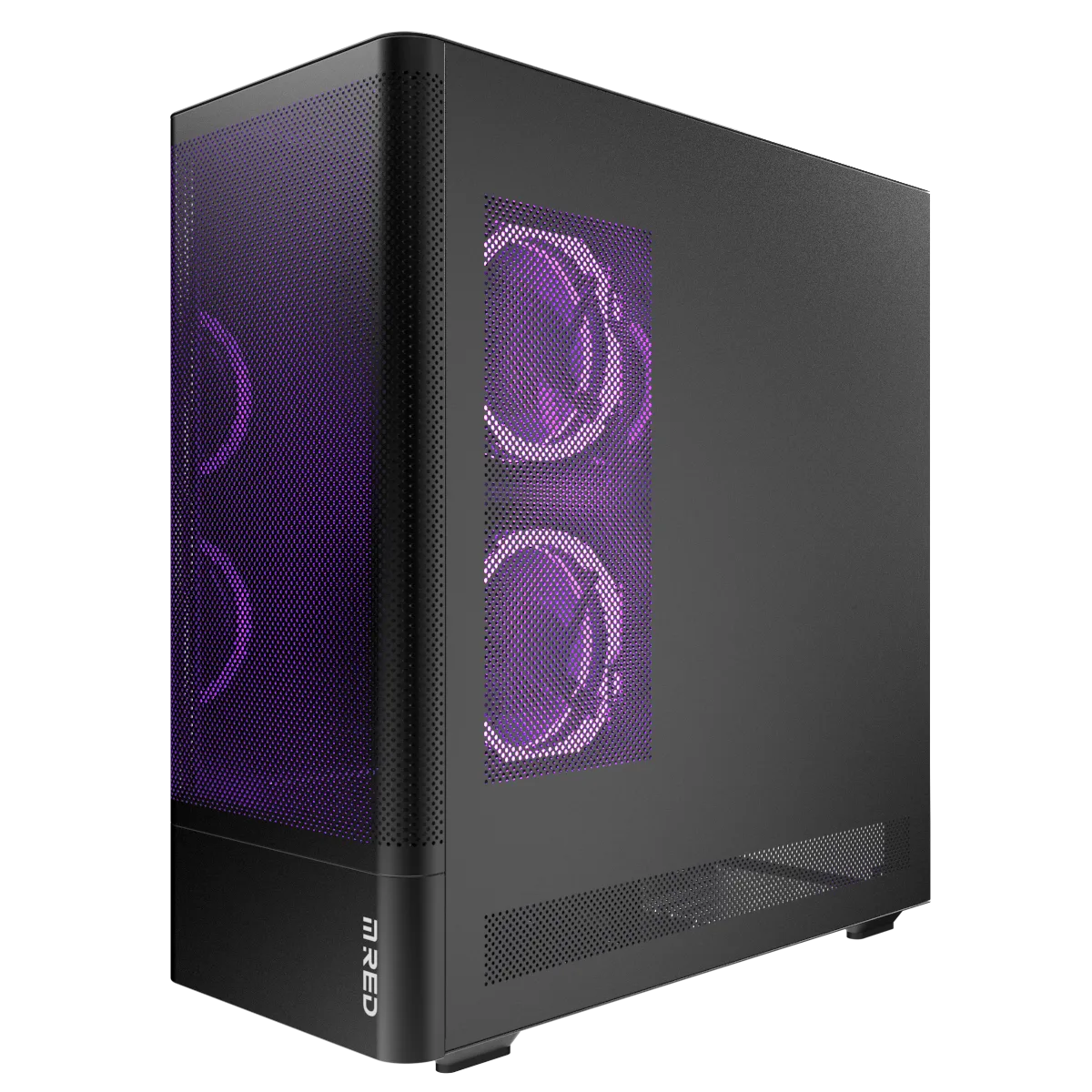

The Black Bird Mesh breathes through its whole front
Mesh front, glass side panel, three ARGB fans already in place. A mid-tower case ready to run as soon as an ATX, Micro ATX or ITX build is assembled.
Mesh front and airflow: three ARGB fans pre-installed
Two fans on the side, one at the rear: the airflow is there before the first component.
The Black Bird Mesh comes with three 120 mm ARGB fans pre-installed. A dedicated lighting button comes with them, at the bottom of the case.
Chassis in SPCC steel, left-hand side in tempered glass : what spins is on show.
On the top, a dust filter guards the air intake.
Connectors and ARGB fans up close
At the bottom of the left side: one USB 3.0 port, two USB 2.0 ports, a combined headset jack, the lighting button. Behind the perforations, two 120 mm ARGB fans. At the rear, the third, above the seven expansion slots.
360 mm AIO radiator on top
The top takes a 240, 280 or 360 mm AIO watercooling radiator — or three 120 mm fans, or two 140 mm fans.
The bottom takes three 120 mm fans, the rear a 120 mm radiator. On the air side, a CPU cooler up to 165 mm tall.
Mesh mid-tower: 481 × 210 × 445 mm
6.1 kg empty, 44.95 litres. A mid-tower footprint that slides under the desk and still leaves room for a large graphics card.
Up to 410 mm of graphics card, seven slots
Long graphics card, large CPU cooler, ATX power supply: the dimensions keep up.
410 mm for the graphics card, 165 mm for the CPU cooler, 180 mm for the ATX power supply. Seven expansion slots at the rear.
Storage: two hard drives and two SSDs, or one hard drive and three SSDs, with a removable cage. Commercial warranty: two years.
Gallery
Tech specs
Datasheet (PDF)References1
- Serie Model
- BlackBird
Dimensions & Weight10
- Height
- 481 mm
- Width
- 210 mm
- Length
- 445 mm
- Net Weight
- 6.1 Kg
- Volume
- 44.95 L
- Box height
- 515 mm
- Box width
- 290 mm
- Box length
- 545 mm
- Gross weight
- 7.84 Kg
- Gross volume
- 81.4 L
Design16
- Usage
- Gaming
- Form Factor
- Mid Tower
- Color
- Black
- Raw Materials
- SPCC
- Mred Cover
- No
- Window Right Side Panel
- SPCC
- Window Left Side Panel
- Tempered glass
- Window Raw Material
- Tempered glass
- LED Lights
- Yes
- Motherboard LED Compatibility Brands
- No
- ARGB Compatibility
- No
- Side Bar LED Qty
- No
- LED Controler
- Yes
- LED Controler Operation Mode
- No
- Controler IRDA Remote Control
- No
- Front panel wireless connectors
- No
Conception7
- Dust Filters Qty
- 1
- Top Dust Filter
- Yes
- Front Dust Filter
- No
- Bottom Dust Filter
- No
- Removable Front Panel
- Yes
- Replaceable Front Panel
- Yes
- Removable Right Side Panel
- No
Compatibility & Clearance10
- Clearance Max. CPU Cooler
- 165 mm
- Motherboard Support
- Micro ATX, ITX, ATX
- Clearance Max. Horizontal Graphic Card
- 410 mm
- Vertical VGA Extension Slots
- No
- Clearance Max. Vertical Graphic Card
- No
- Thickness Max. carte Vertical Graphic Card
- No
- Front Fan and Radiator Clearance
- No
- Top Fan and Radiator Clearance
- No
- Supported PSU Type
- ATX
- PSU Max Length
- 180 mm
Cooling9
- Pre-Installed Fans - Side
- 2x120mm ARGB
- Pre-Installed Fans - Rear
- 1*120mm ARGB
- Fan Support - Top
- 3*120, 2*140
- Fan Support - Side
- 2*120
- Fan Support - Bottom
- 3*120
- Fan Support - Rear
- 1*120
- Watercooling System Support
- Yes
- Radiator Support - Top
- 360, 240, 280
- Radiator Support - Rear
- 120
Extension slots6
- Horizontal PCI Slot Qty
- 7
- Vertical PCI Slot Qty
- 0
- Horizontal VGA support
- Non
- 2,5" Drive Bays Qty
- 2xHDD+2XSSD or 1XHDD+3XSSD
- 3,5" Drive Bays Qty
- Non
- HDD removable rack
- YES
Connectivity7
- Connectors Location
- left side bottom
- USB 2.0
- 2
- USB 3.0
- 1
- USB 3.2 Gen 2 Type-C
- 0
- 3.5mm Headset Jack (Audio+Mic)
- 1
- 3.5mm Headset Jack (Audio)
- 0
- 3.5mm Headset Jack (Mic)
- 0
Warranty & Docs1
- Commercial Warranty
- 2 années
