Serenity 240
This all-in-one liquid cooler pairs a 240 mm aluminium radiator with two 120 mm ARGB fans. Supported sockets: Intel LGA1700 / 1200 / 115x / 20xx and AMD AM5 / AM4. Airflow of 45.6 m³/h and pressure of 1.3 mmH2O: its hydraulic bearing fans spin from 800 to 1800 RPM without exceeding 30.5 dB(A). The pump stays below 23 dB(A). It comes with a 2-year warranty.
The Serenity 240 cools your processor with measure
A 240 mm AIO watercooling unit that keeps things restrained: an aluminium radiator, two 120 mm ARGB fans and a pump block that installs on Intel and AMD sockets. Every element is described by its figures, and that is what lets you put your build together calmly.
240 mm AIO watercooling: a compact configuration
Two 120 mm fans, a radiator, a pump block: the essentials of liquid cooling, with nothing superfluous.
The aluminium radiator measures 274 mm long by 120 mm wide. It takes its two 120 mm fans, supplied in the kit.
The pump block fits within 72 × 83 × 68 mm. It draws 5 W, runs on 12 V and connects via a 3-pin connector.
Pump and fans each state an MTBF of 30,000 hours, and the kit is covered by a two-year commercial warranty.
ARGB fans, fins and braided sleeving in close-up
A 120 mm fan ringed by its ARGB halo. The fins of the aluminium radiator, which the airflow passes through. Under the pump block, the contact plate and the braided sleeving running to the radiator.
Cooling under control: the pump at 23 dB(A), the fans at 30.5
The noise of an AIO liquid cooler doesn't come down to a single figure. The Serenity 240 pump peaks at 23 dB(A) ; its fans, at 30.5 dB(A) maximum. Two sources, two values, so you know what you're installing.
Built on hydraulic bearings, the fans spin from 800 to 1,800 rpm and connect via a 4-pin connector.
They move 45.6 m³/h of air, with a static pressure of 1.28 mmH2O through the radiator fins.

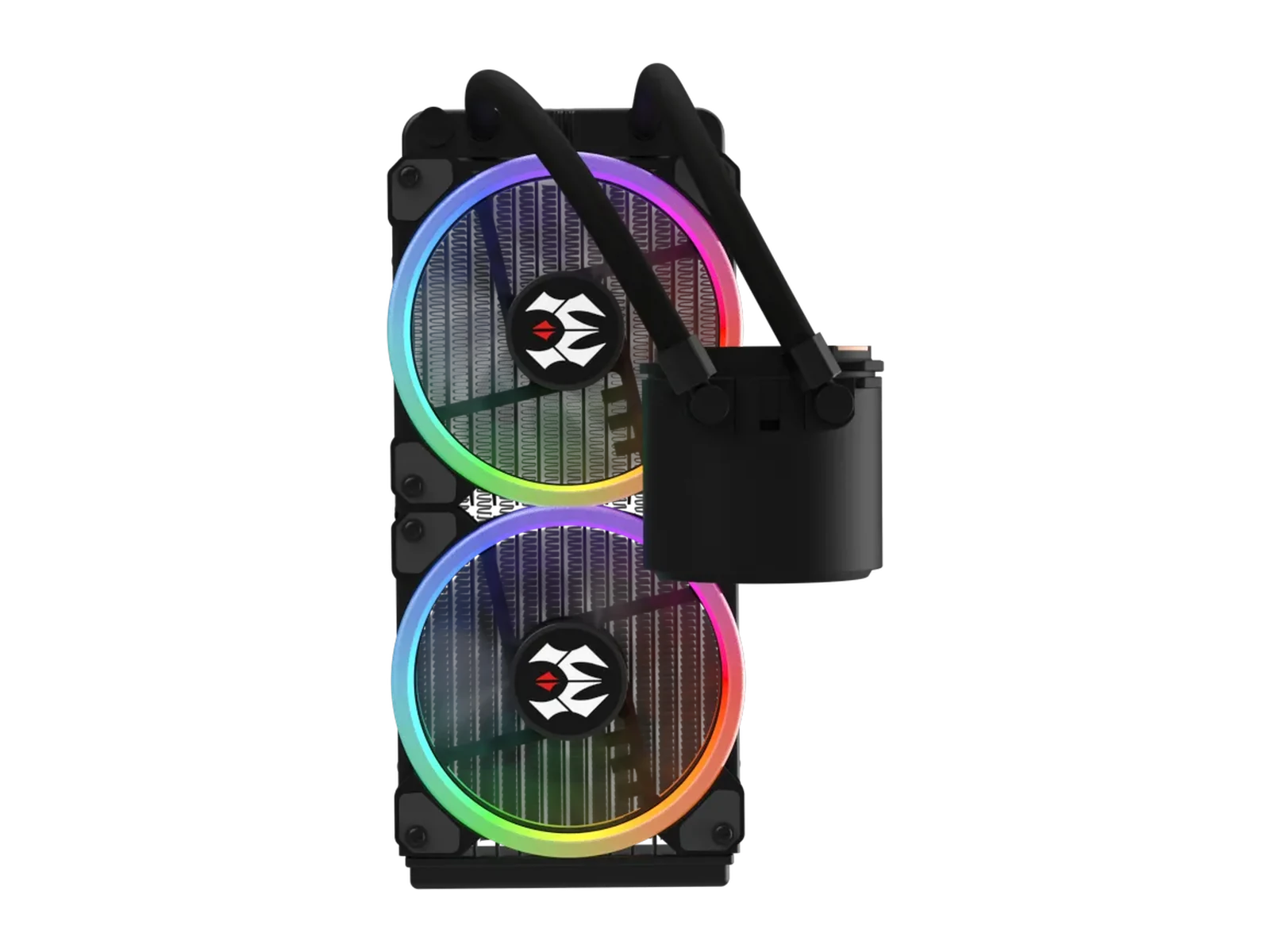

ARGB lighting: the Serenity 240 from the front, side and back
Two ARGB rings on the fans, a lit circle around the M.RED logo on the pump block: the lighting complements your build without dominating it. The kit ships without a lighting controller.
Intel and AMD sockets: where to mount the Serenity 240
From LGA1700 and AM5 to older platforms, the pump block finds its place.
On the Intel side: LGA1700, LGA1200, LGA115x and LGA20xx.
On the AMD side: AM5 and AM4, along with the AM3+, AM3, AM2+, AM2, FM2+, FM2 and FM1 platforms.
Inside the case, a 240 mm mount is all it takes — two 120 mm fans side by side — to fit the radiator.
Gallery
Tech specs
Datasheet (PDF)References1
- Serie Model
- Serenity
Dimensions & Weight8
- Height
- 139 mm
- Width
- 270 mm
- Length
- 325 mm
- Net Weight
- 1.975 Kg
- Volume
- 12.2 L
- Box height
- 345 mm
- Box width
- 575 mm
- Box length
- 580 mm
Design4
- Usage
- GAMING/CPU cooling
- Color
- BLACK
- ARGB
- Yes
- Controller
- No
CPU Socket2
- Intel
- LGA1700/20XX/1200/115X
- AMD
- FM1/FM2/FM2+AM2/AM2+AM3/AM3+AM4/AM5
Radiator5
- Material
- Aluminum
- Height
- 52 mm
- Width
- 120 mm
- Length
- 274 mm
- Radiator size
- 120 mm
Pump8
- Height
- 68 mm
- Width
- 72 mm
- Length
- 83 mm
- MTBF
- 30000 h
- Noise level MAX
- 23 dB(A)
- Connector
- 3-pins
- Rated voltage
- 12 VDC
- Power Consumption
- 5 W
Fan(s)15
- Height
- 25 mm
- Width
- 120 mm
- Length
- 120 mm
- Quantity
- 2
- ARGB
- Yes
- RPM
- 800 to 1800
- Airflow m3/h
- 45.56
- Noise level MAX
- 30.5 dB(A)
- Pressure
- 1.28 mmH2O
- Bearing
- hydraulic Bearing
- MTBF
- 30000 h
- Connector
- 4-pins
- Rated voltage
- 12 VDC
- Rated current
- 0.37 A
- Safety current
- 0.32 A
Warranty & Docs1
- Commercial Warranty
- 2 années
