AIO 240mm ONYX
This kit from the Onyx range combines a 240 mm aluminium radiator with two 120 mm ARGB fans. It fits Intel LGA1700 / 1200 / 115x / 20xx and AMD AM5 / AM4 sockets. Its hydraulic bearing fans spin from 800 to 1800 RPM at up to 30.5 dB(A), with an airflow of 43.5 m³/h and a pressure of 1.1 mmH2O. The pump, for its part, tops out at 23 dB(A).

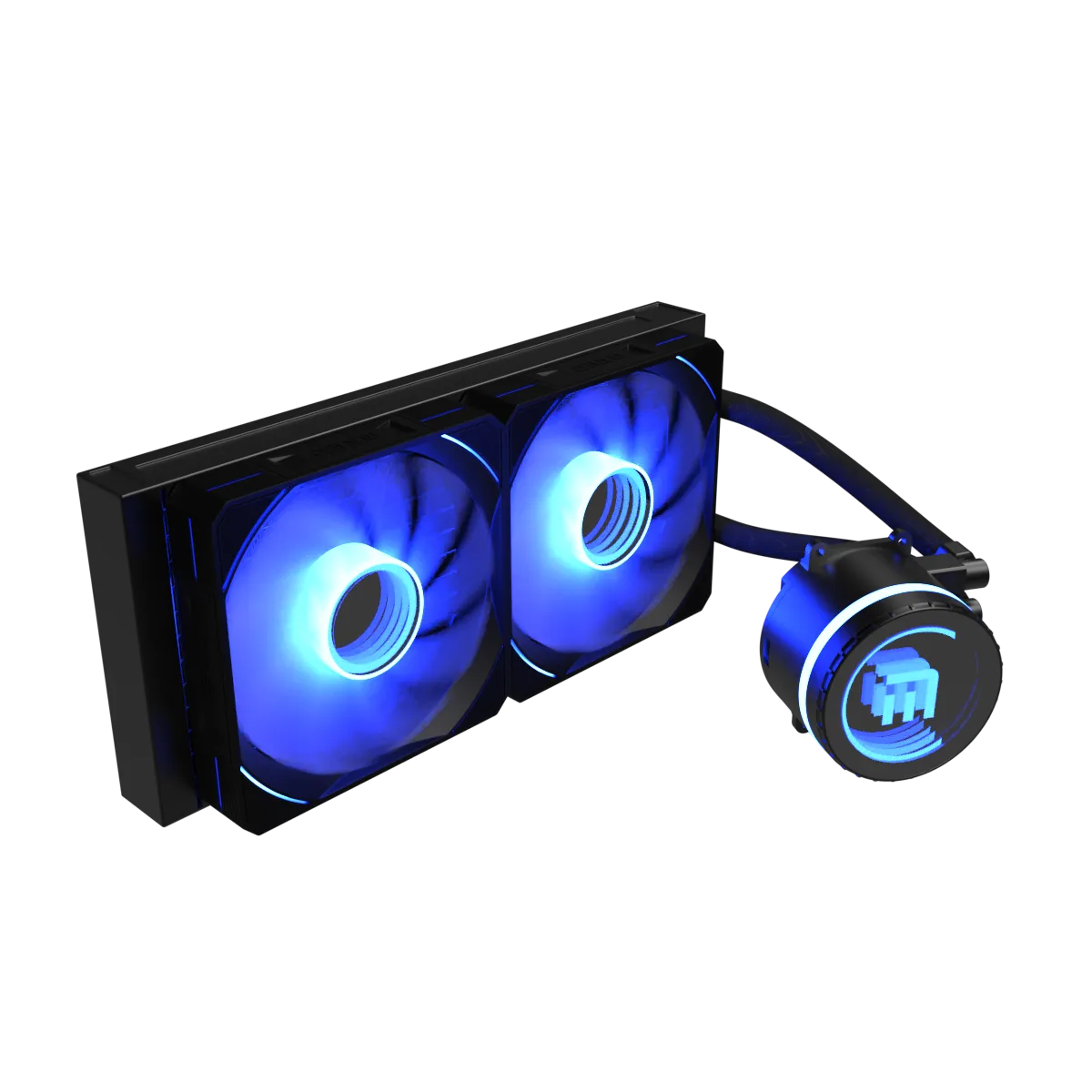

The Onyx 240 carves an AIO liquid cooler out of black
A 240 mm aluminium radiator, two 120 mm ARGB fans, a pump block stamped with the M.RED monogram. A black, dense line that the light only underlines.
Illuminated pump block: the M.RED monogram on the processor
A black cylinder, a ring of light, the monogram at the centre: this is the part on show, sitting on the processor.
The Onyx pump block measures 72 × 83 × 68 mm. It runs on 12 V, draws 5 W and connects via a 3-pin connector.
Its noise level peaks at 23 dB(A), and its MTBF is 30,000 hours.
ARGB ring, monogram, contact plate: the Onyx up close
The ARGB ring at the heart of a 120 mm fan. The pump block cover, ringed with light around the M.RED monogram. Below, the contact plate and the braided tubing fittings.
Airflow and static pressure: the figures behind the Onyx fans
A radiator fan is judged on two figures: the air it moves, and the force with which it pushes that air through the fins.
The Onyx's two 120 mm fans are rated at an airflow of 43.5 m³/h and a static pressure of 1.1 mmH2O.
On a hydraulic bearing, they spin from 800 to 1,800 rpm and stay within 30.5 dB(A). They connect via a 4-pin connector.
At 25 mm thick, they mount on a 277 mm aluminium radiator.
240 mm AIO radiator: front, side, back
277 mm long and 120 mm wide for the radiator, two 25 mm thick fans, a compact pump block: the Onyx is measured before it is mounted, on a 240 mm location.
AIO compatibility: Intel LGA1700 and AMD AM5 first
The Onyx mounts on Intel LGA1700 and AMD AM5 sockets, and on the generations that came before them.
Intel: LGA1700, LGA1200, LGA115x and LGA20xx. AMD: AM5 and AM4, then AM3+, AM3, AM2+, AM2, FM2+, FM2 and FM1.
No lighting controller is included with the kit. Commercial warranty: two years.
Gallery
Tech specs
Datasheet (PDF)References1
- Serie Model
- Onyx
Dimensions & Weight8
- Height
- 139 mm
- Width
- 270 mm
- Length
- 325 mm
- Net Weight
- 2.075 Kg
- Volume
- 12.2 L
- Box height
- 345 mm
- Box width
- 575 mm
- Box length
- 580 mm
Design4
- Usage
- GAMING/CPU cooling
- Color
- BLACK
- ARGB
- Yes
- Controller
- No
CPU Socket2
- Intel
- LGA1700/20XX/1200/115X
- AMD
- FM1/FM2/FM2+AM2/AM2+AM3/AM3+AM4/AM5
Radiator5
- Material
- Aluminum
- Height
- 52 mm
- Width
- 120 mm
- Length
- 277 mm
- Radiator size
- 120 mm
Pump8
- Height
- 68 mm
- Width
- 72 mm
- Length
- 83 mm
- MTBF
- 30000 h
- Noise level MAX
- 23 dB(A)
- Connector
- 3-pins
- Rated voltage
- 12 VDC
- Power Consumption
- 5 W
Fan(s)15
- Height
- 25 mm
- Width
- 120 mm
- Length
- 120 mm
- Quantity
- 2
- ARGB
- Yes
- RPM
- 800 to 1800
- Airflow m3/h
- 43.5
- Noise level MAX
- 30.5 dB(A)
- Pressure
- 1.1 mmH2O
- Bearing
- hydraulic Bearing
- MTBF
- 30000 h
- Connector
- 4-pins
- Rated voltage
- 12 VDC
- Rated current
- 0.37 A
- Safety current
- 0.32 A
Warranty & Docs1
- Commercial Warranty
- 2 années
