AIO 360mm ONYX
A 360 mm aluminium radiator and three 120 mm ARGB fans make up this Onyx kit. Compatible with Intel LGA1700 / 1200 / 115x / 20xx and AMD AM5 / AM4 sockets. Airflow of 43.5 m³/h and pressure of 1.1 mmH2O: its hydraulic bearing fans spin from 800 to 1800 RPM without exceeding 30.5 dB(A). The pump, for its part, tops out at 23 dB(A). 2-year warranty.
The Onyx 360 brings its 360 mm AIO to demanding builds
Three 120 mm ARGB fans, an aluminium radiator, mounting for Intel LGA1700 and AMD AM5: the Onyx 360 describes itself in exact figures.
120 mm ARGB fans: 43.5 m³/h and 1.1 mmH2O each
Three fans supplied for the 360 mm radiator, each specified to the decimal.
Each fan is rated at an airflow of 43.5 m³/h and a static pressure of 1.1 mmH2O, across a range of 800 to 1800 rpm. Hydraulic bearing, 12 V power, 4-pin connector.
Their ARGB lighting starts at the hub and diffuses through the blades: a design specific to the Onyx, extended by the illuminated ring on the pump block.
Ringed pump, mount, branded radiator: the Onyx up close

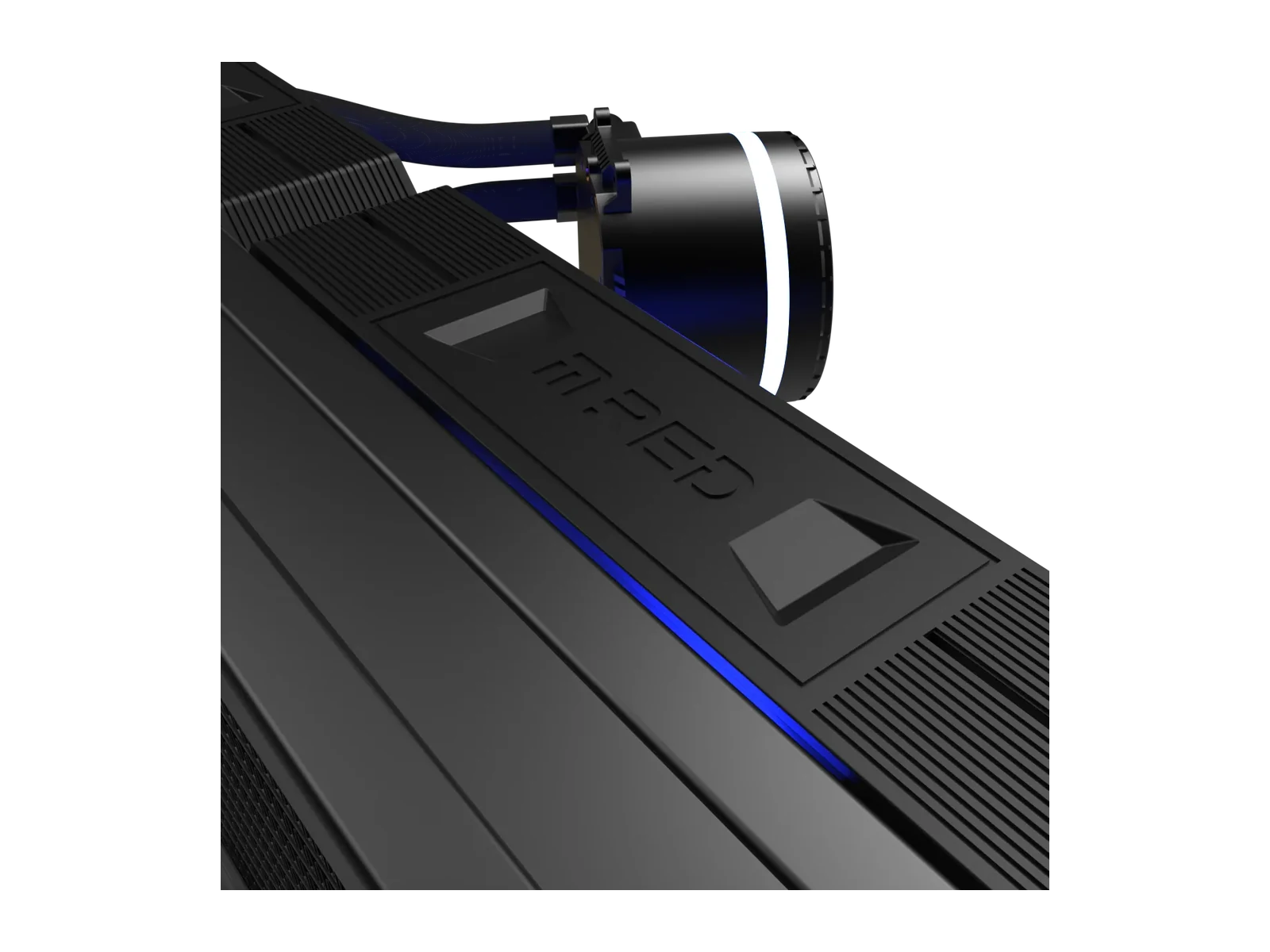

The pump cover, with its illuminated M.RED logo ringed in white. Then the block mount and its contact plate, ready to sit on the processor. Finally the side of the radiator, bearing the M.RED name and underlined by a line of light.
Intel LGA1700 and AMD AM5 sockets: the Onyx 360 and its mounts
On the Intel side, the Onyx 360 mounts on the LGA1700, 1200, 115x and 20xx sockets. On the AMD side, onAM5 and AM4, and back to the AM3+, AM3, AM2+, AM2, FM2+, FM2 and FM1 generations.
On the AMD side, the list covers AM5 and the AM4 it replaces: moving from one to the other does not mean changing watercooling.
397 mm AIO radiator: the Onyx from the front, the side and the back

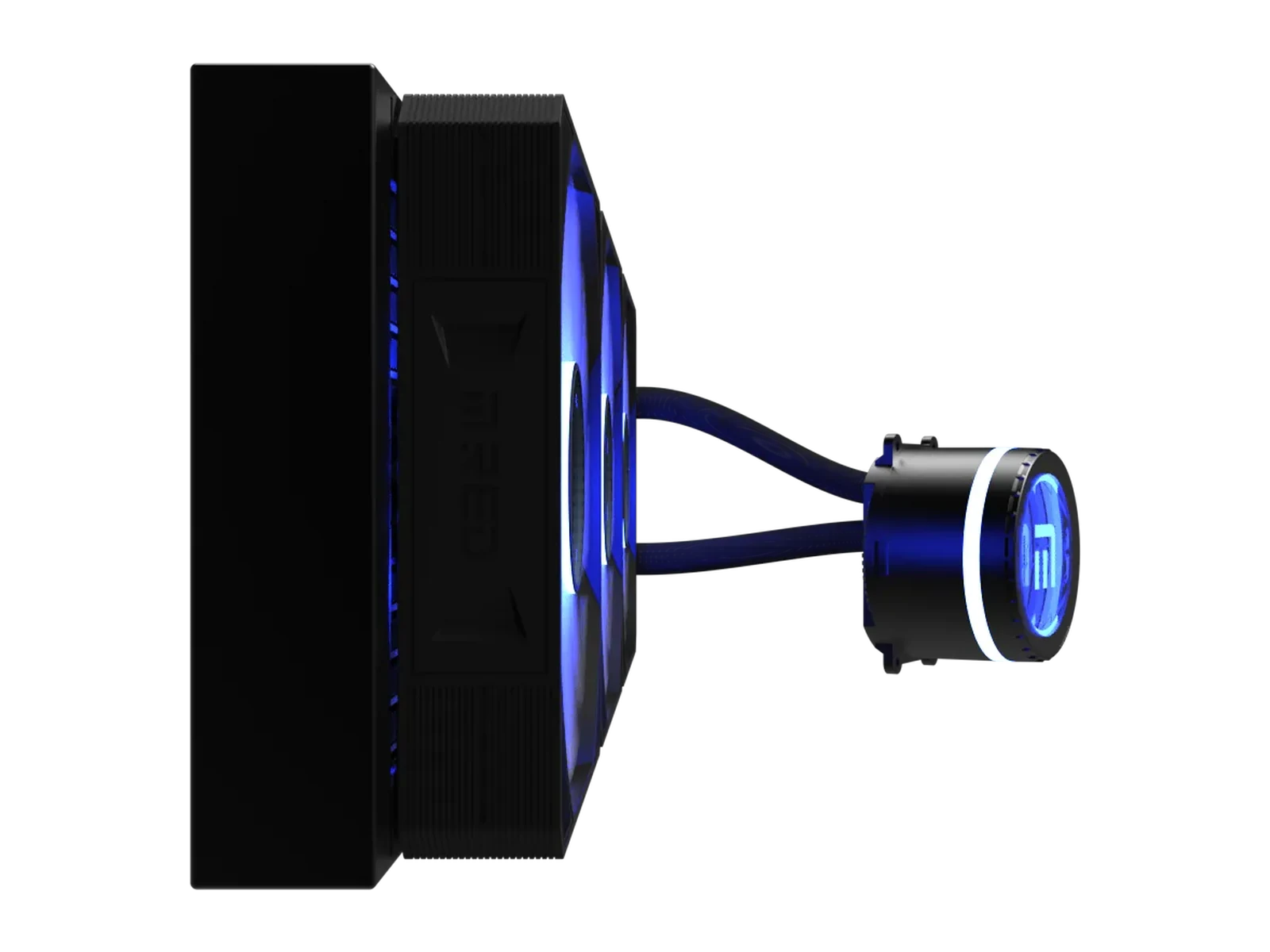

397 mm of radiator, 2.7 kg in total: the three fans at the front, the pump block linked by two tubes, and a plain back, with no frills.
5 W pump block: dimensions, noise and MTBF, down to the figure
Before mounting the Onyx 360, these figures say exactly what you are installing.
The pump block measures 72 × 83 × 68 mm, draws 5 W at 12 V and connects with 3 pins. Its noise level peaks at 23 dB(A), that of the fans at 30.5 dB(A): two figures to read separately.
Pump and fans each state an MTBF of 30,000 hours, and the whole unit is covered by a two-year commercial warranty.
Gallery
Tech specs
Datasheet (PDF)References1
- Serie Model
- Onyx
Dimensions & Weight8
- Height
- 139 mm
- Width
- 243 mm
- Length
- 480 mm
- Net Weight
- 2.7 Kg
- Volume
- 16.21 L
- Box height
- 270 mm
- Box width
- 505 mm
- Box length
- 725 mm
Design4
- Usage
- GAMING/CPU cooling
- Color
- BLACK
- ARGB
- Yes
- Controller
- No
CPU Socket2
- Intel
- LGA1700/20XX/1200/115X
- AMD
- FM1/FM2/FM2+AM2/AM2+AM3/AM3+AM4/AM5
Radiator5
- Material
- Aluminum
- Height
- 52 mm
- Width
- 120 mm
- Length
- 397 mm
- Radiator size
- 120 mm
Pump8
- Height
- 68 mm
- Width
- 72 mm
- Length
- 83 mm
- MTBF
- 30000 h
- Noise level MAX
- 23 dB(A)
- Connector
- 3-pins
- Rated voltage
- 12 VDC
- Power Consumption
- 5 W
Fan(s)15
- Height
- 25 mm
- Width
- 120 mm
- Length
- 120 mm
- Quantity
- 3
- ARGB
- Yes
- RPM
- 800 to 1800
- Airflow m3/h
- 43.5
- Noise level MAX
- 30.5 dB(A)
- Pressure
- 1.1 mmH2O
- Bearing
- hydraulic Bearing
- MTBF
- 30000 h
- Connector
- 4-pins
- Rated voltage
- 12 VDC
- Rated current
- 0.37 A
- Safety current
- 0.32 A
Warranty & Docs1
- Commercial Warranty
- 2 années
