MRR-850A (VP2) Black
With 850 W continuous, this power supply is 80 PLUS Gold certified. Fully modular, it ships with flat cables. ATX 3.1 compatible, it powers the graphics card through a 12V-2x6 connector (PCIe 5.1) and three 6+2-pin PCIe connectors. Cooling relies on a 140 mm hydraulic bearing fan, measured at 24 dB(A) at 20% load. 10-year warranty.
The MRR-850A (VP2) holds 850 W continuous
A fully modular ATX 3.1 power supply, 80 PLUS Gold certified, sized for a current gaming build and its recent graphics card.
850 W power supply, 80 PLUS Gold certified
All the power runs through a single +12 V rail: no distribution to watch between components.
The single +12 V rail delivers 70 A and supplies up to 840 W on its own: most of the 850 W is available where the graphics card and the processor need it.

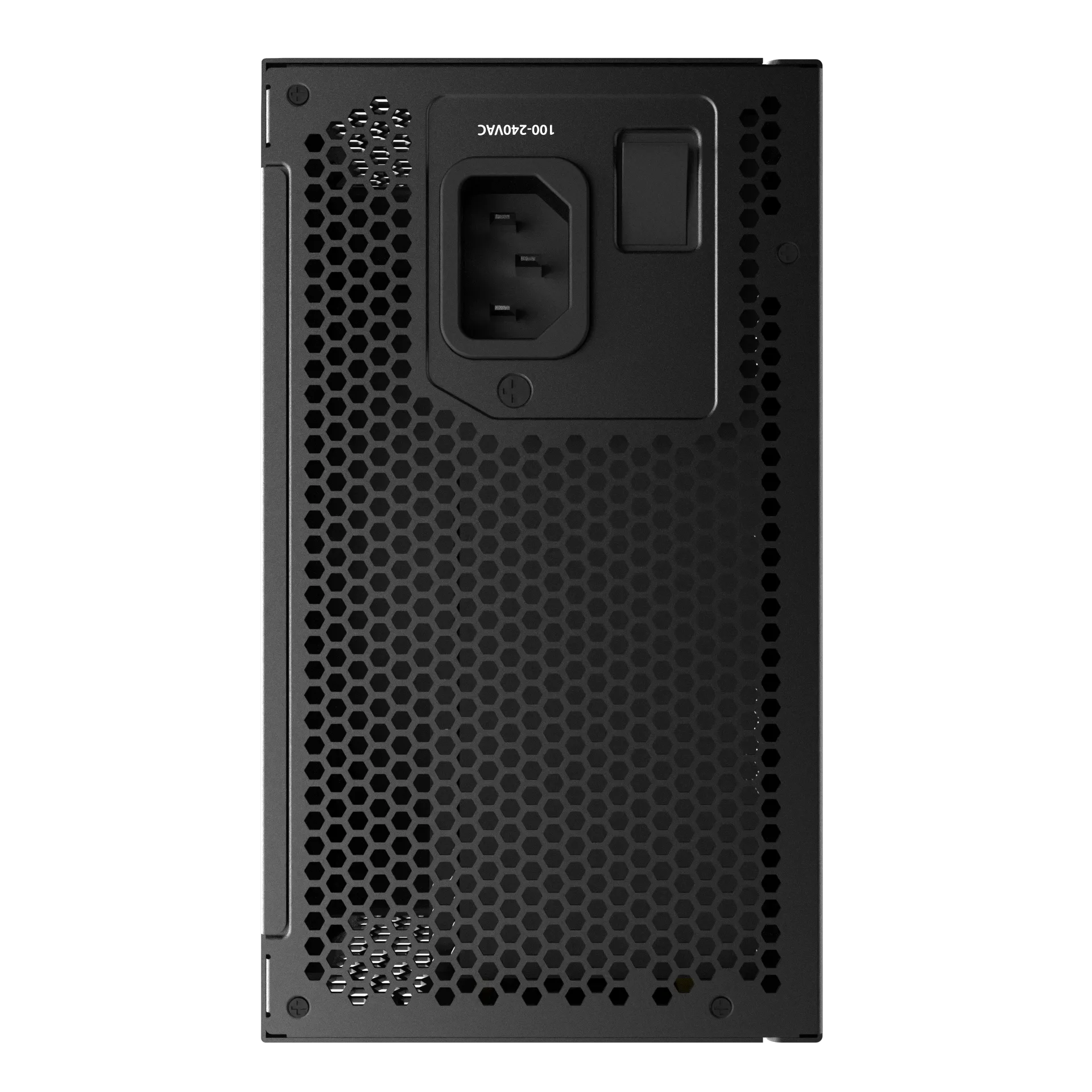

The 80 PLUS Gold certification sets the efficiency level. On the mains side: active PFC and 100-240 V input.
Connectors, fan, certification: the power supply in detail

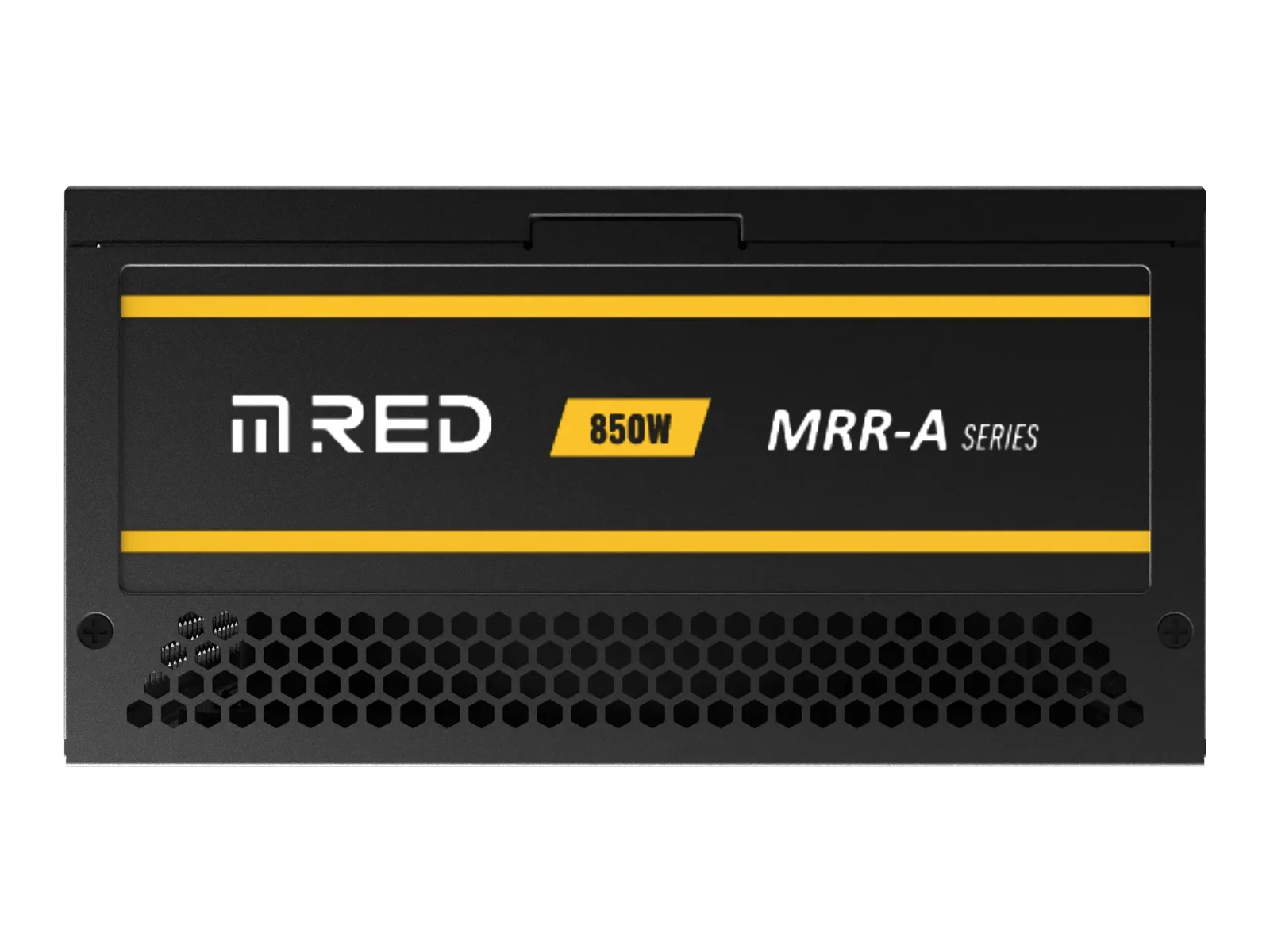

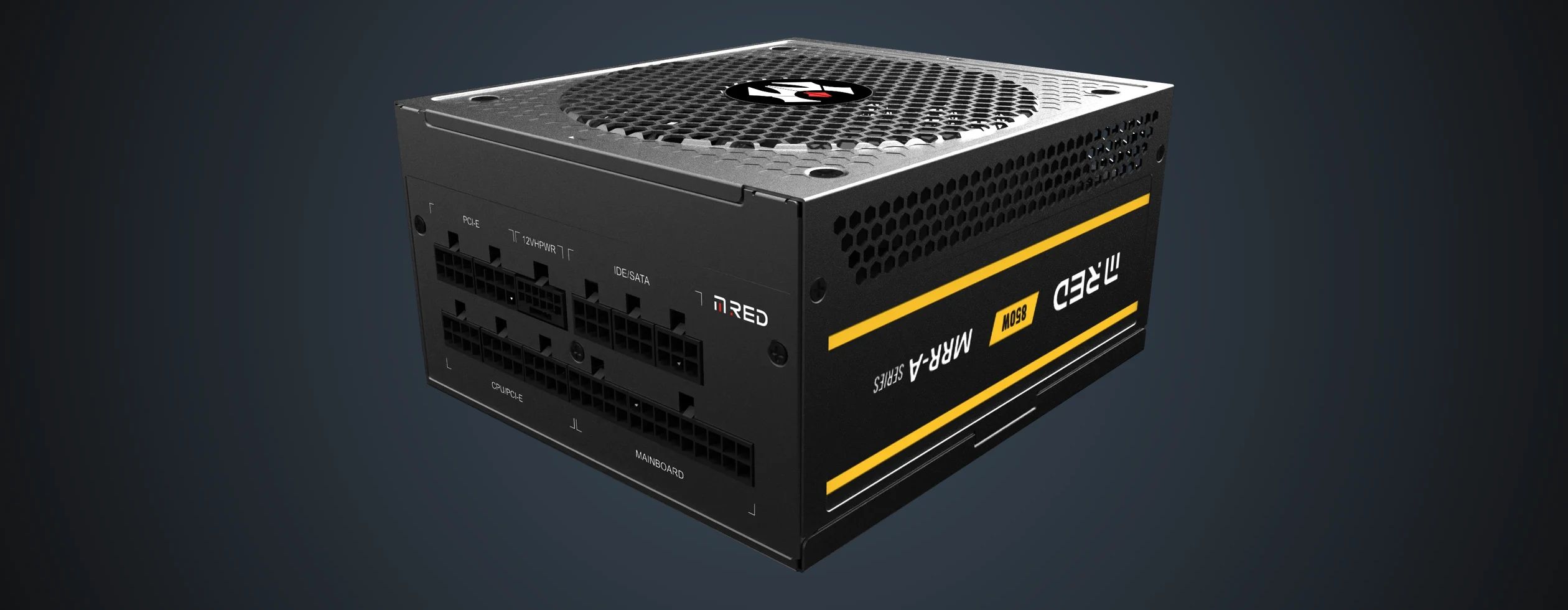

The modular sockets for the graphics card and the processor, with the 12V-2x6 connector. The honeycomb grille of the 140 mm fan. The 80 PLUS Gold badge on the side.
ATX 3.1 compatible, fully modular cabling
The MRR-850A (VP2) is ATX 3.1 compatible : a 12V-2x6 (PCIe 5.1, 12VHPWR compatible) connector powers recent graphics cards directly, and three PCIe 6+2-pin connectors serve the rest.
It is fully modular and supplied with ten flat cables: ATX 20+4-pin for the motherboard, two EPS 4+4 for the processor, eight SATA connectors for storage. You only plug in what your build uses.
Standard ATX format: 150 × 86 × 168 mm
168 mm deep for 1.5 kg: the MRR-850A (VP2) fits in cases that take an ATX power supply, with four mounting screws and two cable ties supplied.
Cooling: 140 mm fan with hydraulic bearing
Fan speed follows temperature, up to 2000 rpm.
A 140 mm fan with a brushless DC motor and a hydraulic bearing cools the whole unit. Measured at 24 dB(A) at 20 % load, 30 dB(A) at 50 % and 40 dB(A) at full load.
Seven protections watch over the build: OCP, OVP, UVP, SCP, OPP, OTP and SIP. The MRR-850A (VP2) is covered by a 10-year warranty.
Gallery
Tech specs
Datasheet (PDF)References1
- Serie Model
- MRR
Dimensions & Weight10
- Height
- 86 mm
- Width
- 150 mm
- Length
- 168 mm
- Net Weight
- 1.5 Kg
- Volume
- 2.167 L
- Box height
- 130 mm
- Box width
- 234 mm
- Box length
- 363 mm
- Gross weight
- 2.85 Kg
- Gross volume
- 11.042 L
Design3
- Usage
- Gaming/Work Station
- Color
- Black
- ARGB
- No
General Data12
- Continuous power
- 850W
- Peak Power
- 850W
- Form Factor
- ATX 3.1
- Modularity
- 100% modular
- Wire-free design
- Yes
- Input Voltage (Vac)
- 100-240
- Input Frequency
- 47-63
- Input current
- 15-5A
- PFC
- APFC
- Sand-by Power
- <0.5
- Average life time (h / 25°C)
- >50000
- Operating temperature up to (°C)
- 0-40℃
Output15
- 12V rails (multi-rail operation)
- 1
- 12V single rail operation
- Yes
- Overclocking key
- No
- +3.3V
- 20, 0,5
- +12V1
- 70 A
- +12V2
- /
- +12V3
- /
- +12V4
- /
- +12V5
- /
- +12V6
- /
- +5Vsb
- 2.5 A
- Max. combined power 12V
- 840 W
- Max. combined power 3.3V + 5V
- 130 W
- Hold-up time at 100% load
- 16>
- Power good signal
- 100-150
Cooling technology10
- Fan type
- Silent Fan
- +SilentWings
- Yes
- Motor technology
- Brushless DC fan
- Bearing technology
- hydraulic Bearing
- Fan size
- 140*25
- Max. fan speed (rpm), temperature-dependent
- 2000 rpm
- Temperature control for case fans
- Yes
- dB(A) at 20% load
- 24.01
- dB(A) at 50% load
- 30.11
- dB(A) at 100% load
- 40.01
Protection7
- OCP (over current protection)
- Yes
- OVP (over Voltage protection)
- Yes
- UVP (under Voltage protection)
- Yes
- SCP (short circuit protection)
- Yes
- OTP (over temperature protection)
- Yes
- OPP (over power protection)
- Yes
- SIP (Surge & Inrush Protection)
- Yes
Safety certification10
- CE
- Yes
- CB
- Yes
- TÜV
- Yes
- FCC
- Yes
- cRUus
- No
- cTUVus
- Yes
- RCM (Australia)
- No
- BSMI
- No
- CU (Russia)
- Yes
- CCC
- No
Eco Efficiency1
- 80 PLUS certification
- 80+GOLD
Environmental directives4
- Energy Star
- No
- ErP
- No
- WEEE
- Yes
- RoHs
- Yes
Connectors16
- Cable management
- 100% modular
- Cables type
- Flat cables
- Flat cables
- Yes
- All-in-one cable (SATA/PATA/FDD)
- No
- No. of cables
- Modular 10pcs
- ATX-Motherboard (20+4-pin)
- 1
- P8 (CPU)
- /
- P4+4 (CPU)
- 2
- P4 (CPU)
- /
- PCI-e 6-pin (GPU)
- /
- PCI-e 6+2-pin (GPU)
- 3
- PATA
- 3
- SATA
- 8
- FDD (Floppy)
- 1
- PCIe 5.1
- 1
- External fan connectors
- /
Accessories6
- Thumb screws
- /
- Screws
- 4
- Cable ties
- 2
- Velcro cable ties
- /
- Box/Bag for PSU/Cables
- Yes
- SFX-to-ATX adapter bracket
- No
Warranty & Docs1
- Commercial Warranty
- 10 années
