MRR-1300AP (VP2) Black

Ref.: MRR-1300AP-VP2EAN: 3700755692105

This 1300 W power supply is 80 PLUS Platinum certified. Its flat cables connect as needed: it is fully modular. ATX 3.1 compatible, it powers the graphics card through a 12V-2x6 connector (PCIe 5.1) and four 6+2-pin PCIe connectors. Its 140 mm hydraulic bearing fan produces 24.2 dB(A) at 20% load. Commercial warranty: 10 years.

View specs

Where to buy?

The MRR-1300AP delivers 1300 W at 80 PLUS Platinum level

For the most demanding builds, a PC power supply rated at 1300 W continuous, ATX 3.1 compatible and fully modular, with almost all of its power delivered through the +12 V rail.

MRR-1300AP (VP2) Black PC power supply seen at three-quarter angle, modular panel side

80 PLUS Platinum certification and active PFC, from 100 to 240 V

In the 80 PLUS programme, Platinum is the tier above Gold.

The MRR-1300AP is 80 PLUS Platinum certified. Its power factor correction is active (APFC), and it accepts an input voltage of 100 to 240 V, 47 to 63 Hz.

Its compliance is attested by the CE, CB, FCC, TÜV and cTUVus markings, and it meets the RoHS and WEEE directives.

Motherboard, label, 140 mm fan: the MRR-1300AP up close

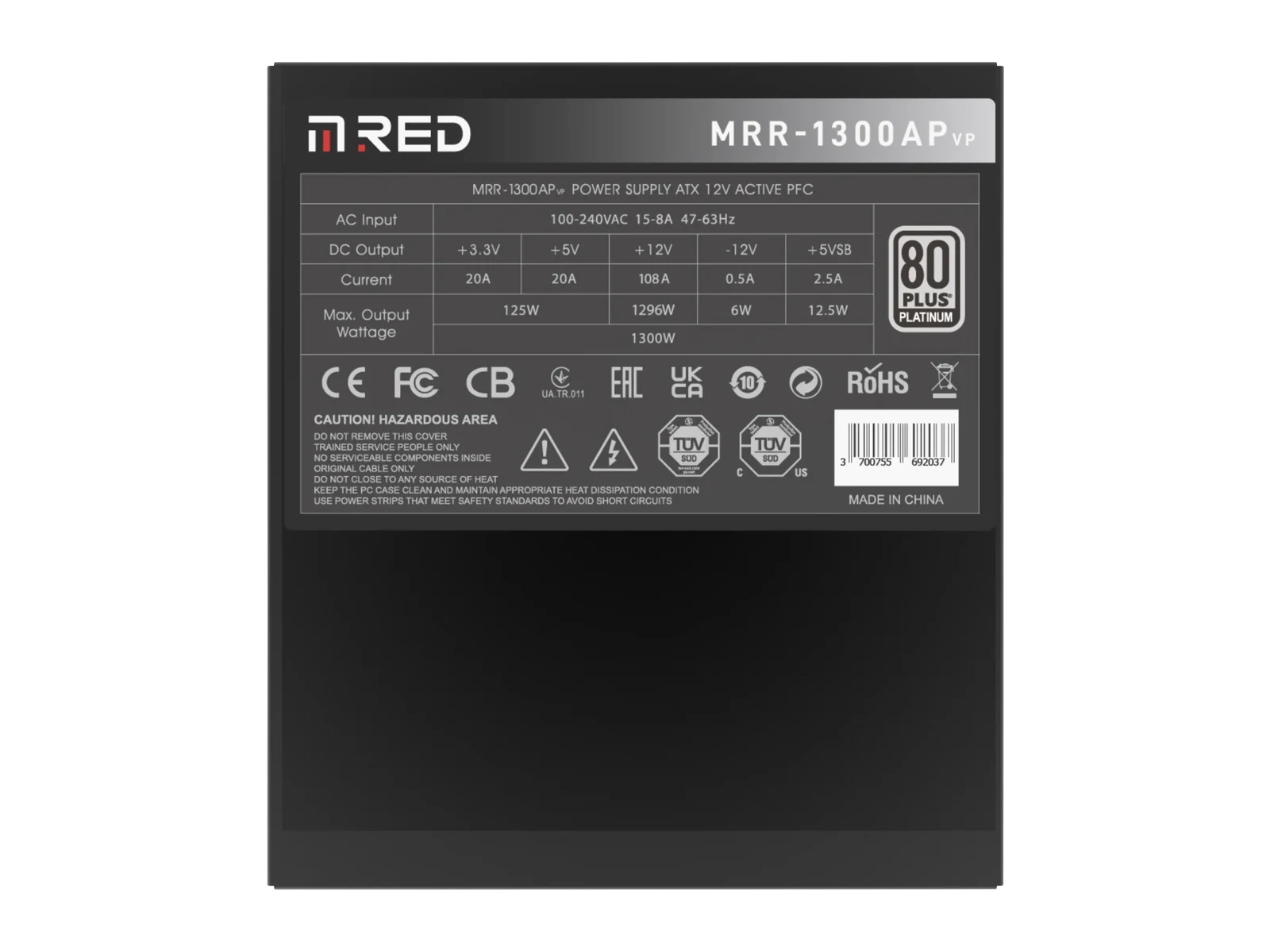

On the modular panel, the SATA outputs and the motherboard socket. On the label, 108 A and 1296 W on the +12 V, 125 W combined on the 3.3 V and 5 V. On the fan side, the hexagonal grille of the 140 mm.

Single 108 A +12 V rail for graphics card and processor

A single rail, 1296 W available: no per-rail limit to divide between components.

The single +12 V rail delivers 108 A, i.e. 1296 W out of 1300 W. The 3.3 V and 5 V share 125 W combined, and the +5 Vsb standby line supplies 2.5 A.

The graphics card connects via the 12V-2x6 (PCIe 5.1, 12VHPWR compatible) of the ATX 3.1 standard, backed by four PCIe 6+2-pin connectors; the processor, by two 4+4-pin connectors.

Eleven flat cables, all detachable, including ten SATA connectors for storage and a 20+4-pin motherboard connector.

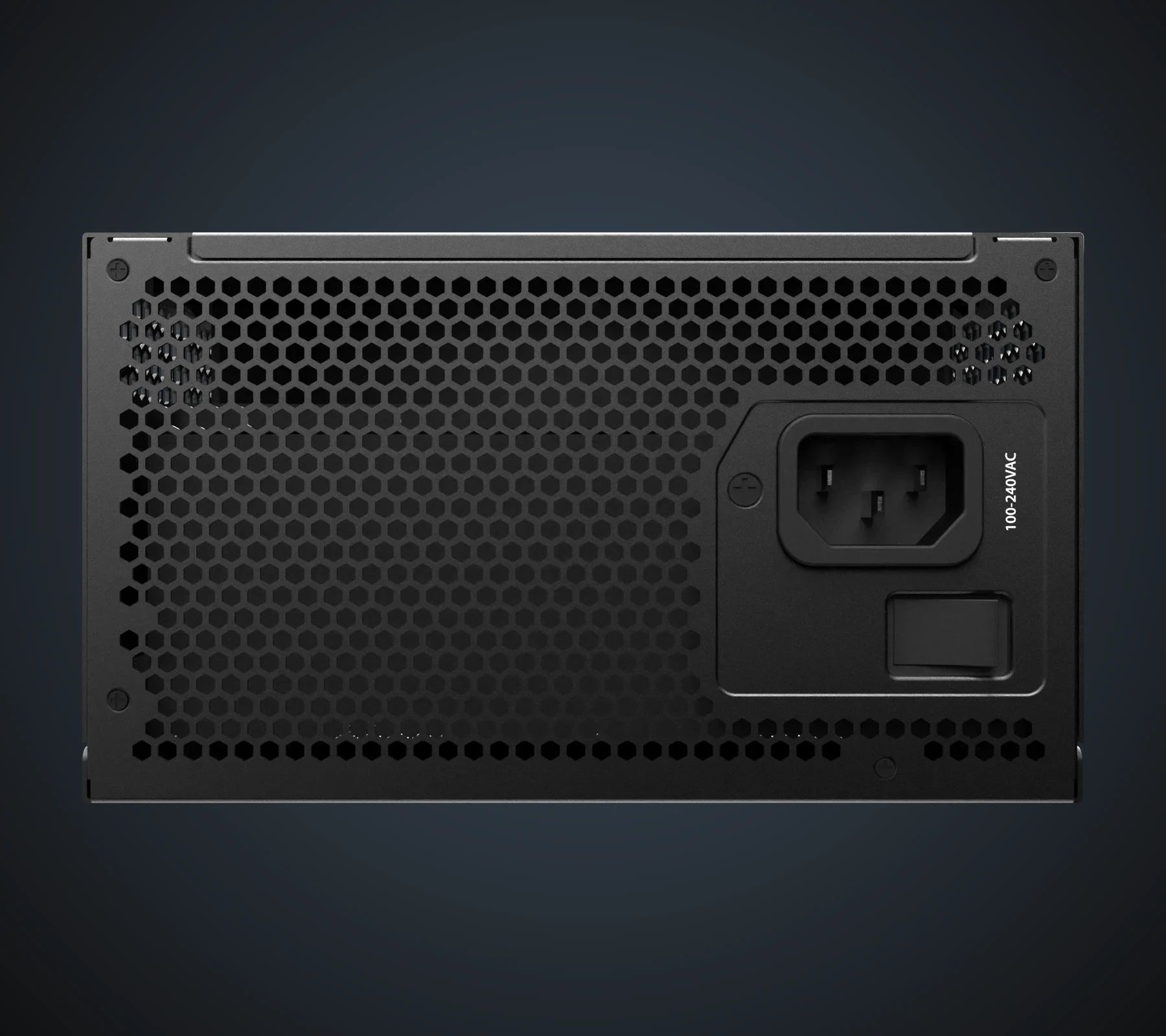

MRR-1300AP (VP2) Black seen at a three-quarter angle, mains input side and fan grille

1300 W in a 150 × 86 × 168 mm ATX power supply

Fan, modular panel, side: 1.55 kg and standard ATX dimensions, secured by four screws supplied. Its 168 mm depth is the measurement to check against the space in your case.

Seven protections, a 140 mm fan, ten years of warranty

Overcurrent, overvoltage, undervoltage, short circuit, overload, overheating and mains surge: seven declared protections.

Their abbreviations, in order: OCP, OVP, UVP, SCP, OPP, OTP and SIP. None is implied, each one appears in the specifications.

The 140 mm fan, brushless and with a hydraulic bearing, adjusts its speed to temperature up to 2000 rpm. Stated measurements: 24.2 dB(A) at 20 % load, 30.1 dB(A) at 50 %, 40.2 dB(A) at 100 %.

Commercial warranty: 10 years.
