M.RED CBT063-03 Gaming PC three-quarter view

M.RED Gaming PC Core i7-14700KF · RTX 5080

Ref.: CBT063-03EAN: 3700755626674

This M.RED gaming PC pairs an Intel Core i7-14700KF processor (20 cores, 28 threads) with an NVIDIA GeForce RTX 5080 graphics card with 16 GB GDDR7. The Intel B760 chipset motherboard with Wi-Fi and Bluetooth takes 32 GB of DDR5 memory at 5200 MHz (2 × 16 GB) and a 1 TB M.2 NVMe SSD. It ships with Windows 11 Home.

View specs

Where to buy?

CBT063-03 the top of the range, with an RTX 5080

A 16 GB GeForce RTX 5080, a 20-core Intel Core i7-14700KF and a 1,050 W power supply, brought together in the Raven Black. Windows 11 Home installed.

Interior of the M.RED CBT063-03 Gaming PC seen from the side, graphics card and water cooling

RTX 5080 and Core i7-14700KF: 16 GB of GDDR7, 20 cores

The highest-end graphics card in our PCs.

NVIDIA GeForce RTX 5080 : 16 GB of GDDR7 memory on a 256-bit interface.

Intel Core i7-14700KF : 20 cores and 28 threads, up to 5.6 GHz, 33 MB of L3 cache, on an LGA1700 socket.

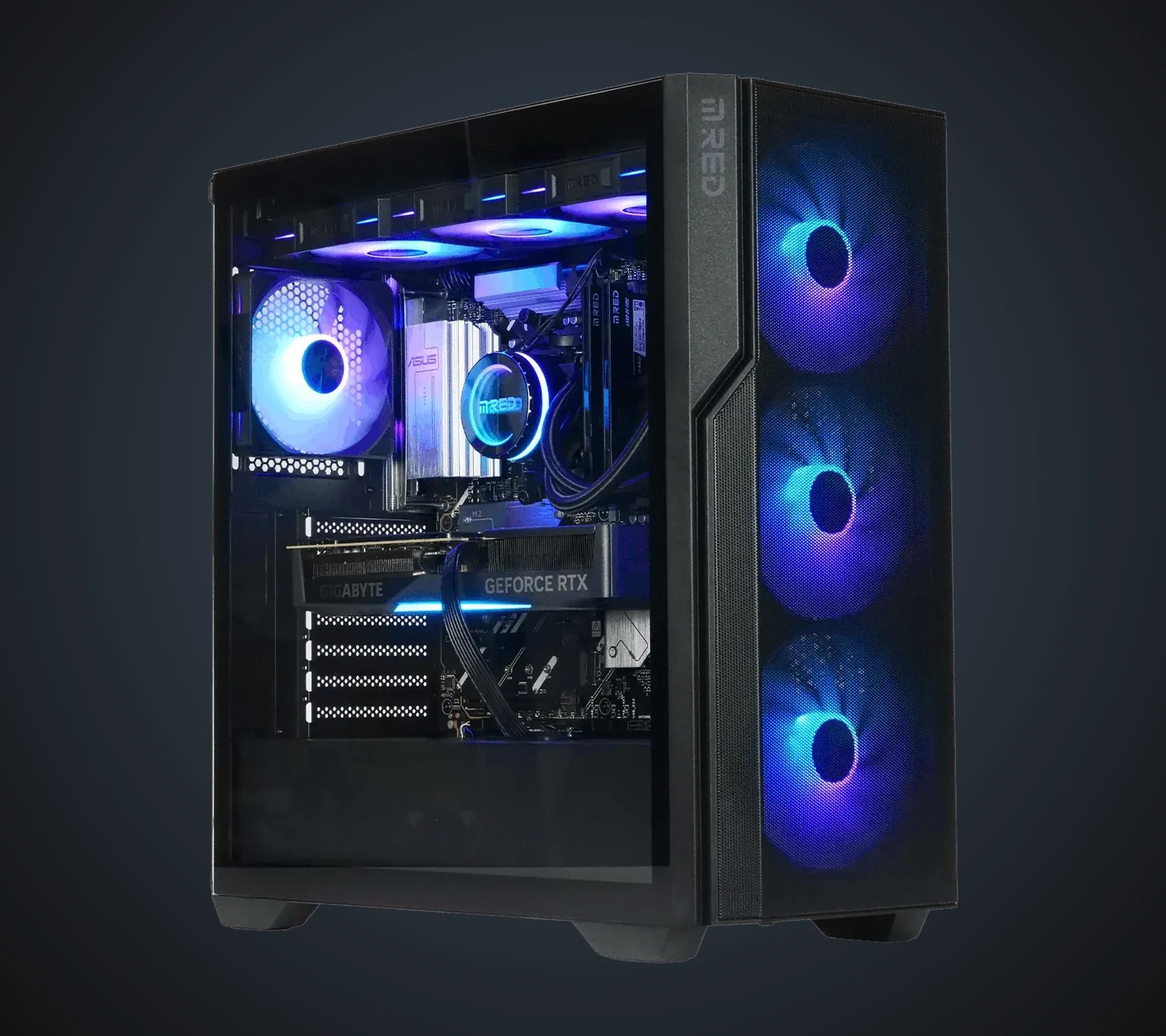

CBT063-03 three-quarter view, front panel lit in blue

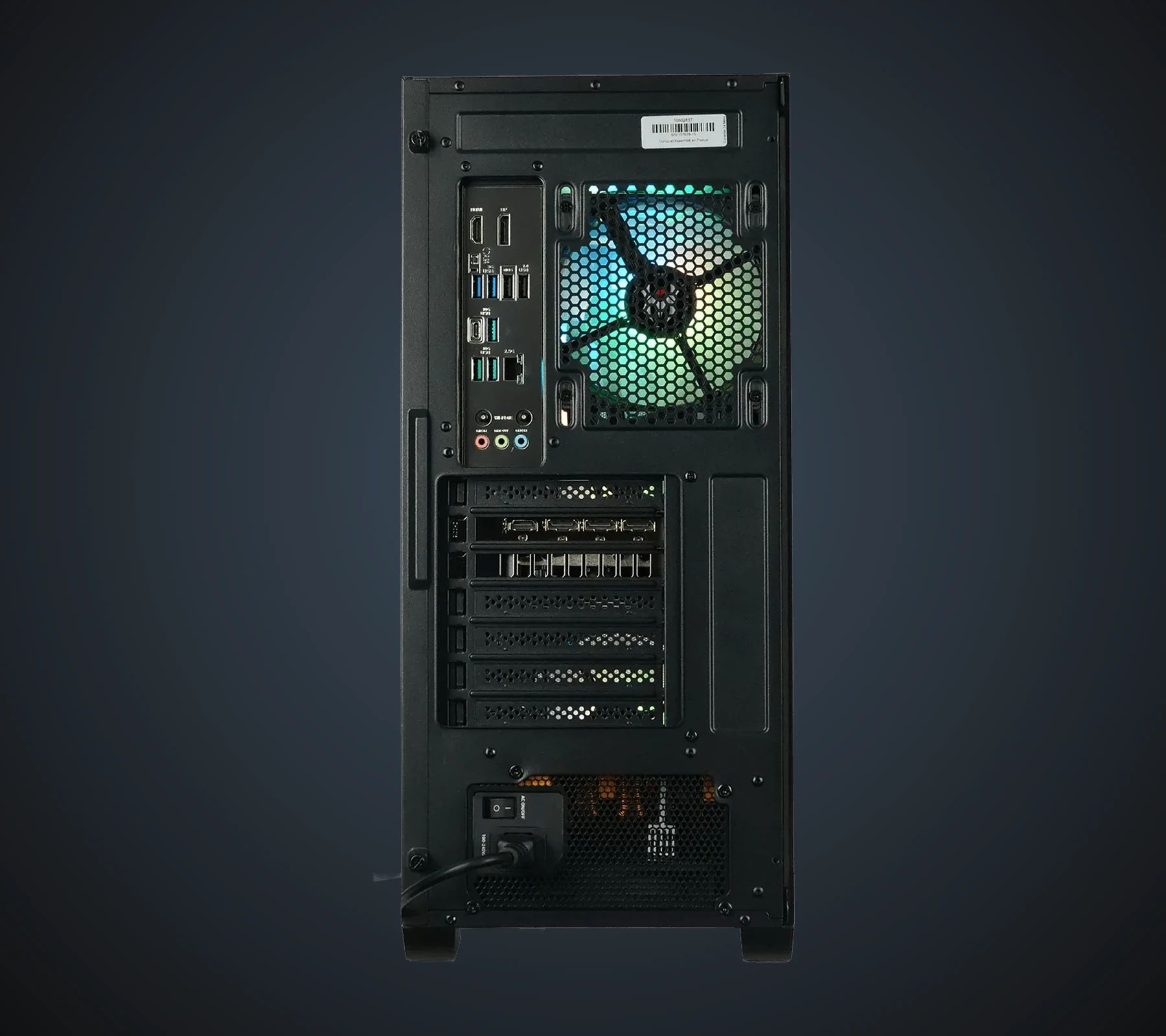

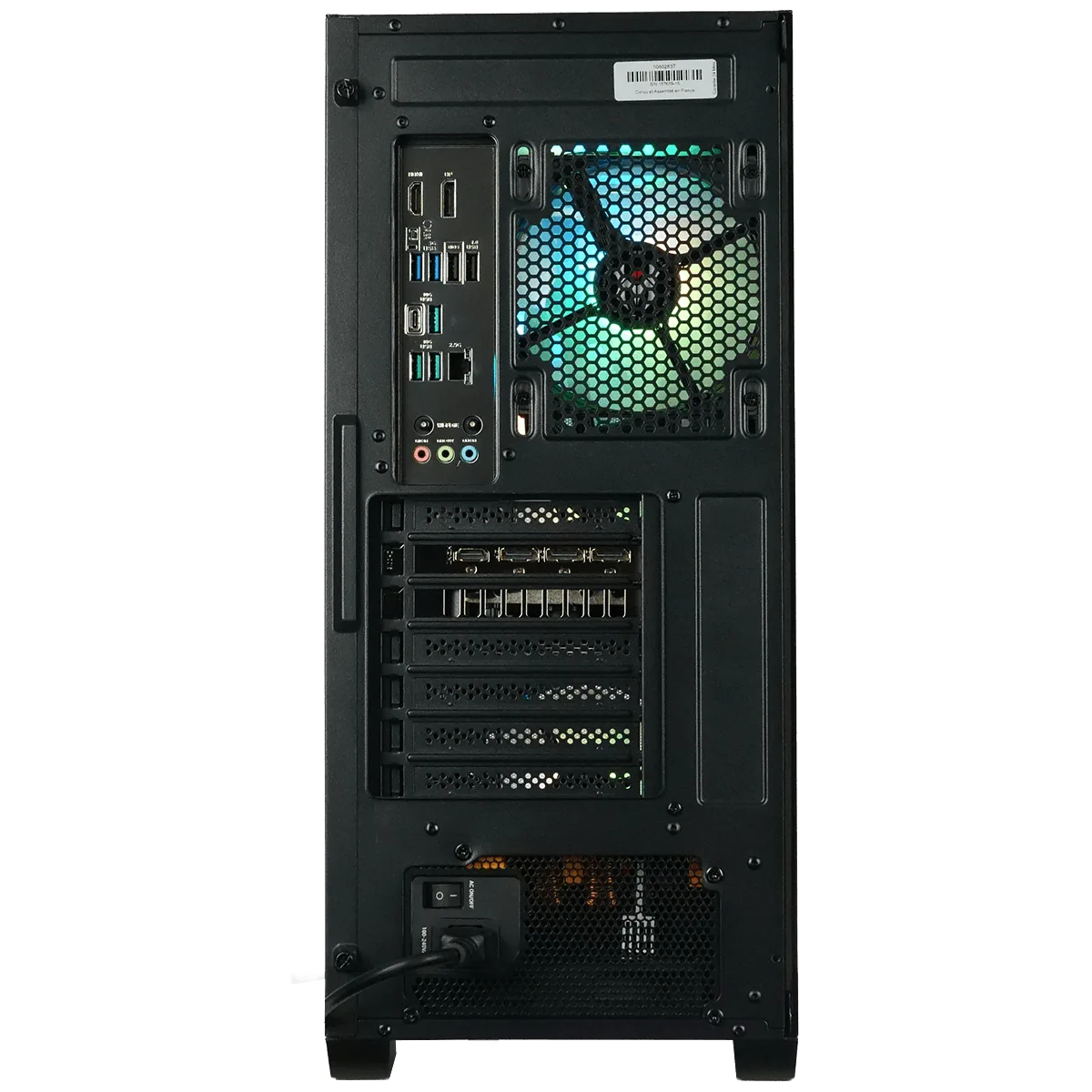

Lit logo, USB ports, rear panel

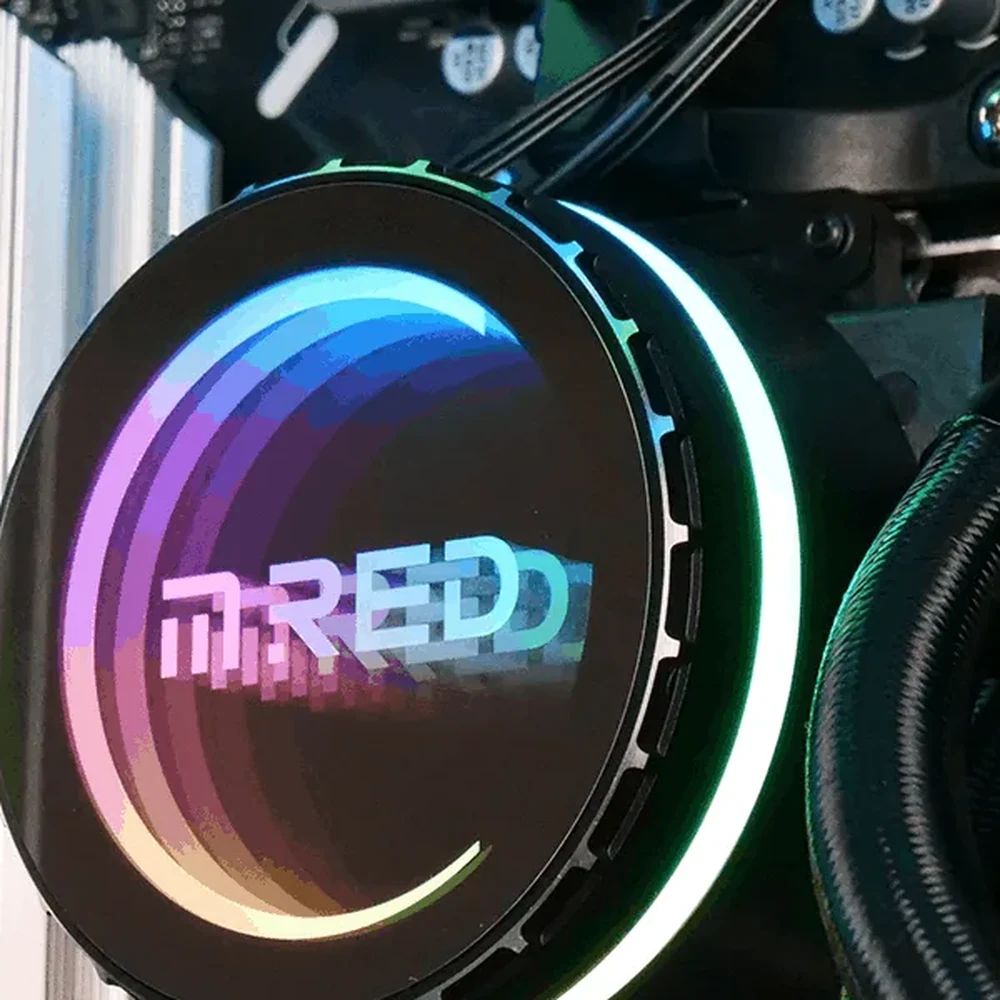

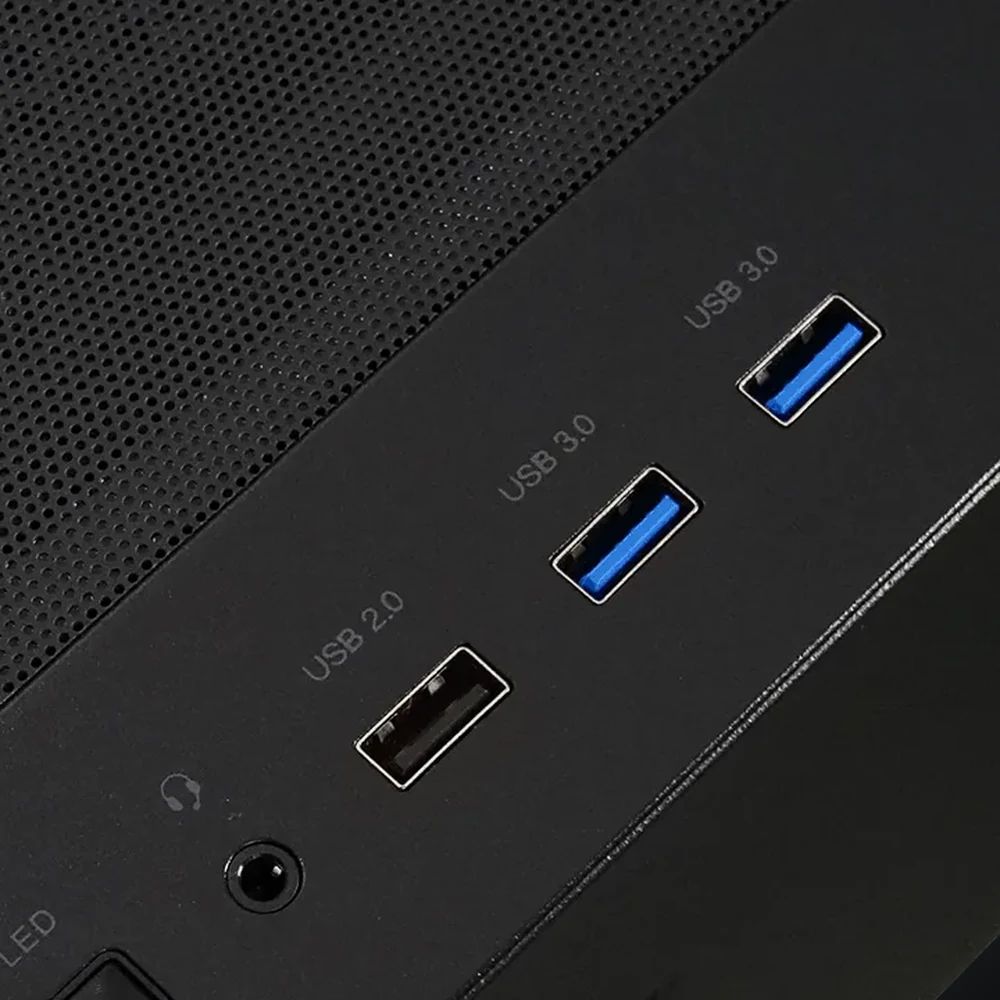

The M.RED logo stands out on the ONYX 360 pump. On top of the case, two USB 3.0 ports and the headphone jack. At the back, the motherboard input-output panel.

A 1,050 W power supply, a 360 mm liquid cooler

MRR-1050AG (VP2) : 1,050 W, fully modular, 80 PLUS Gold certified and ATX 3.1 compliant.

ONYX 360 : 360 mm radiator and three 120 mm ARGB fans on the processor.

Raven Black : mid-tower with glass panel, three 140 mm ARGB fans at the front.

Mesh front panel of the Raven Black, ARGB fans lit

Raven Black: mesh at the front, glass on the side

Front, profile, rear: the mesh lets air in through three 140 mm fans, the glass lets you see the build.

32 GB of DDR5, 1 TB of NVMe, Windows 11 Home

Ready to use, with nothing to install.

32 GB of DDR5 at 5200 MHz, in two 16 GB modules.

1 TB M.2 NVMe SSD.

Motherboard with Intel B760 chipset : built-in Wi-Fi and Bluetooth.

Windows 11 Home comes installed.

Gallery

Configuration

Datasheet (PDF)

Processor
Intel Core i7-14700KF
Cores / threads
20 / 28
Clock speed
3.4 GHz / 5.6 GHz (boost)
L2 / L3 cache
28 MB / 33 MB
TDP
125 W
Socket
LGA1700
Graphics card
NVIDIA GeForce RTX 5080
Video memory
16 GB GDDR7
Memory interface
256 bit
Boost clock
2.62 GHz
Memory
32 GB (2 × 16 GB) DDR5 5200 MHz
Storage
SSD 1 TB M.2 NVMe
Motherboard
Chipset Intel B760
Socket
LGA1700
Wireless
Wi-Fi, Bluetooth
Cooling
AIO 360mm ONYX
360 mm AIO liquid cooler, 3 x 120 mm ARGB fans, Intel and AMD sockets
M.RED componentView product
Power supply
MRR-1050AG (VP2) Black
1050 W PC power supply, fully modular, 80 PLUS Gold certified, ATX 3.1
M.RED componentView product
Case
Raven Black
Tempered glass mid-tower case, E-ATX / ATX / Micro ATX / Mini-ITX, 3 x 140 mm ARGB fans
Case dimensions
480 × 215 × 460 mm
M.RED componentView product
Operating system
Windows 11 Home
