Zephyr Dark Pro ARGB
With six heat pipes and a copper radiator with aluminium fins, this CPU air cooler is rated for a 240 W TDP. It fits Intel LGA1700 / 1200 / 115x / 20xx and AMD AM5 / AM4 sockets. Its 120 mm ARGB hydraulic bearing fan spins from 700 to 1900 RPM and reaches 33.1 dB(A) maximum, for an airflow of 89.6 m³/h. Height: 155 mm, fan included.
The Zephyr Dark Pro ARGB lights up behind your glass panel
Six heat pipes, a copper base, 240 W rated TDP — and in front of the fins, a 120 mm ARGB fan that makes CPU cooling a visible part of your setup.

120 mm ARGB fan: a ring of light at the centre
Hub ringed with light, translucent blades: when the fan lights up, the fins it shines through light up with it.
The fan is ARGB, that is, addressable: colours and effects are set from the lighting source you connect it to. No controller is supplied.
For cabling, a 4-pin connector for the fan speed, and male and female ARGB connectors for the lighting.

Illuminated hub, lit fins, copper base
At the centre of the fan, the ring of light around the logo. Between the aluminium fins, the glow that passes through the radiator. Below, the copper base and the six heat pipes that run from it.
CPU cooling: six heat pipes and a rated 240 W TDP

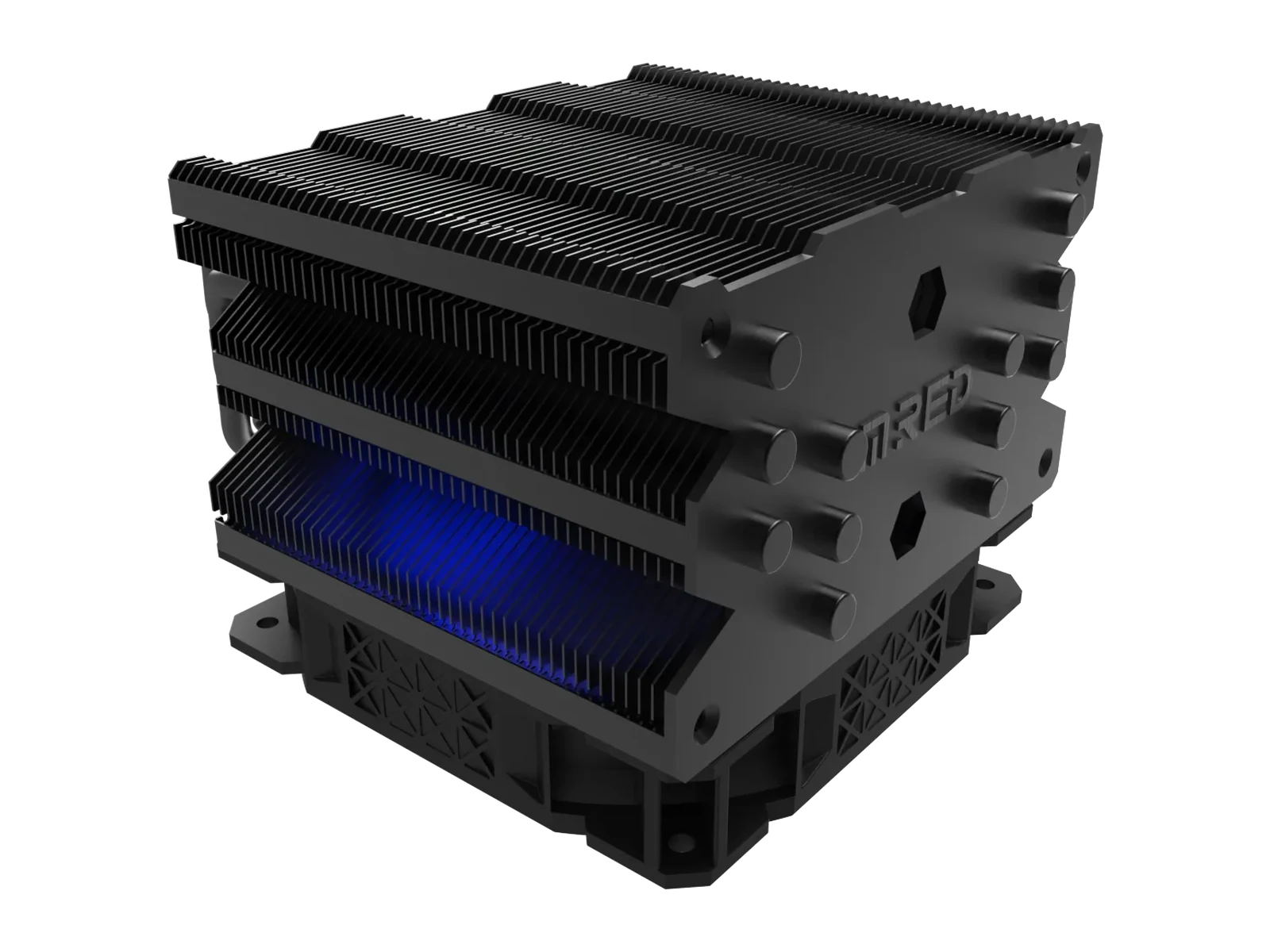

Under the light, the Zephyr Dark Pro radiator is identical: six heat pipes, a copper base, an aluminium fin stack measuring 155 × 75 × 129 mm, for a rated TDP of 240 W.
The fan spins from 700 to 1,900 rpm on a hydraulic bearing and is rated at 89.6 m³/h of airflow for 2.2 mmH2O of static pressure. Rated MTBF: 160,000 hours.

155 mm ARGB CPU cooler: the dimension to check on your case
155 mm high including the fan, 130 mm wide, 130 mm deep, 0.88 kg: before putting it on show, compare its height with what your case allows.
ARGB version or dark version: what really changes
The radiator is the same; only the fan differs, and it makes itself slightly more heard at full speed.
Noise level for the whole unit: 22.6 dB(A) at 50%, the same as the Zephyr Dark Pro without lighting, then 28.6 dB(A) at 75% and 33.1 dB(A) at 100%, against 26.6 and 28.8 dB(A) for the dark version.
Supported sockets: Intel LGA1700, 1200, 115x and 20xx; AMD AM5 and AM4, and the earlier generations of the AM3, AM2 and FM families. Three-year commercial warranty.

Gallery
Tech specs
Datasheet (PDF)References1
- Serie Model
- Zephyr Dark Pro
Dimensions & Weight10
- Height
- 155 mm
- Width
- 130 mm
- Length
- 130 mm
- Net Weight
- 0.88 Kg
- Volume
- 2.59 L
- Box height
- 160 mm
- Box width
- 172 mm
- Box length
- 220 mm
- Gross weight
- 1.2 Kg
- Gross volume
- 6.05 L
Design4
- Usage
- GAMING/CPU cooling
- Color
- Black
- ARGB
- No
- Controller
- No
General Data2
- TDP
- 240 W
- Overall noise level (dB(A) 50/75/100%
- 22,57 / 28,63 / 33,12
CPU Socket2
- Intel
- LGA1700/1200/115X/20XX
- AMD
- FM1/FM2/FM2+AM2/AM2+AM3/AM3+AM4/AM5
Radiator6
- Height
- 155 mm
- Width
- 75 mm
- Length
- 129 mm
- Material
- Copper
- Fin material
- Aluminum
- Heatpipe number
- 6
Fan(s)17
- Height
- 120 mm
- Width
- 120 mm
- Length
- 25 mm
- Quantity
- 1
- ARGB
- Yes
- RPM
- 700-1900
- Airflow m3/h
- 89.63
- Noise level MAX
- 33.12 dB(A)
- Pressure
- 2.2 mmH2O
- Bearing technology
- hydraulic Bearing
- MTBF
- 160000 h
- Connector
- 4-pins+ARGB male and female
- Rated voltage
- 12 VDC
- Rated current
- 0.16 A
- Safety current
- 0.37 A
- Input power
- 6 W
- Warranty & docs
- Warranty & docs
Warranty & Docs1
- Commercial Warranty
- 3 années
