Zephyr Dark Pro

Ref.: CPC-Z1EAN: 3700755620160

This CPU air cooler combines six heat pipes with a copper radiator with aluminium fins, for a rated TDP of 240 W. Supported sockets: Intel LGA1700 / 1200 / 115x / 20xx and AMD AM5 / AM4. Airflow of 89.6 m³/h and 30 dB(A) maximum: its 120 mm hydraulic bearing fan spins from 700 to 1900 RPM. It stands 155 mm tall, fan included. It comes with a 3-year warranty.

View specs

Where to buy?

The Zephyr Dark Pro lines up six heat pipes, 240 W rated TDP

A CPU air cooler 155 mm tall, fan included: a copper base, six heat pipes, aluminium fins and a 120 mm fan with a hydraulic bearing. No lighting.

Black Zephyr Dark Pro CPU cooler seen at a three-quarter angle, 120 mm fan at the front

Cooler heatsink: six heat pipes, aluminium fins

The copper base takes the heat from the processor, six heat pipes carry it to the fin stack.

The radiator measures 155 × 75 × 129 mm (height, thickness, depth). Its six heat pipes run from the copper base and through a stack of aluminium fins.

The 120 mm fan mounts on one side of the fin stack. Assembled, the cooler takes up 155 × 130 × 130 mm and weighs 0.88 kg.

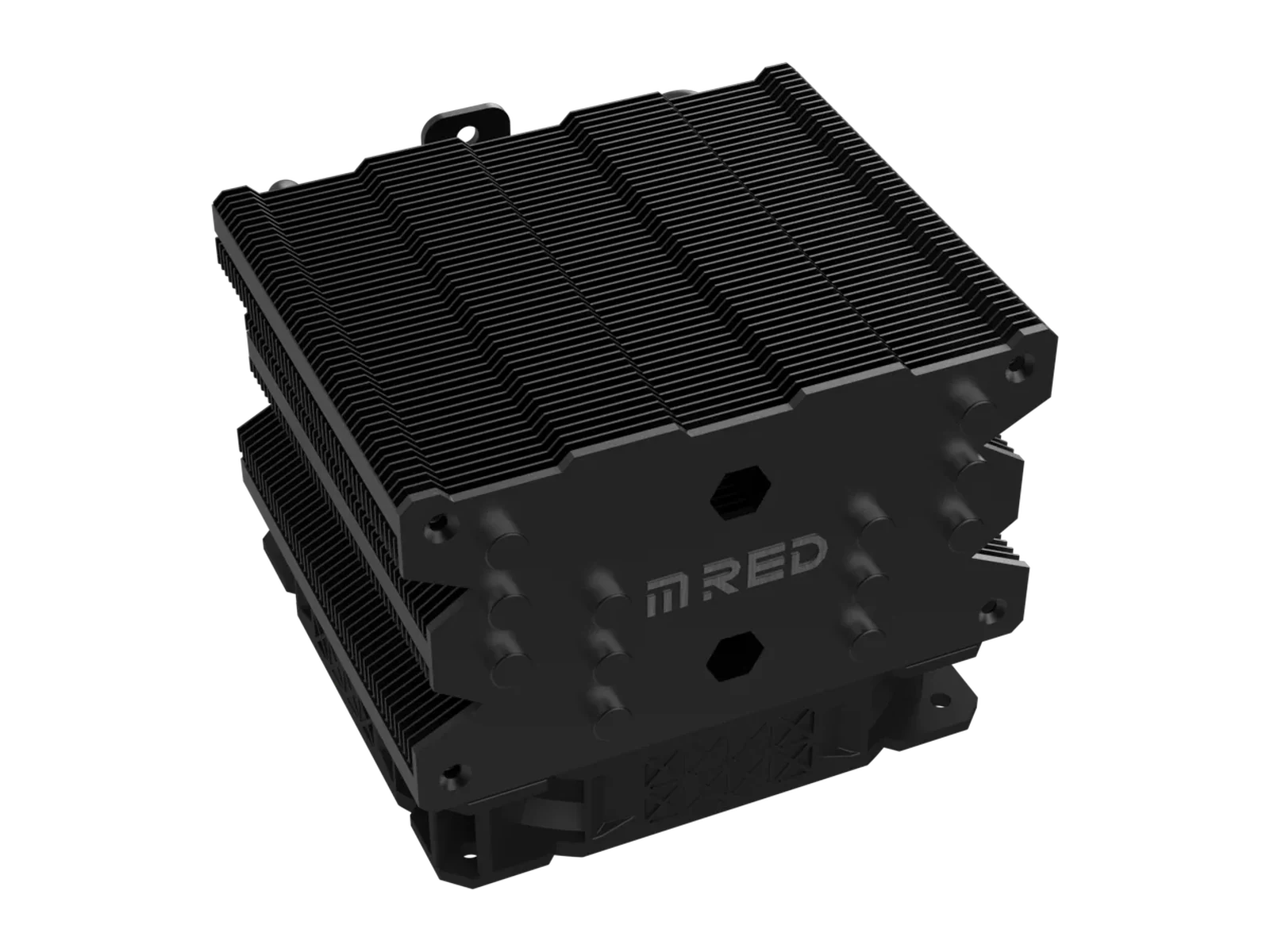

Aluminium fin stack of the Zephyr Dark Pro seen at a three-quarter angle from above

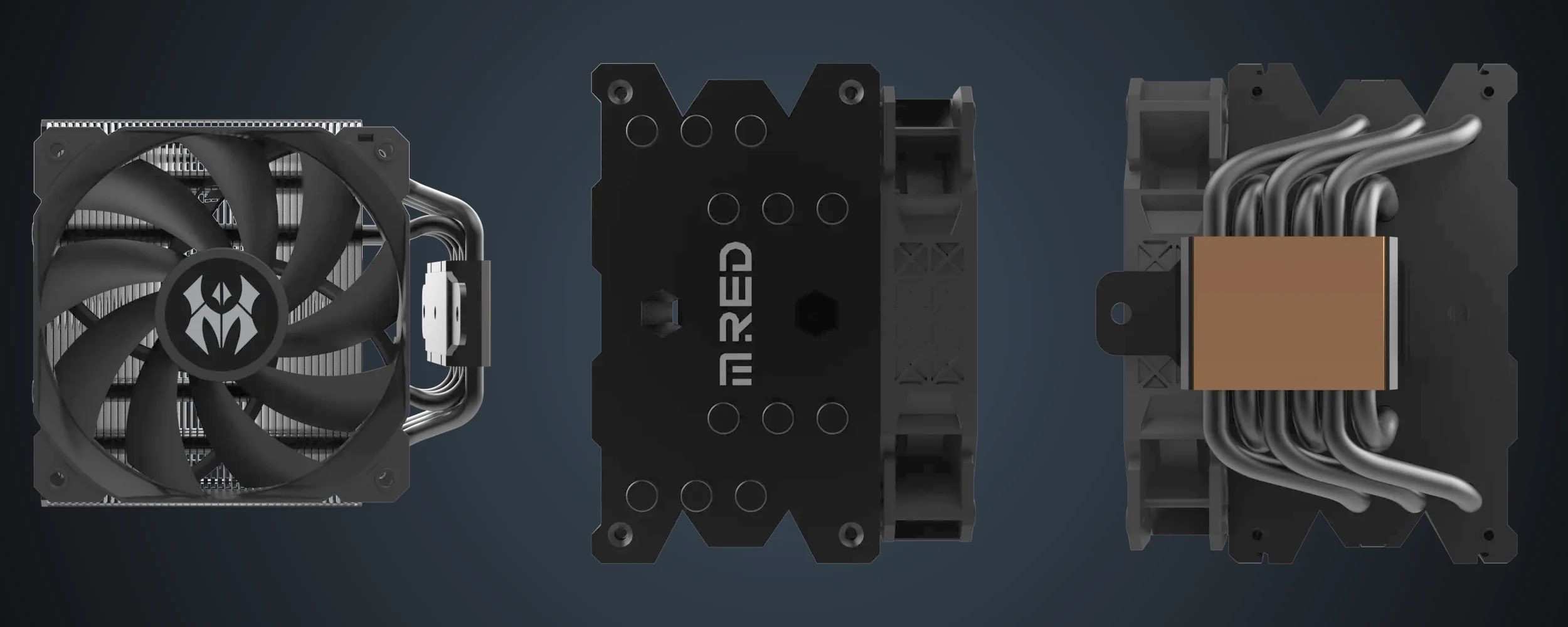

Copper base, heat pipes and CPU cooler fan, up close

Underneath, the copper base where the six heat pipes meet. From the back, their bends, rising into the fins. At the front, the 120 mm fan, black, with no LED.

120 mm fan with hydraulic bearing: the figures

A 120 × 120 × 25 mm fan spins from 700 to 1,900 rpm on a hydraulic bearing, at 12 V, connected via a 4-pin connector. Power draw: 1.92 W.

Stated airflow: 89.6 m³/h. Static pressure: 2.2 mmH2O. Stated MTBF: 160,000 hours.

Noise level of the whole unit: 22.6 dB(A) at 50%, 26.6 dB(A) at 75%, 28.8 dB(A) at 100%; the fan on its own is rated at 30 dB(A) maximum. Without lighting, it stays below the ARGB version at 75 and 100%.

Front view of the Zephyr Dark Pro, 120 mm fan and heat pipes on the side

Cooler height: 155 mm, fan included

155 mm high, 130 mm wide, 130 mm deep. The dimension that matters is the height: compare it with the cooler height your case allows.

Compatibility: Intel LGA1700 and AMD AM5 sockets

One cooler for both Intel and AMD platforms, from LGA1700 and AM5 to older sockets.

On the Intel side: LGA1700, 1200, 115x and 20xx. On the AMD side: AM5 and AM4, along with the earlier generations of the AM3, AM2 and FM families.

The 240 W TDP is a figure stated by M.RED. Commercial warranty: three years.
