OTTO A2 R7 7730U

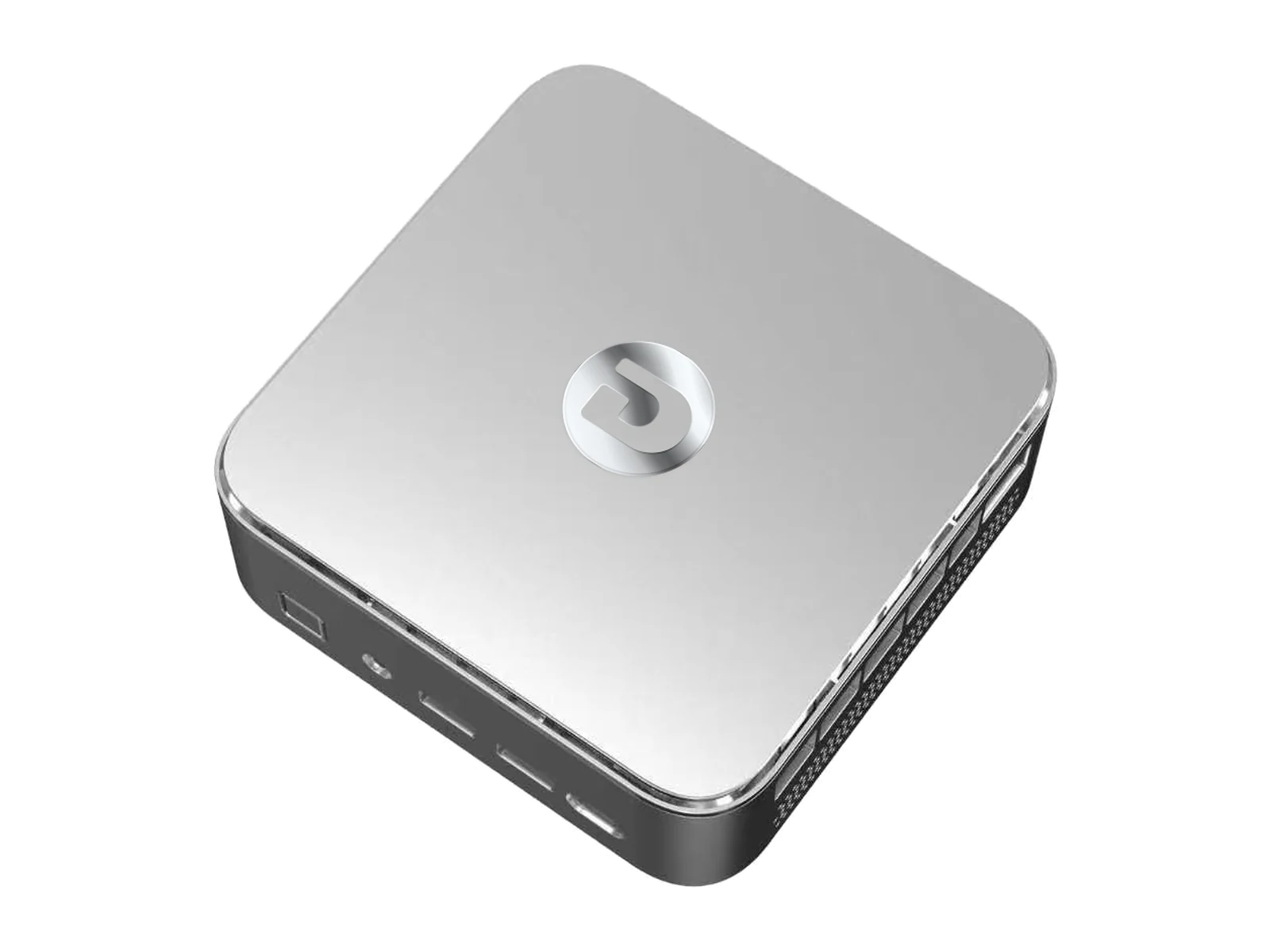

AMD Ryzen 7 7730U processor in a 128 × 128 × 41 mm chassis. It supports up to 64 GB of DDR4 SO-DIMM memory (two modules), with two M.2 2280 NVMe slots, one of them SATA-compatible. Triple-display support: HDMI 2.0, DisplayPort 1.4b and USB-C. Ports and networking: six USB-A 5 Gbit/s ports, one USB-C 10 Gbit/s port (data and video), Gigabit Ethernet and Wi-Fi 6.
The OTTO A2 R7 slips a Ryzen 7 where a tower won't fit
An AMD Ryzen 7 7730U mini PC that moves from spreadsheets to photo editing, from the office to the living room. Same chassis and same connectivity as the OTTO A2 i3: here, it's the processor that changes.
AMD Ryzen 7 7730U processor: the multitasking mini PC
A browser full of tabs, a video call, a spreadsheet and an edit in progress: several windows open, a single small chassis.
AMD Ryzen 7 7730U : that's the only difference with the OTTO A2 i3, which shares its chassis, its connectivity and its memory and storage slots.
During the week, it runs the office; in the evening, it becomes the family PC, the homework station or the media player hooked up to the TV.
USB-C, HDMI, DisplayPort: a close look at the mini PC's ports

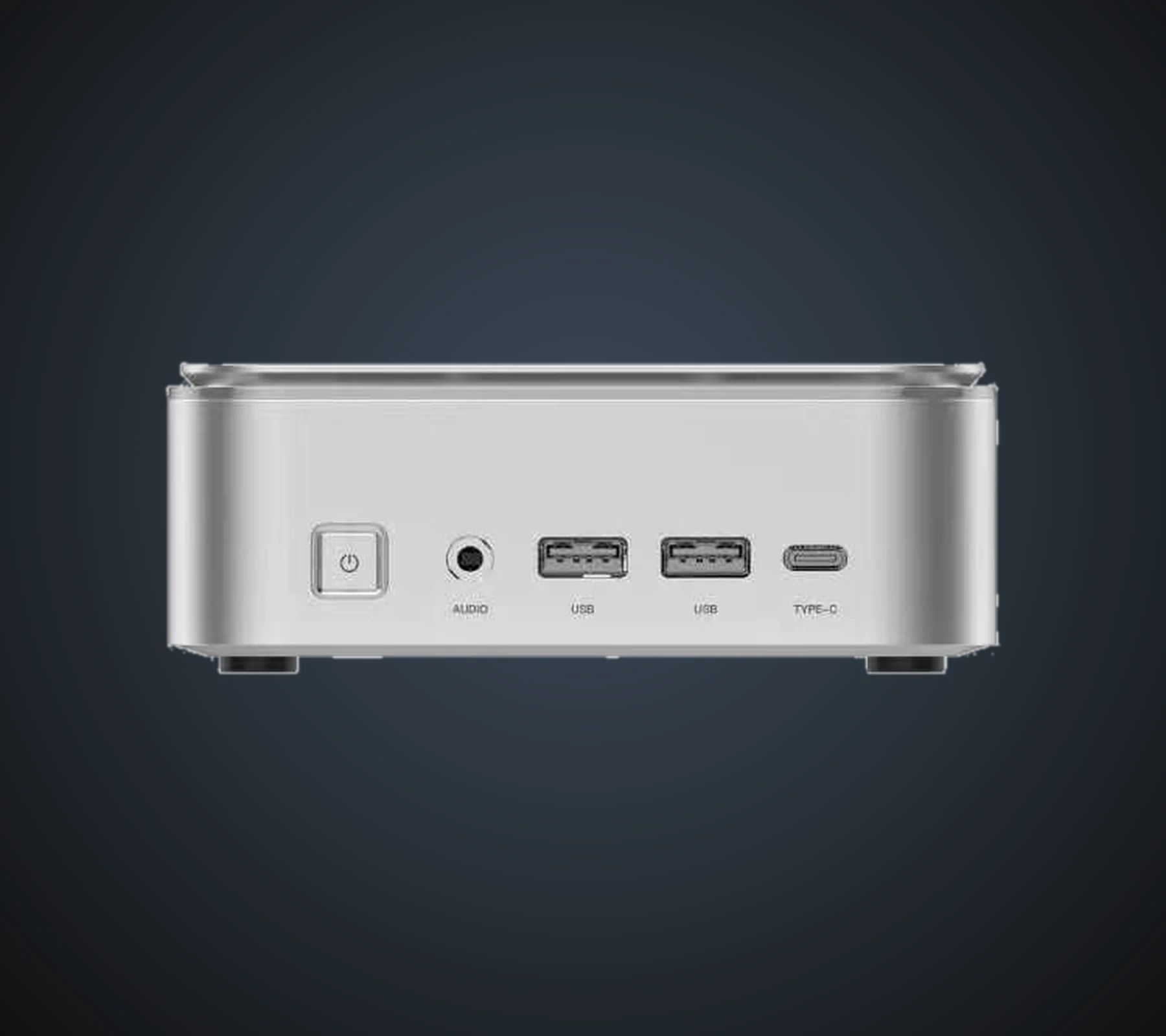

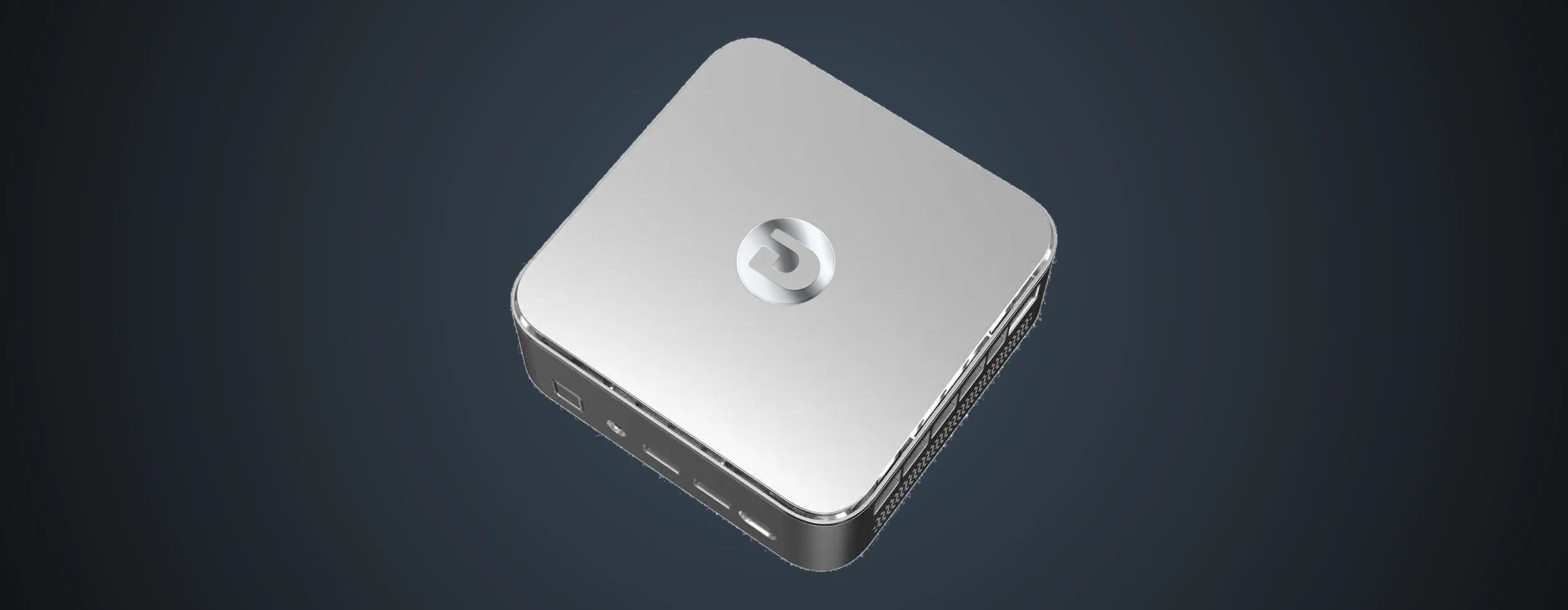

At the front, the 10 Gbit/s USB-C sits next to two USB-A and the headset jack. At the rear, the DisplayPort and HDMI outputs are alongside the power input. On the side, grilles and rows of perforations let the air through.
Multi-display: HDMI, DisplayPort and USB-C at the same time
The spreadsheet on one screen, the video call on the second, documents on the third: the OTTO A2 R7 drives three simultaneous displays.
HDMI 2.0 and DisplayPort 1.4b go up to 4K at 60 Hz; the 10 Gbit/s USB-C port carries both data and video.
In the living room, the 4K HDMI output connects it to the TV for films, series and holiday photos.
A 0.4 kg mini PC to mount on the back of a VESA display

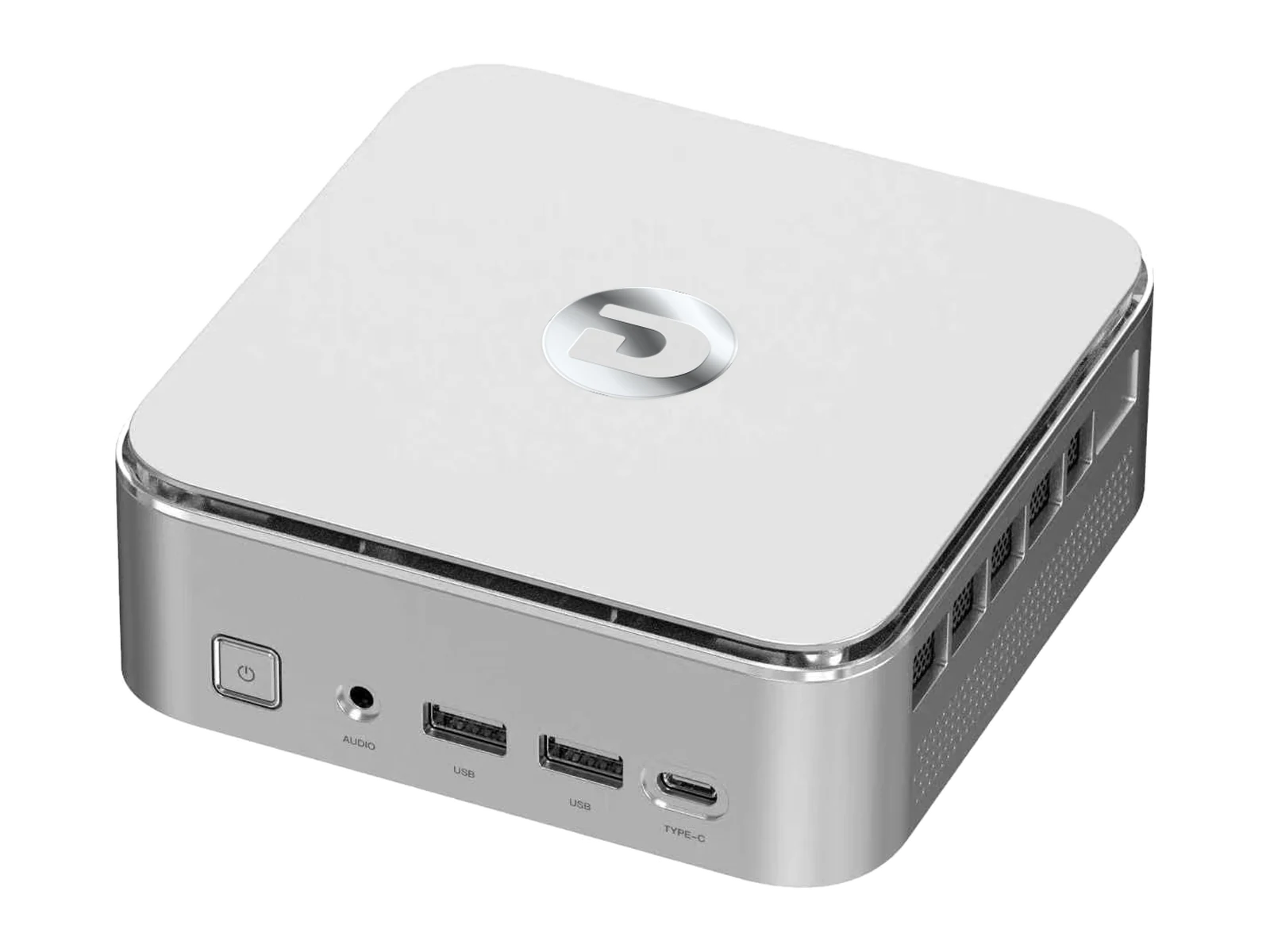

Rear, three-quarter, front: 41 mm thick for 0.67 litres. VESA-compatible, it hides behind a monitor or a TV, and slips into a bag when the desk moves to another room.
Upgradable: up to 64 GB of DDR4 and two M.2 NVMe SSDs
Memory and storage keep up with your projects, one slot at a time.
Two SO-DIMM DDR4 slots : up to 64 GB in total, at up to 3200 MT/s, to size the memory to your multitasking.
Two M.2 2280 slots : the first NVMe, the second NVMe or SATA. One SSD for the system, another for photos and projects.
Wi-Fi 6, Bluetooth 5.2 for a controller or headset, Gigabit Ethernet, six USB-A ports at 5 Gbit/s and a two-year commercial warranty round out the package.
Gallery
Tech specs
Datasheet (PDF)References1
- Serie Model
- OTTO A2
Dimensions & Weight10
- Height
- 41 mm
- Width
- 128 mm
- Length
- 128 mm
- Net Weight
- 0.4 Kg
- Volume
- 0.67 L
- Box height
- 112 mm
- Box width
- 162 mm
- Box length
- 162 mm
- Gross weight
- 1.34 Kg
- Gross volume
- 2.94 L
Hardware Configuration10
- CPU
- AMD Ryzen 7 7730U
- Power Consumption
- 28W
- Memory
- SO-DIMM DDR4 x 2(Up to 3200 MT/s,Up to 64 GB）
- Storage
- SSD(Up to 2TB),M.2 2280 Nvme × 1 M.2 2280 sata&Nvme × 1
- RTC
- Real-time clock, timed power-on
- Auto power On
- Support the automatic power on function after power-on
- Diskless Network
- Support UEFI diskless boot
- TPM
- TPM 2.0 is supported
- Display
- The system supports HDMI*1+DP*1+type_c*1 three-screen display
- Vesa
- Yes
Interne connection2
- WiFi
- wifi6,WIFi,802.11a/b/g/n/ac/ax,1T1R,CDW-C97902E-01
- Ethernet
- 10M/100M/1000M self-adaptive
Connectivity1
- Bluetooth
- 5.2
I/O8
- USB
- USB3.0 Type-A*6 5Gbps
- HDMI
- HDMI 2.0（Max 4K 60HZ)*1
- DP
- DP 1.4b（Max 4K 60HZ) *1
- RJ45
- RJ45 x1
- USB Type C
- Type-C*1 10Gbps （Data + Video)
- Power
- x1
- DC In
- 5.5/2.1mm DC Jack x1
- Audio in/out
- 3.5mm Phone Jack x1 （Two-in-one interface）
Warranty & Docs1
- Commercial Warranty
- 2 années
