Zenith G24
This 23.8-inch all-in-one PC is a barebone: built-in Intel processor, memory and storage to be installed, no operating system. It supports up to 64 GB of DDR4 SO-DIMM memory and one M.2 2280 SATA or NVMe SSD. The IPS panel offers Full HD resolution (1920 x 1080) at 60 Hz, 220 cd/m² brightness and a 14 ms response time.
The Zenith G24 brings screen and PC together on a single stand
A 23.8-inch all-in-one PC with an integrated Intel processor, supplied as a barebone: add the memory, the SSD and the operating system, and the machine is complete, with no tower under the desk.
Barebone all-in-one PC: what to add
The Zenith G24 comes without memory, storage or operating system: three items to choose, and it is ready to boot.
The memory is chosen in DDR4 SO-DIMM, at 2666, 2933 or 3200 MHz, up to 64 GB.
Storage goes into an M.2 2280 slot, which takes a SATA or NVMe SSD.
That leaves the operating system to install. The Intel processor is already in place, on a motherboard with an Intel H610 chipset.
Side connectors, vents and cable pass-through, up close

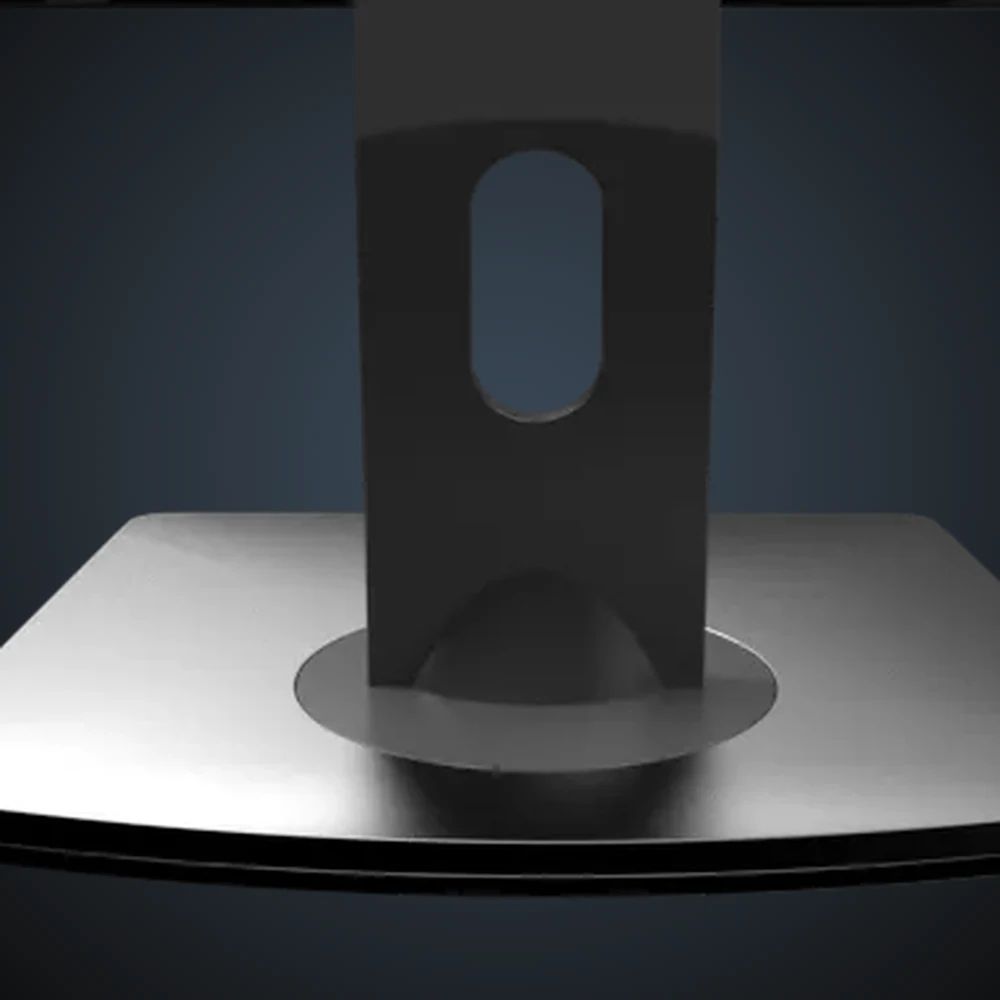

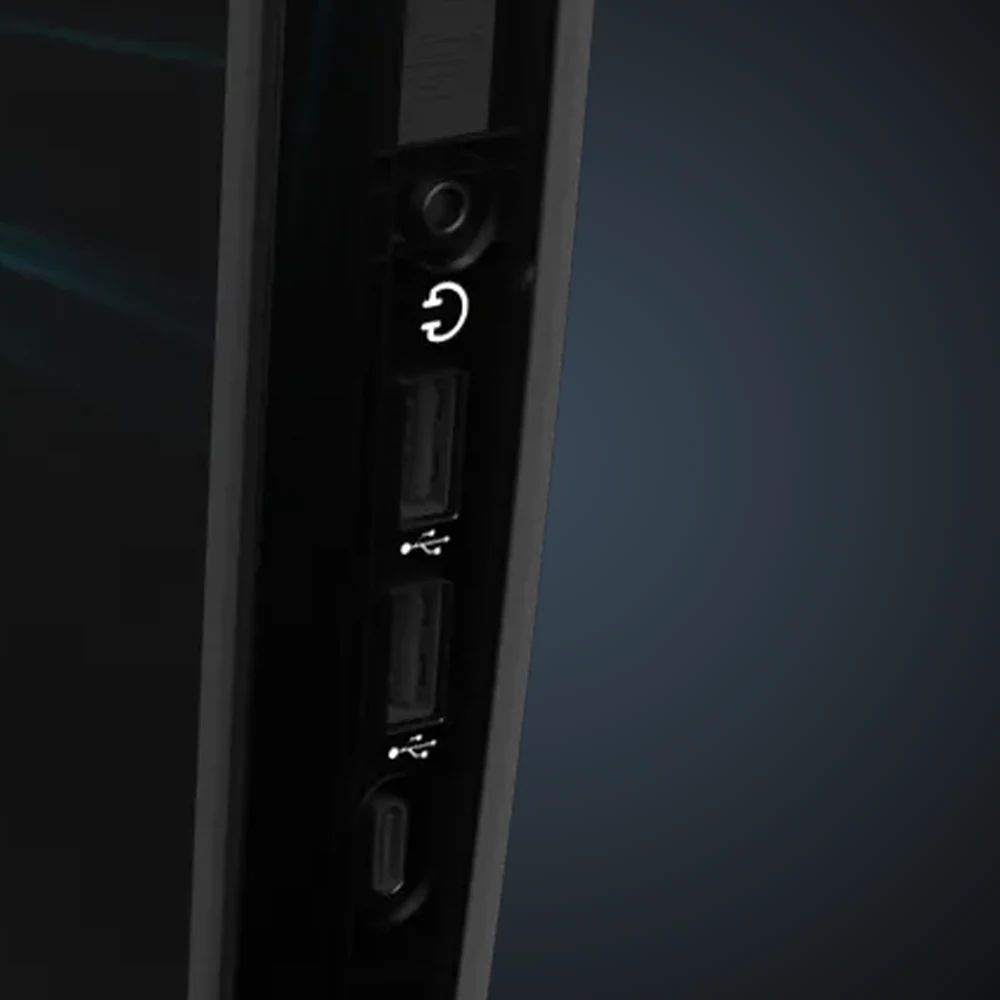

On the edge, an audio jack, two USB-A ports and one USB Type-C port, within easy reach. On top, vents run along the casing. At the back, the stand is pierced to route the cables.
23.8-inch Full HD IPS screen, readable from any angle
The IPS panel displays in Full HD 1920 x 1080 at 60 Hz, with viewing angles of 178° both horizontally and vertically: a document stays readable from the side of the desk.
220 cd/m² brightness, 14 ms response time, LED backlight: a 23.8-inch flat screen for office work, browsing and video.
A 7.28 kg all-in-one PC, from the front, the side and the back
The PC sits behind the screen: no tower to find room for, no video cable between the two. The external power supply accepts 100 to 240 V.
Wi-Fi 5, webcam and speakers built into the machine
Network, video conferencing and sound are already in the chassis: all that is left is to plug in a keyboard and a mouse.
Wi-Fi 5 and Bluetooth 4.2 do without cables; an RJ45 Ethernet port is still there for a wired connection.
A webcam with a 68° field of view and a maximum resolution of 2592 x 1944, plus two 3 W speakers, equip the machine for video calls. Headphone and microphone jacks complete the set.
Seven USB ports in total, including two USB 3.2 Gen 2 and one USB Type-C, and a two-year commercial warranty.
Gallery
Tech specs
Datasheet (PDF)References1
- Serie Model
- ZENITH G
Dimensions & Weight8
- Width
- 185 mm
- Length
- 540.3 mm
- Net Weight
- 7.28 Kg
- Box height
- 190 mm
- Box width
- 525 mm
- Box length
- 630 mm
- Gross weight
- 8.68 Kg
- Gross volume
- 62.84 L
Component5
- Motherboard Chipset
- Intel H610
- CPU Socket compatibility
- Intel LGA1700 - 12/13th Gen TDP:65W
- Memory type compatibility
- DDR4 2666MHz/2933MHz/3200Mhz (So-dimm)
- Max memory compatibility
- Up to 64Go
- SSD NVme compatibility
- 1×M.2 2280 SATA/NVME
Monitor14
- Type
- Flat
- Panel Size (Diagonal)
- IPS
- Display viewing area
- 527.04(H)x296.46(V)
- Panel Backlight Type
- E-LED
- Display Surface
- Haze:25%
- Color saturation
- 72%
- True Resolution
- 1920*1080（FHD)
- Pixel pitch
- 274.5(H) x 274.5(V)
- Brightness
- 220 cd/m2
- Contrat Ratio
- 1000:01:00
- Viewing Angle
- 178° (H)/178°(V)
- Display Colors
- 8 bit
- Response Time
- 14ms
- Refresh rate
- 60Hz
Connectivity13
- Signal input
- 1 HMDI, 1 VGA
- Earphone Jack
- Yes
- Microphone Jack
- Yes
- Speakers
- 3W/4Ω x2
- USB Ports Rear
- 2*USB2.0, 1*USB Type-C (USB2.0), 2*USB 3.2 GEN1, 2*USB 3.2 GEN2
- Bluetooth
- 4.2
- Ethernet RJ45
- 1
- WiFi
- WIFI5
- Power Type
- External power supply
- AC Input Max
- 240V
- Power Saving mode
- 0.5W
- Power off mode
- 0.3W
- Voltage
- AC 100V~240V
Webcam2
- Resolution
- （MAX）2592*1944
- Field of view
- 68°±5°
Warranty & Docs1
- Commercial Warranty
- 2 années
