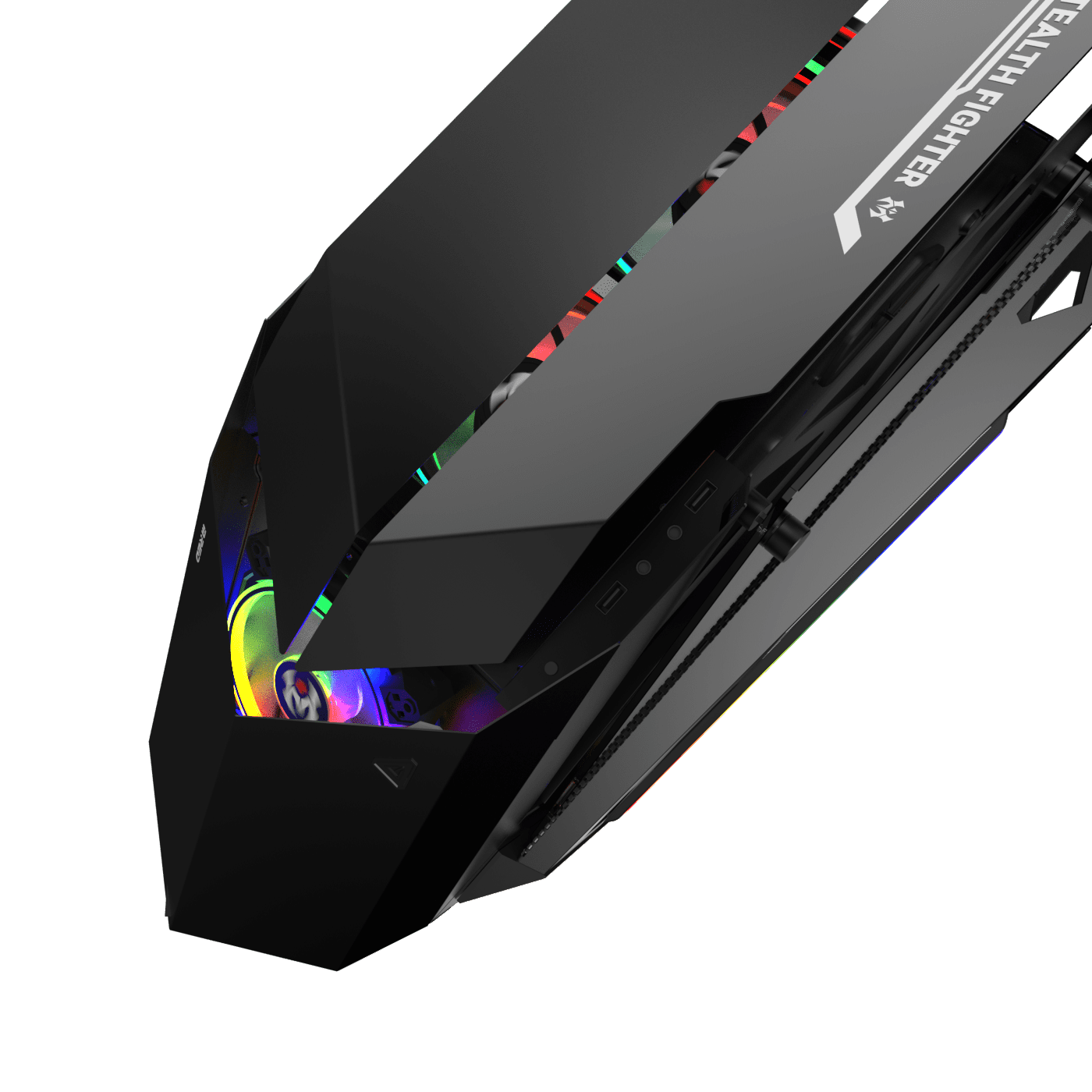

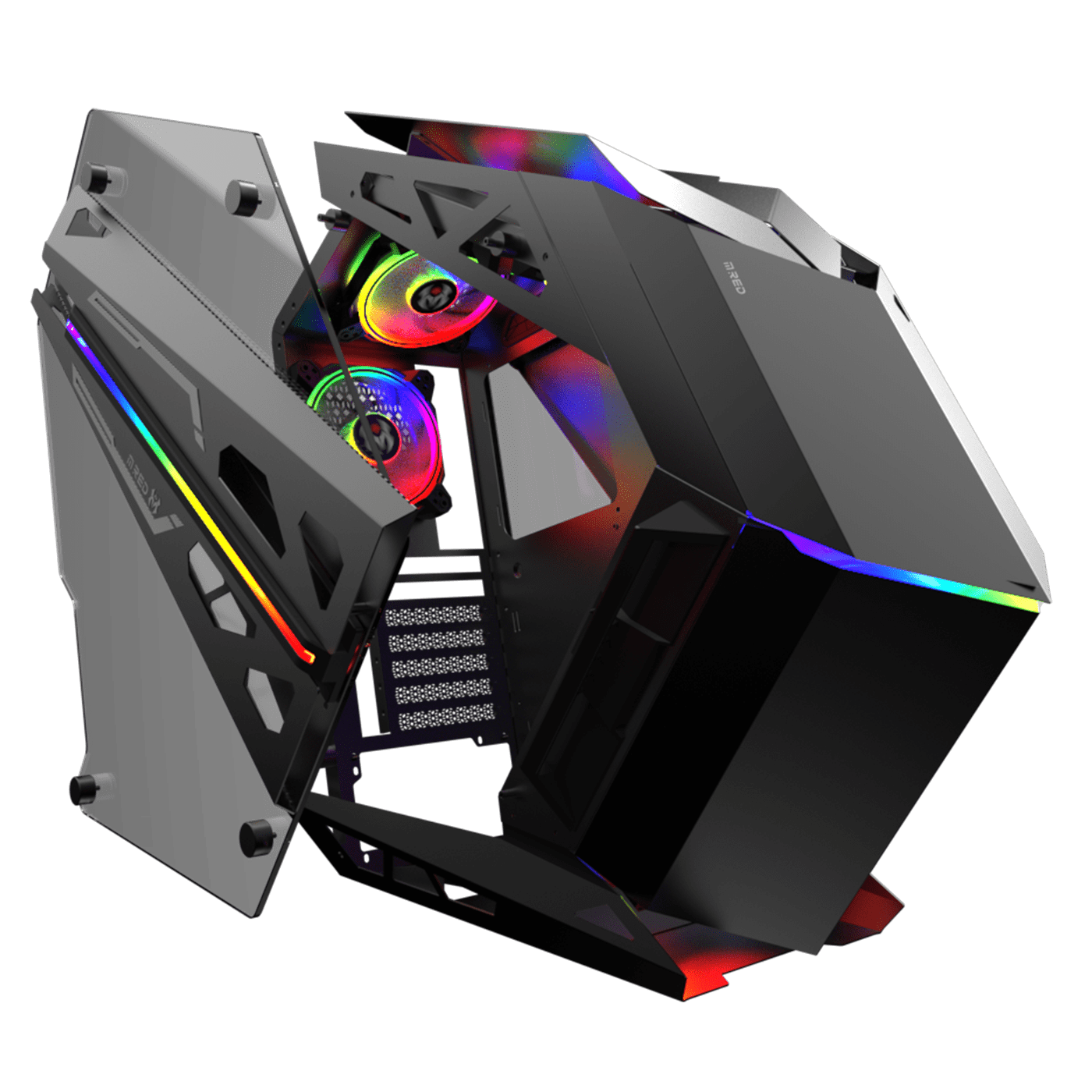

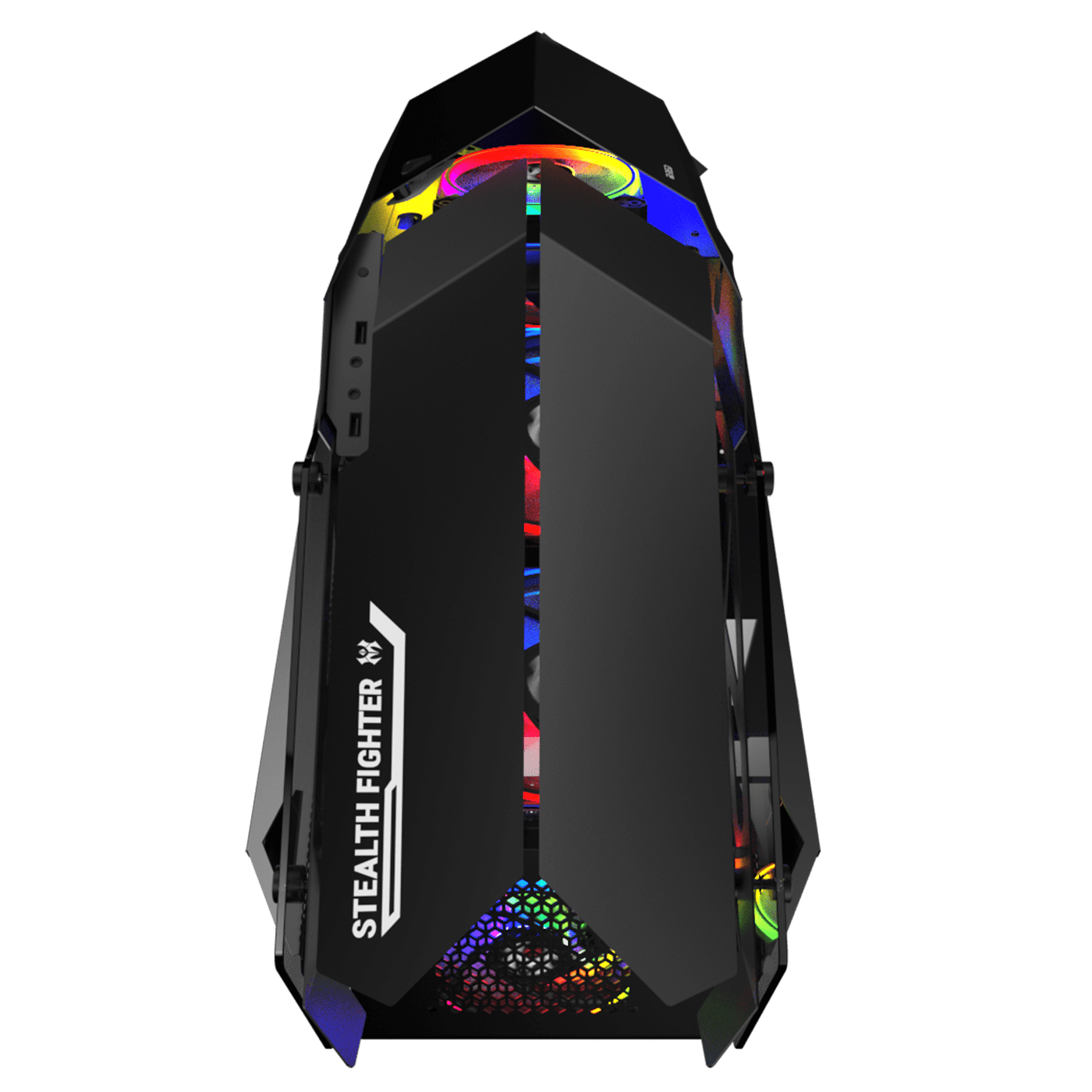

Stealth Fighter
Ref.: MR-009EAN: 3700755645590
This product is no longer in the M.RED catalogue. Its specifications and datasheet are kept here for owners.
Tech specs
Datasheet (PDF, English)References1
- Serie Model
- None
Dimensions & Weight10
- Height
- 560 mm
- Width
- 302 mm
- Length
- 629 mm
- Net Weight
- 11.47 Kg
- Volume
- 106.38 L
- Box height
- 360 mm
- Box width
- 655 mm
- Box length
- 700 mm
- Gross weight
- 14.37 Kg
- Gross volume
- 165.06 L
Design17
- Usage
- NSFW
- Form Factor
- Mid Tower
- Color
- Black
- Raw Materials
- Steel, ABS Plastic, Tempered Glass
- Mred Cover
- Yes
- Window Right Side Panel
- Yes
- Window Left Side Panel
- Yes
- Window Raw Material
- Tempered Glass
- LED Lights
- Yes
- LED Type
- ARGB
- Motherboard LED Compatibility Brands
- Asus, Msi, Gigabyte
- ARGB Compatibility
- Yes
- Side Bar LED Qty
- Yes
- LED Controler
- Yes
- LED Controler Operation Mode
- Stand alone
- Controler IRDA Remote Control
- Yes
- Front panel wireless connectors
- Yes
Conception7
- Dust Filters Qty
- 0
- Top Dust Filter
- No
- Front Dust Filter
- No
- Bottom Dust Filter
- No
- Removable Front Panel
- Yes
- Replaceable Front Panel
- No
- Removable Right Side Panel
- Yes
Compatibility & Clearance8
- Clearance Max. CPU Cooler
- 165 mm
- Motherboard Support
- ATX, Micro ATX, Mini-ITX
- Clearance Max. Horizontal Graphic Card
- 330 mm
- Vertical VGA Extension Slots
- No
- Front Fan and Radiator Clearance
- 25
- Top Fan and Radiator Clearance
- 55
- Supported PSU Type
- ATX
- PSU Max Length
- 180 mm
Cooling9
- Pre-Installed Fans - Front
- 3*120 ARGB
- Pre-Installed Fans - Top
- 2*120 ARGB
- Pre-Installed Fans - Rear
- 2*120 ARGB
- Fan Support - Front
- 3*120
- Fan Support - Top
- 2*120
- Fan Support - Rear
- 2*120
- Watercooling System Support
- Yes
- Radiator Support - Front
- 240
- Radiator Support - Top
- 240
Extension slots6
- Horizontal PCI Slot Qty
- 7
- Vertical PCI Slot Qty
- 0
- Horizontal VGA support
- No
- 2,5" Drive Bays Qty
- 2
- 3,5" Drive Bays Qty
- 0
- HDD removable rack
- 0
Connectivity7
- Connectors Location
- Top
- USB 2.0
- 0
- USB 3.0
- 2
- USB 3.2 Gen 2 Type-C
- 0
- 3.5mm Headset Jack (Audio+Mic)
- 0
- 3.5mm Headset Jack (Audio)
- 1
- 3.5mm Headset Jack (Mic)
- 1
Warranty & Docs1
- Commercial Warranty
- 2 années
