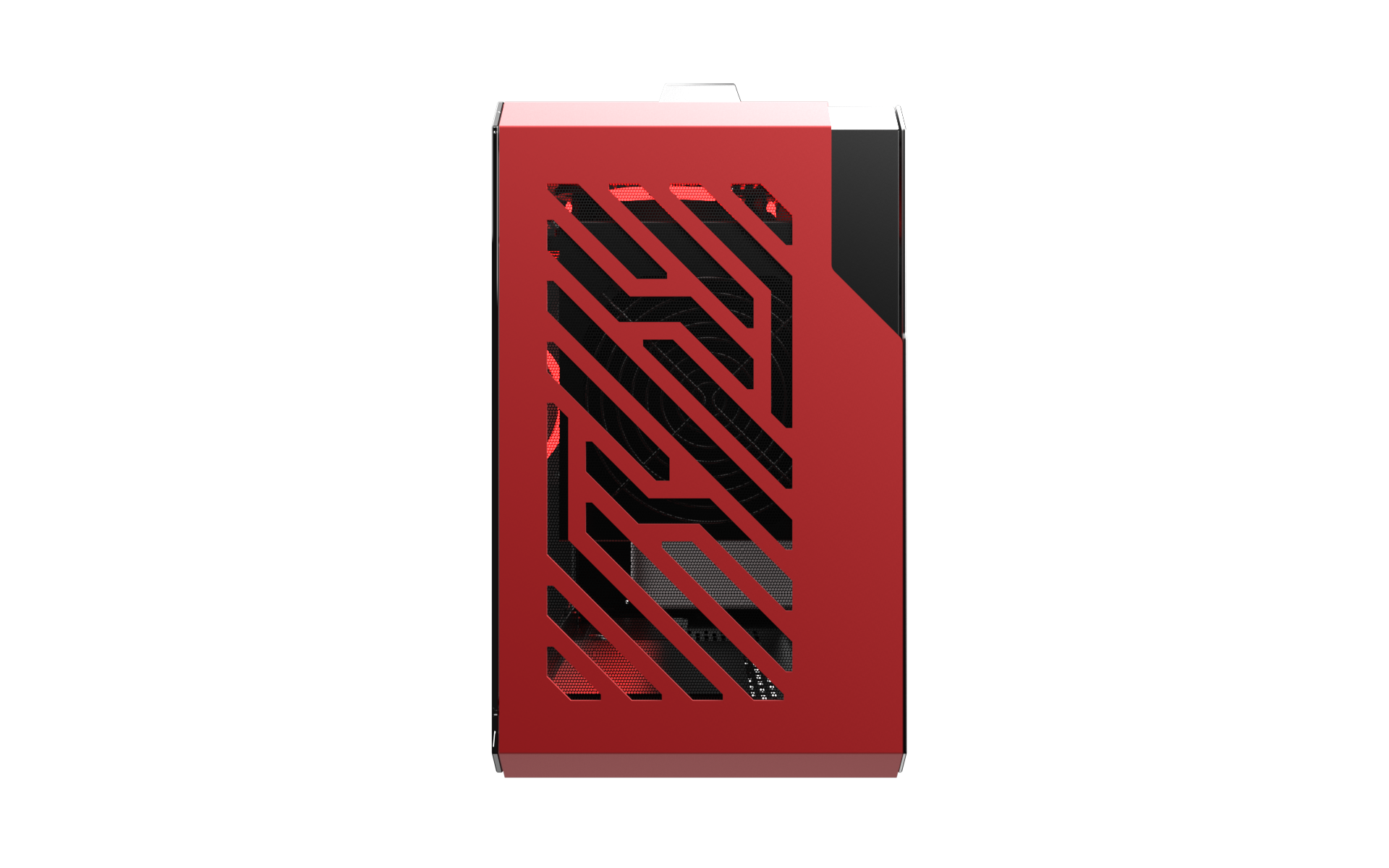

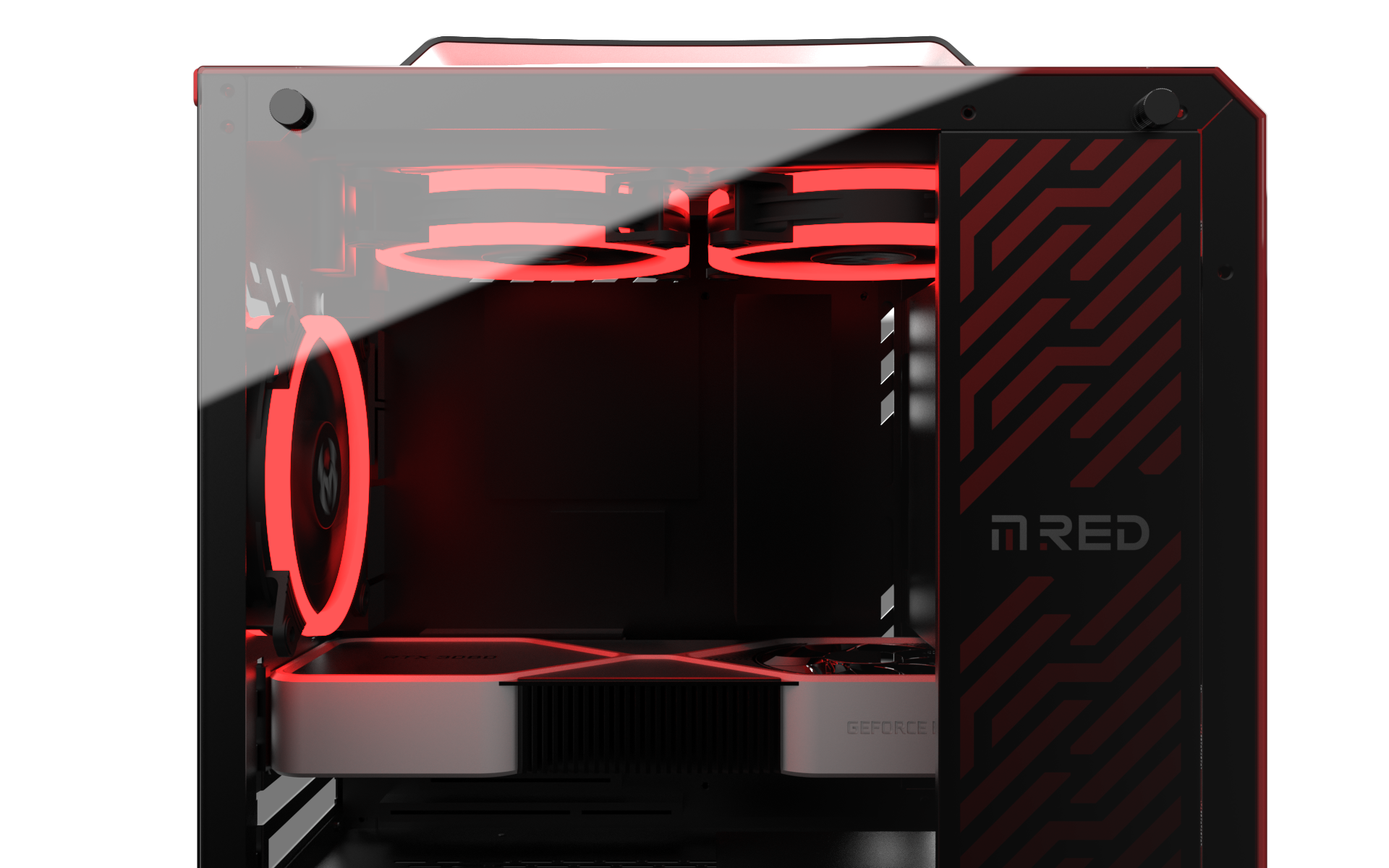

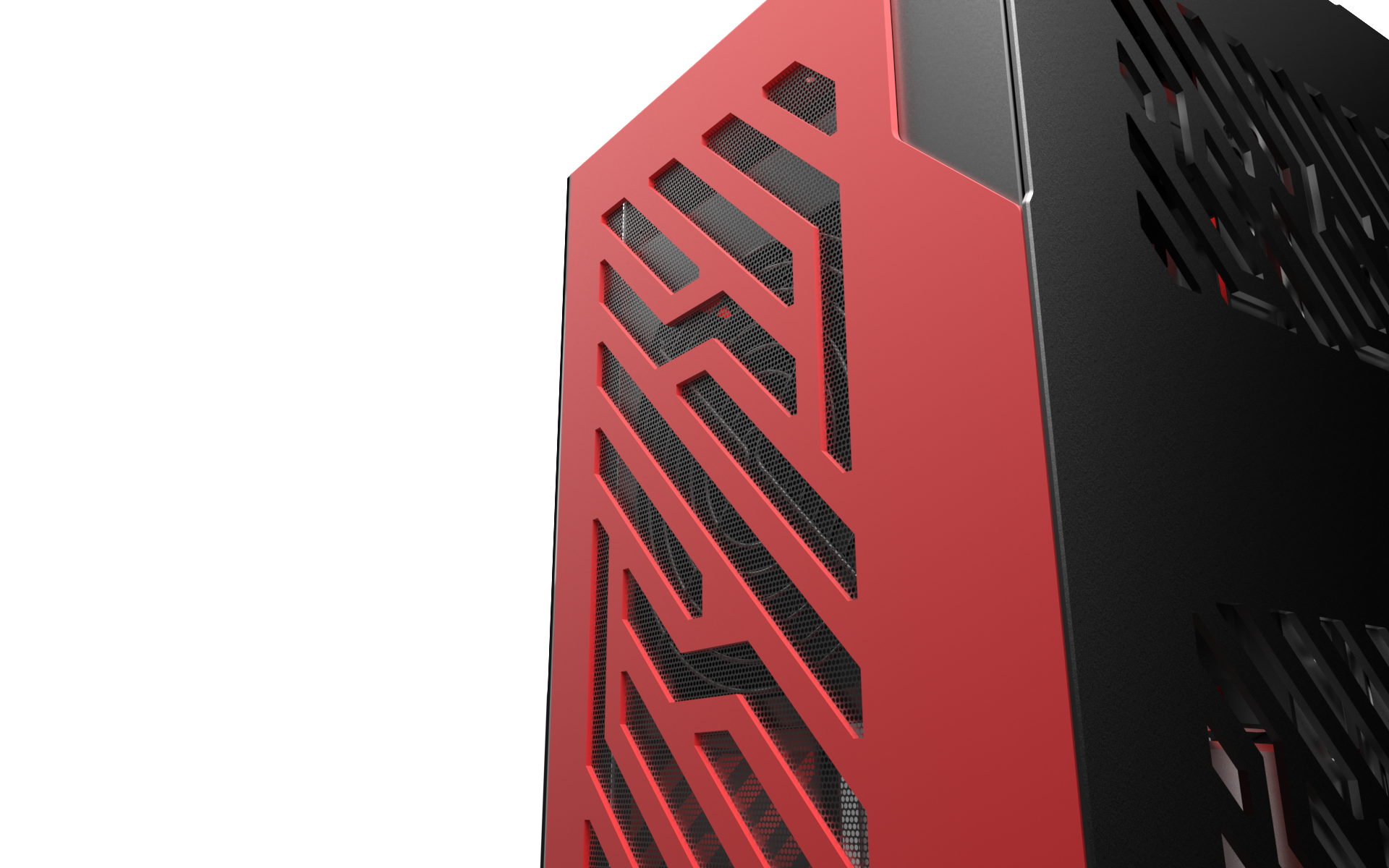

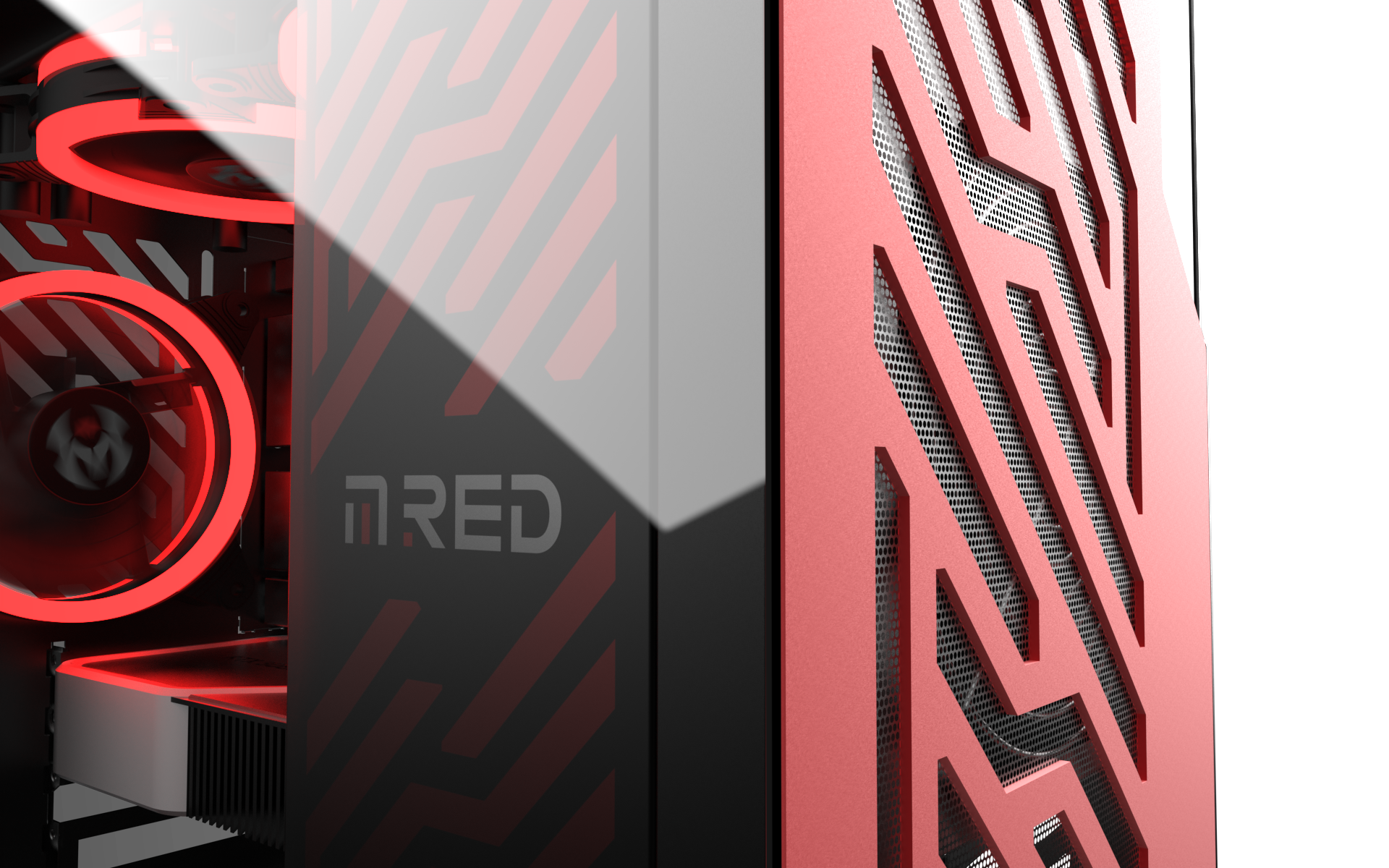

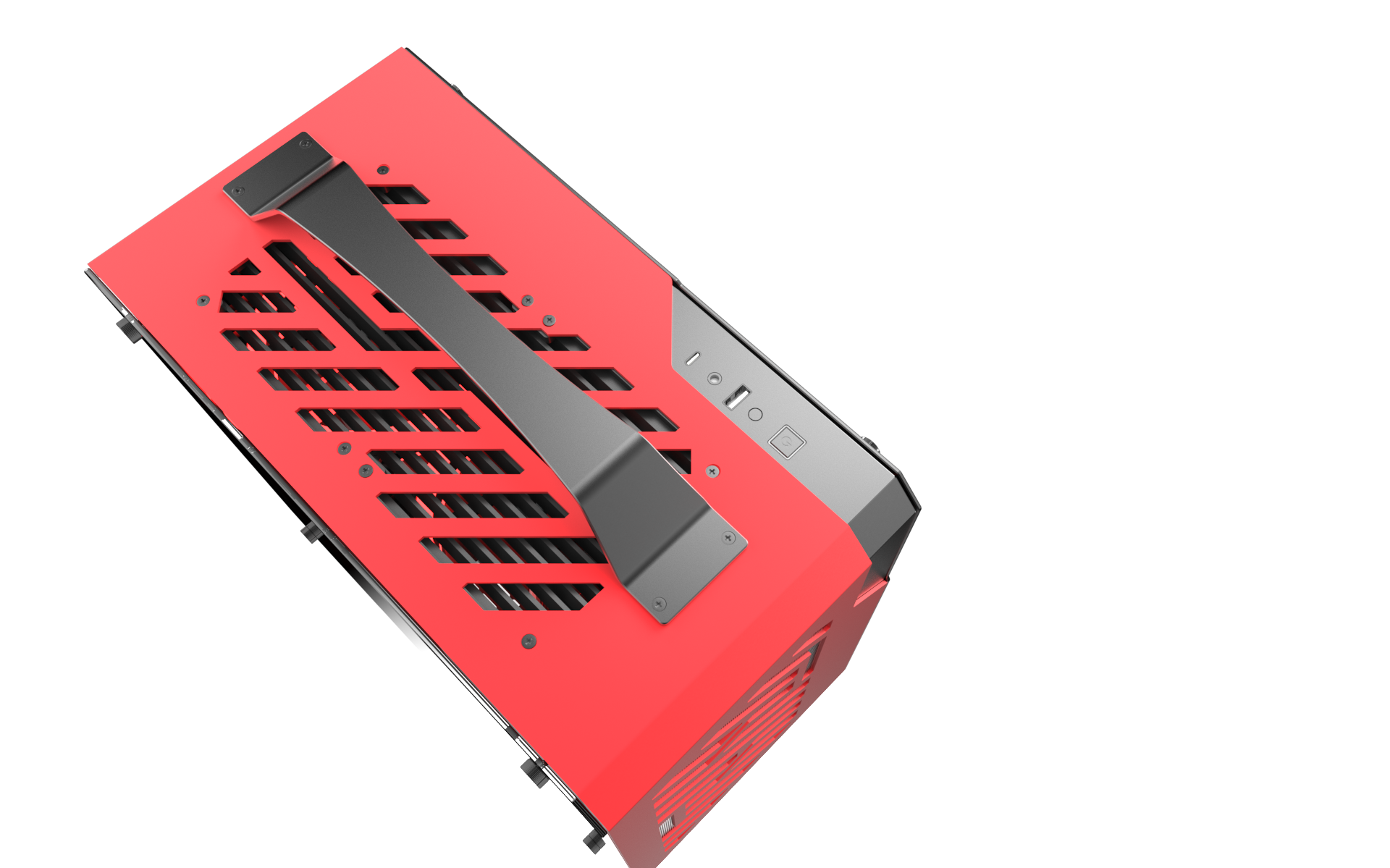

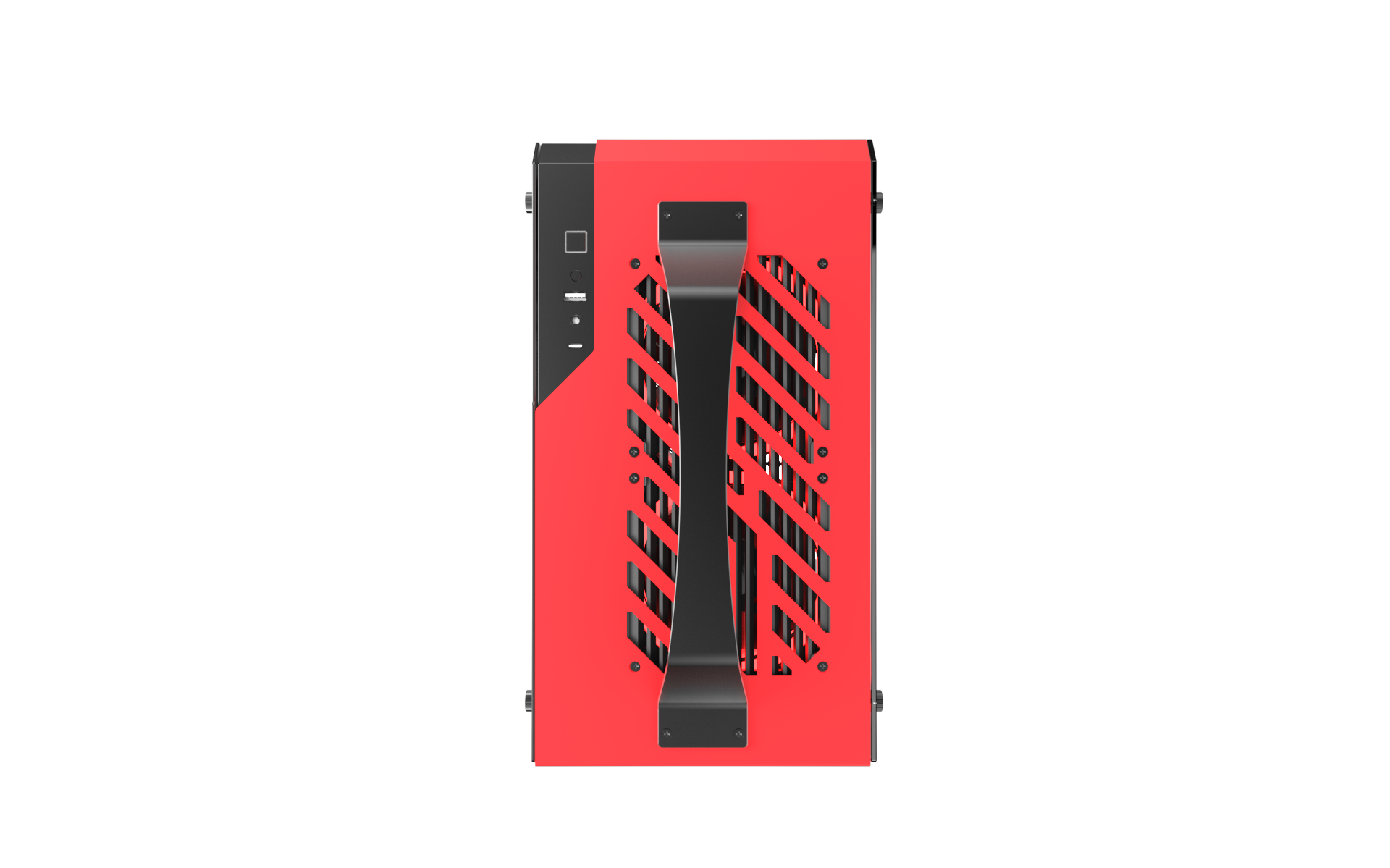

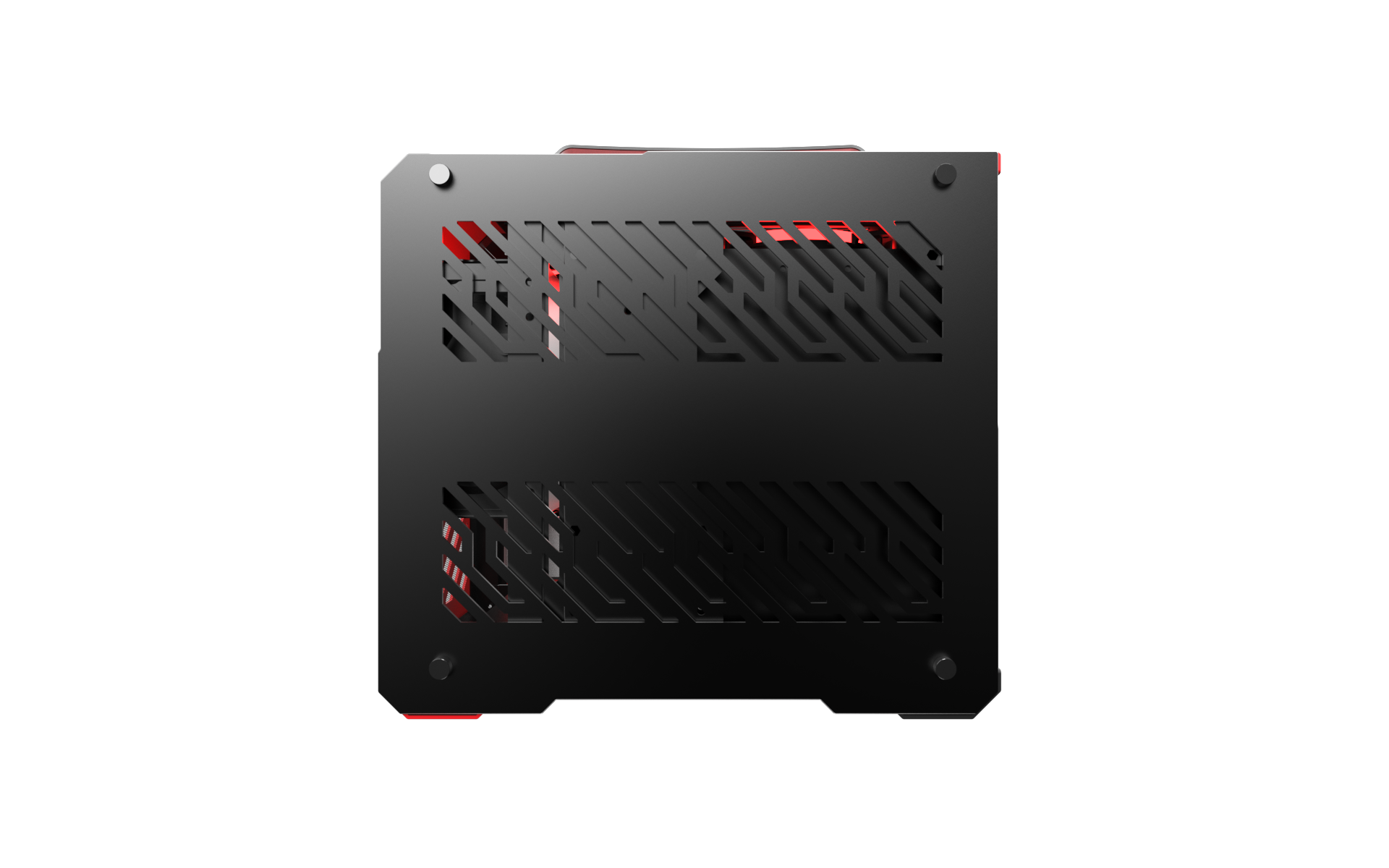

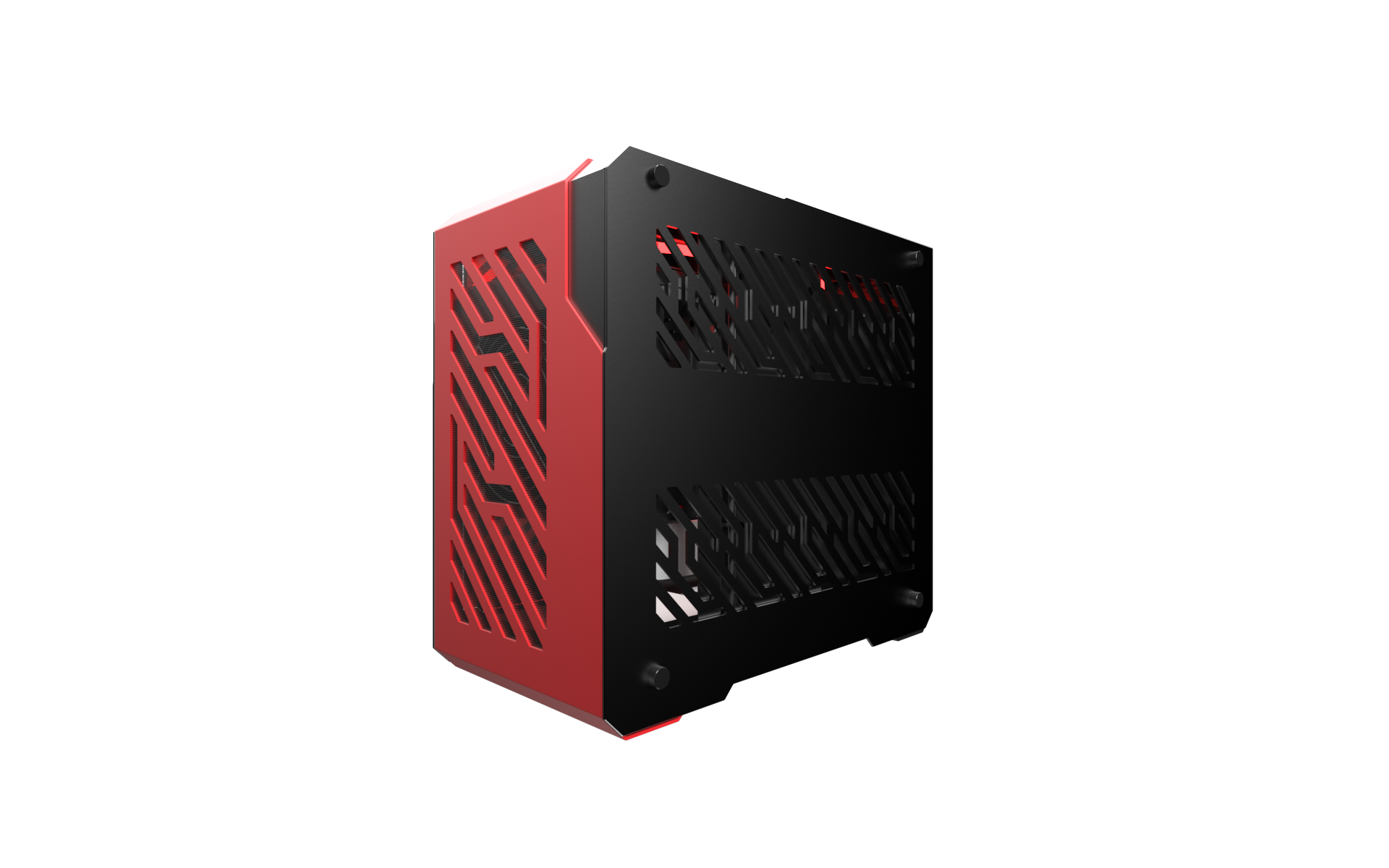

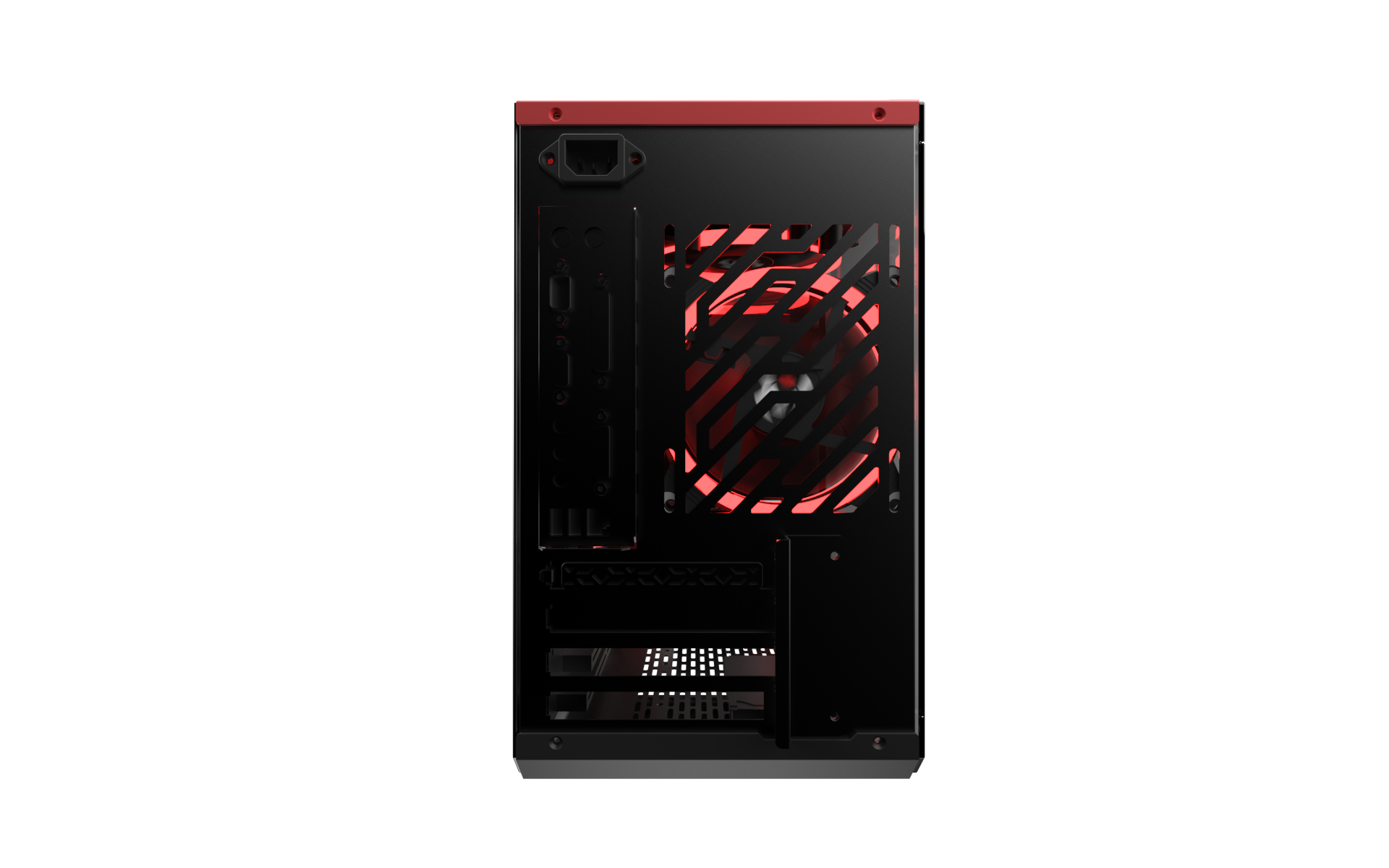

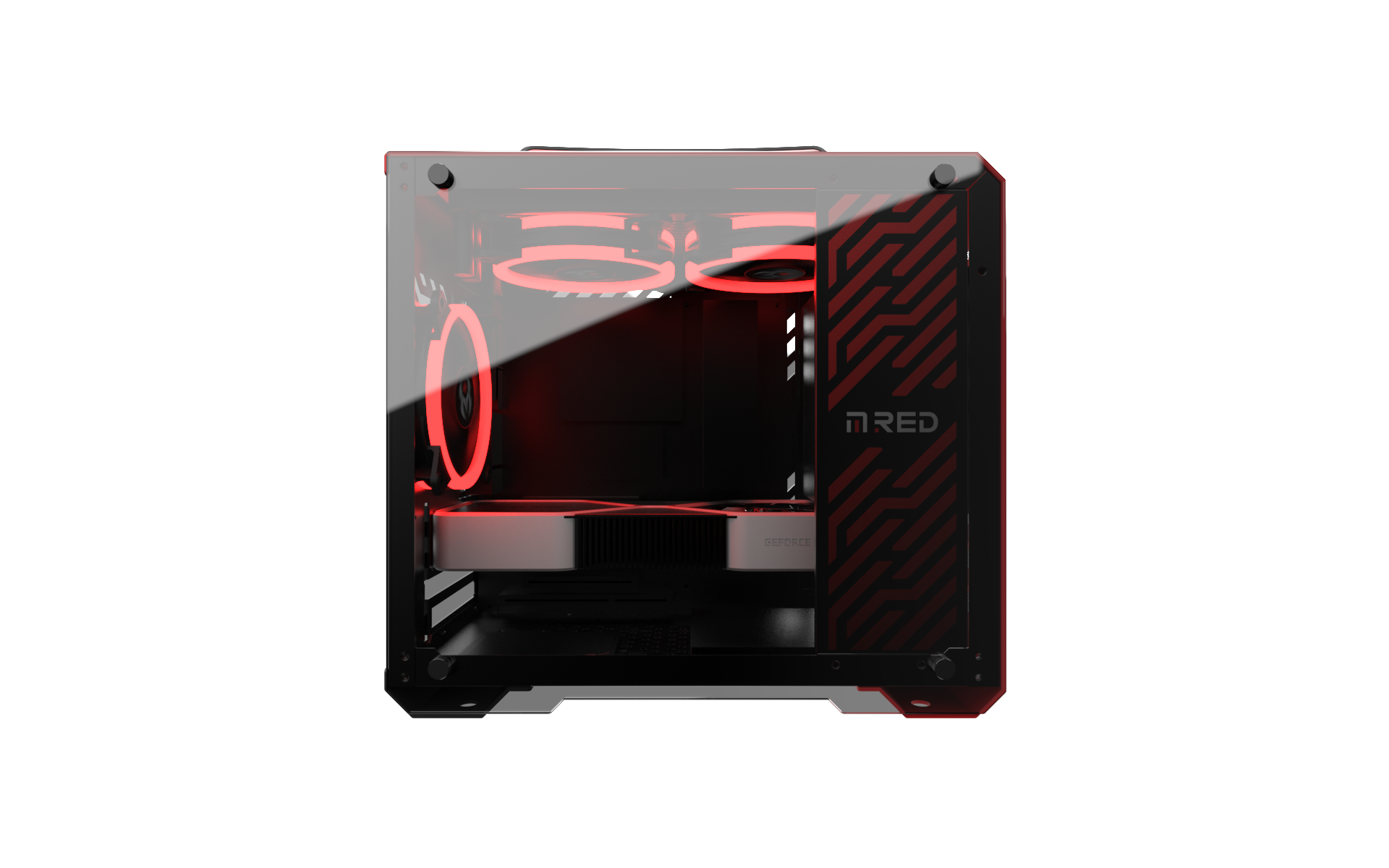

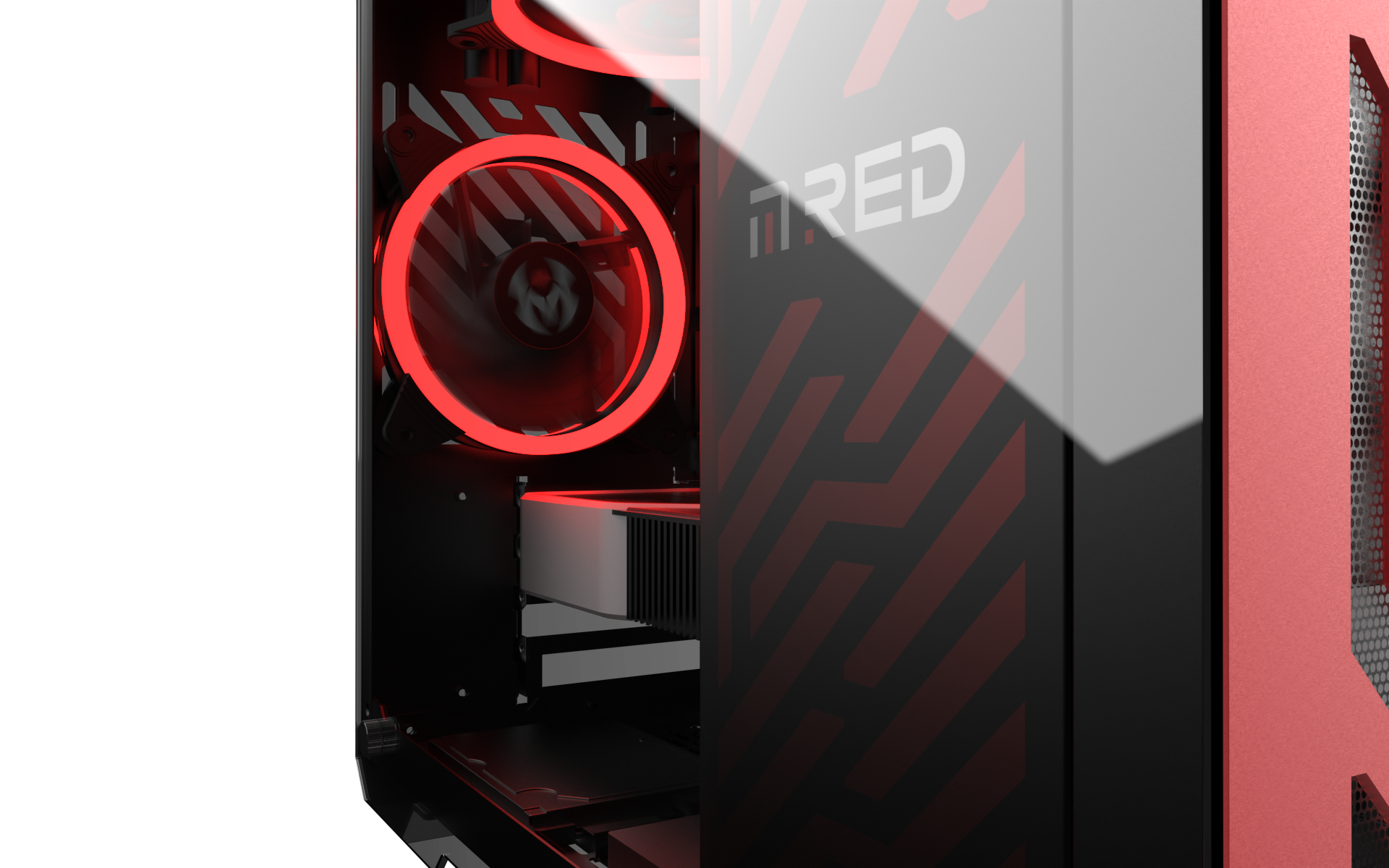

Fire Dragon
Ref.: MR-031EAN: 3700755601046
This product is no longer in the M.RED catalogue. Its specifications and datasheet are kept here for owners.
Tech specs
Datasheet (PDF, English)References1
- Serie Model
- Fire Dragon
Dimensions & Weight10
- Height
- 356 mm
- Width
- 192.5 mm
- Length
- 355 mm
- Net Weight
- 3.8 Kg
- Volume
- 24.33 L
- Box height
- 405 mm
- Box width
- 270 mm
- Box length
- 418 mm
- Gross weight
- 4.5 Kg
- Gross volume
- 45.71 L
Design16
- Usage
- Gaming
- Form Factor
- Mini Tower
- Color
- Black& Red
- Raw Materials
- Steel, Tempered Glass, Aluminium
- Mred Cover
- No
- Window Right Side Panel
- No
- Window Left Side Panel
- Yes
- Window Raw Material
- Tempered Glass
- LED Lights
- No
- Motherboard LED Compatibility Brands
- No
- ARGB Compatibility
- No
- Side Bar LED Qty
- No
- LED Controler
- No
- LED Controler Operation Mode
- No
- Controler IRDA Remote Control
- No
- Front panel wireless connectors
- No
Conception5
- Top Dust Filter
- Yes
- Front Dust Filter
- Yes
- Removable Front Panel
- No
- Replaceable Front Panel
- No
- Removable Right Side Panel
- Yes
Compatibility & Clearance10
- Clearance Max. CPU Cooler
- 165 mm
- Motherboard Support
- 0, M-ATX, Mini-ITX
- Clearance Max. Horizontal Graphic Card
- 330 mm
- Vertical VGA Extension Slots
- No
- Clearance Max. Vertical Graphic Card
- Non
- Thickness Max. carte Vertical Graphic Card
- Non
- Front Fan and Radiator Clearance
- No
- Top Fan and Radiator Clearance
- 27
- Supported PSU Type
- ATX, SFX
- PSU Max Length
- 140 mm
Cooling7
- Pre-Installed Fans - Top
- 2*120mm
- Pre-Installed Fans - Rear
- 1*120mm
- Fan Support - Top
- 2*120
- Fan Support - Bottom
- 1*120
- Fan Support - Rear
- 1*120
- Watercooling System Support
- Yes
- Radiator Support - Top
- 240
Extension slots6
- Horizontal PCI Slot Qty
- 4
- Vertical PCI Slot Qty
- 0
- Horizontal VGA support
- Yes
- 2,5" Drive Bays Qty
- 2
- 3,5" Drive Bays Qty
- 1
- HDD removable rack
- 0
Connectivity7
- Connectors Location
- Top
- USB 2.0
- 0
- USB 3.0
- 1
- USB 3.2 Gen 2 Type-C
- 1
- 3.5mm Headset Jack (Audio+Mic)
- 1
- 3.5mm Headset Jack (Audio)
- 0
- 3.5mm Headset Jack (Mic)
- 0
Warranty & Docs1
- Commercial Warranty
- 2 années
